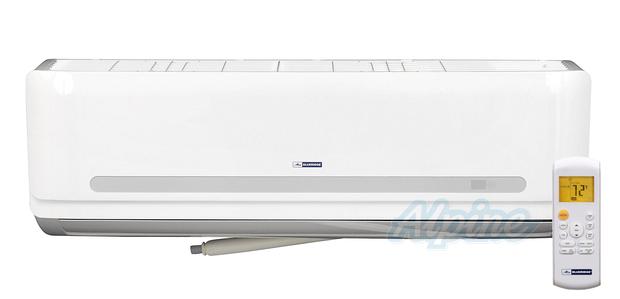

36,000 BTU Single Zone Do It Yourself Wall Mounted Ductless Indoor Air Handler
36,000 BTU Single Zone Do It Yourself Wall Mounted Ductless Indoor Air Handler
Model: Blueridge BM36YDIY16WM
highlights
*NOTE: This product is not a complete system, it is only one component. A complete system requires an indoor air handler, outdoor condenser and connecting line set. Please view complete systems here.
Heat or Cool Any Space,
Simply and Affordably
Simply and Affordably
Surprisingly
Affordable
Affordable
Incredibly
Quiet
Quiet
Great
Reviews
Reviews
Easy to
Install
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
The Blueridge Do-It-Yourself eliminates the most technical, difficult steps from a normal HVAC installation.
No Soldering
No Refrigerant Handling
No Gauges
No Vacuum Pump
Normal HVAC Installation:
Usually, a technician will solder together copper tubing to create a sealed environment for the refrigerant chemicals to circulate. Then, they add nitrogen gas under high pressure to test for leaks. Next, they use a vacuum pump to evacuate all gasses from inside. Only then will they release the refrigerant that will allow the system to function, using gauges to make sure the volume and pressure are correct.
Blueridge Do-It-Yourself:
The Blueridge Do-It-Yourself system uses a different approach to get the same result. You get two separate units - the inside air handler and the outside condenser. The condenser already contains the correct amount of refrigerant. The copper lines included with your Blueridge DIY system, are already under vacuum. They have quick-connect fittings that maintain a vacuum until you’re ready to connect. After you’ve installed the indoor and outdoor units, you screw together the quick-connect fittings, then open the valves to release the refrigerant. It’s that easy.
Benefits
WiFi Control
Included remote with features like Quiet Mode, Turbo Mode, Sleep Mode and Timer. Use app with smartphone or tablet to control the system from wherever you are.
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
You can install a Blueridge Do-It-Yourself mini split without any special training, tools, or equipment thanks to the pre-charged line set that comes included with your system. Simply follow a few easy installation steps to get your mini split working in no time.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BM36YDIY16WM
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
36,000 BTU Single Zone Do It Yourself Wall Mounted Ductless Indoor Air Handler
Optional: WiFi Adapter for Blueridge BM Series Wall Mount and Low Wall Air Handlers
To add this item to your system, please view accessories section below.
Specs
System Information
Single Zone Mini-Split Series
S3 Series: DIY
Indoor Air Handler Type(s)
Wall Mount
Zones
1
Product Type
Mini Split DIY
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
Yes (With Adapter)
Wireless Remote
Included
Efficiency
SEER
16 SEER
Refrigerant Readiness
Primary Refrigerant
R-410A
Mobile Home Compatible
Yes
RDS (Refrigerant Detection System) On-Board
No
Performance
Tonnage
3 Ton(s)
High Output Cool
34500 BTU
High Output Heat
36000 BTU
Airflow Capacity
824 / 588 / 412 CFM
Sound Rating
35 / 45 / 52 Decibels
Air Handler Setpoint Range (Cooling)
62 - 86 °F
Air Handler Setpoint Range (Heating)
32 - 86 °F
Line Set Information
Lineset Compatibility Code
L12
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
5/8 Inches
Line Set Connection Type
Quick Connect
Product Dimensions
Width
49 57/100 Inches
Depth
11 1/10 Inches
Height
14 1/4 Inches
Product Weight
41.01 lbs
Important Measurements
Minimum Unit Clearance (Sides to Wall)
4.75 Inches
Minimum Unit Clearance (Top to Ceiling)
5.9 Inches
Minimum Unit Clearance (Bottom to Floor)
72 Inches
Warranty
Parts Warranty
5 Years
Certifications
AHRI#
202196473
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
No
Accessories
Air Boosters & Specialty Fans
Tjernlund AS1
Room-to-Room Ventilator, 120 VAC Hardwired, 75 CFM
$19999
Condensation Control
Rectorseal SS610E
Safe-T-Switch Electronic Condensate Overflow Switch
$12999
Mini-Split System Accessories
Alpine AHDH20
5/8in Inner Diameter Drain Hose, 20ft Length
$1999
Blueridge BR-CP40S
40L/H Undermount Ductless Mini-Split Condensate Pump
$12999
Rectorseal 97705
Rectorseal 97705 Mighty Bracket
$23999
Blueridge WFWM
WiFi Adapter for Blueridge BM Series - Wifi Capable Wall Mount and Low Wall Air Handlers - Version 2.0
$5999
Mini-Split System Line Sets
Alpine L03-F15
15 Foot 1/4 LL 5/8 SL Ductless Mini-Split Line Set
$14999
Alpine L03-F25
25 Foot 1/4 LL 5/8 SL Ductless Mini-Split Line Set
$18999
Alpine L03-F35
35 Foot 1/4 LL 5/8 SL Ductless Mini-Split Line Set
$27999
Alpine L03-F50
50 Foot 1/4 LL 5/8 SL Ductless Mini-Split Line Set
$35999
Alpine L03-F65
65 Foot 1/4 LL 5/8 SL Ductless Mini-Split Line Set
$46999
Ultraviolet Purifiers & Replacement Parts
DiversiTech TUV-MINI-LED
Mini UV Light LED System for Mini-Splits
$24999
Documents
Blueridge M Series Remote Control Manual(PDF, 301 KB)- Blueridge DIY Single Zone Spec Sheet 2020(PDF, 1.17 MB)
- Blueridge DIY Single Zone User Manual(PDF, 2.10 MB)
- Blueridge AHRI Certificate BM36YDIY16(PDF, 142 KB)
- Blueridge Single Zone DIY Installation Manual(PDF, 1.83 MB)
- Blueridge DIY Installation 12/5/2023(PDF, 3.83 MB)
- Blueridge Ductless Mini-Split Warranty(PDF, 180 KB)
