18,000 BTU (1.5 Ton) 20 SEER - S2 SERIES - 208/230V Single Zone DIY Ductless Mini-Split Heat Pump System - WiFi Capable
18,000 BTU (1.5 Ton) 20 SEER - S2 SERIES - 208/230V Single Zone DIY Ductless Mini-Split Heat Pump System - WiFi Capable
Model: Blueridge BM18DIY20
highlights
Heat or Cool Any Space,
Simply and Affordably
Simply and Affordably
Surprisingly
Affordable
Affordable
Incredibly
Quiet
Quiet
Great
Reviews
Reviews
Easy to
Install
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
The Blueridge Do-It-Yourself eliminates the most technical, difficult steps from a normal HVAC installation.
No Soldering
No Refrigerant Handling
No Gauges
No Vacuum Pump
Normal HVAC Installation:
Usually, a technician will solder together copper tubing to create a sealed environment for the refrigerant chemicals to circulate. Then, they add nitrogen gas under high pressure to test for leaks. Next, they use a vacuum pump to evacuate all gasses from inside. Only then will they release the refrigerant that will allow the system to function, using gauges to make sure the volume and pressure are correct.
Blueridge Do-It-Yourself:
The Blueridge Do-It-Yourself system uses a different approach to get the same result. You get two separate units - the inside air handler and the outside condenser. The condenser already contains the correct amount of refrigerant. The copper lines included with your Blueridge DIY system, are already under vacuum. They have quick-connect fittings that maintain a vacuum until you’re ready to connect. After you’ve installed the indoor and outdoor units, you screw together the quick-connect fittings, then open the valves to release the refrigerant. It’s that easy.
Benefits
WiFi Control
Included remote with features like Quiet Mode, Turbo Mode, Sleep Mode and Timer. Use app with smartphone or tablet to control the system from wherever you are.
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
You can install a Blueridge Do-It-Yourself mini split without any special training, tools, or equipment thanks to the pre-charged line set that comes included with your system. Simply follow a few easy installation steps to get your mini split working in no time.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
Blueridge BM18YDIY20WM Unit Type:
Wall Unit
Wall mounted units mount high on a vertical wall. The
connective hoses and condensation go through the wall
to the outside behind the unit. These are the most
popular design due to the ease of installation and
low cost.
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BM18DIY20
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.

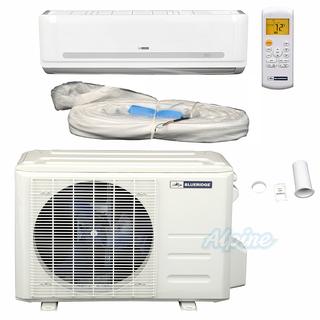

This System Includes*
18,000 BTU 20 SEER Single Zone 208-230V Do It Yourself Ductless Mini Split Outdoor Condenser
18,000 BTU Single Zone Do It Yourself Wall Mounted Ductless Indoor Air Handler
Remote Control with "Follow Me" Feature
*NOTE: Does not include all required components for installation. See required components below in the accessories section to complete your system.
Optional: WiFi Adapter for Blueridge BM Series Wall Mount and Low Wall Air Handlers
To add this item to your system, please view accessories section below.
Also Consider
18,000 BTU (1.5 Ton) 19.5 SEER / 19.5 SEER2 - S2 SERIES - 208/230V Single Zone Ductless Mini-Split Heat Pump KIT 25FT - WiFi Capable
Blueridge BMY1820 KIT25
In Stock
$
1,613
00
Specs
System Information
Mini-Split System Type
Heating / Cooling
Zones
1
Indoor Air Handler Type(s)
Wall Mount
Single Zone Mini-Split Series
S2 Series: Standard & DIY
Product Type
Mini Split DIY
Refrigerant Compatibility
R-410A
Features
WIFI (2.4GHz)
Yes (With Adapter)
Efficiency
Coefficient of Performance (at 47 F)
3.66 COP
Energy Efficiency Ratio
12.5 EER
Energy Efficiency Ratio 2
12.5 EER2
SEER
20.0 SEER
SEER2
19.8 SEER2
Heating Seasonal Performance Factor
10.0 HSPF
Heating Seasonal Performance Factor 2
9.6 HSPF2
Performance
Ambient Temperature Range (Cooling)
122 / 5 °F
Ambient Temperature Range (Heating)
-4 / 86 °F
Low Ambient Cooling
Yes
Base Heating Capacity
18000 BTU
Airflow Capacity
510 / 383 / 320 CFM
Total Cooling Capacity
1.5 Ton(s)
Maximum Heating Capacity
18000 BTU
Base Cooling Capacity
18000 BTU
Lowest Ambient Temperature (Heating)
-4 °F
Maximum Cooling Capacity
18000 BTU
Compressor Type
Inverter
Cooling Tonnage
1.5 Tons
Sound Rating, Indoor
31 / 37.5 / 45 Decibels
Sound Rating, Outdoor
58.5 Decibels
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
15 Amps
Maximum Fuse/Breaker
20 Amps
Voltage
208 - 230 Volts
Line Set Information
Maximum Line Length per Zone
25 Feet
Maximum Height Difference
25 Feet
Precharged Line Set Length
25 Feet
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
1/2 Inches
Line Set Connection Type
Quick Connect
Product Dimensions
Indoor Air Handler Size, W x H x D
42.52 x 13.19 x 8.90 Inches
Outdoor Condenser Size, W x H x D
33.27 x 27.64 x 14.29 Inches
Indoor Air Handler Weight
30.20 Lbs
Outdoor Condenser Weight
98.77 Lbs
Footprint Mounting Holes (W x D)
21.26 x 13.8 Inches
Warranty
Compressor Warranty
7 Years
Parts Warranty
5 Years
Certifications
AHRI#
206905348
Qualifies for Govt. Money
North US: Up to $2,000 / South US: Up to $2,000
ENERGY STAR® ID
2449003
ENERGY STAR® Certified
Yes
Accessories
Enjoy free shipping on any accessories purchased with the Blueridge BM18DIY20.
Required Components for Installation
Alpine AG-DCT
Safety Non-Fused Electrical Disconnect
$2199
Alpine AG-WHP10
1/2 x 48 Inches, #10 Gauge Electrical Whip
$2499
Alpine AHDH20
5/8in Inner Diameter Drain Hose, 20ft Length
$1999
Blueridge BY650
Blueridge Adjustable Wall Bracket w/ 25.5 inch long arms for Ductless Mini Splits, 440 lbs Capacity
$5999
Alpine KIT27
Complete Installation Supplies Kit for Blueridge Do-It-Yourself System with Condenser Pad
$12199
DiversiTech 230-MB17CW
(2-Pack) 17" Mounting Blocks with End Caps for Ductless Mini-Split Air Conditioner and Heat Pump Condensers
$4400
Air Boosters & Specialty Fans
Tjernlund AS1
Room-to-Room Ventilator, 120 VAC Hardwired, 75 CFM
$17499
Condensation Control
Rectorseal SS610E
Safe-T-Switch Electronic Condensate Overflow Switch
$11999
Mini-Split System Accessories
Blueridge BY-30
Adjustable Steel Wall Bracket for w/ 30 inch long arms Ductless Mini Splits, 660 lbs Capacity
$7999
Mersen STXH240S05
STXH240S05 Type 1 50kA 240/120V Split Phase Surge Protector
$9999
Rectorseal 97705
Rectorseal 97705 Mighty Bracket
$19499
Blueridge WFWM
WiFi Adapter for Blueridge BM Series - Wifi Capable Wall Mount and Low Wall Air Handlers - Version 2.0
$5999
Outdoor Line Set Covers
Blueridge BCZ-130
Blueridge 90-Degree Corner (for Blueridge BGG130 Line Set Cover KIT)
$999
Blueridge BDD-130
Blueridge 48" Straight Channel For Blueridge BGG130 Line Set Cover KIT
$2499
Blueridge BGQ-130
Blueridge Wall Connection Piece (for Blueridge BGG130 Line Set Cover KIT)
$999
Blueridge BPW-130
Blueridge Plane Corner (Flat bend) For Blueridge BGG130 Line Set Cover KIT
$999
Blueridge BRG-130
Blueridge Flex Joint For Blueridge BGG130 Line Set Cover KIT
$1699
Blueridge BZL-130
Blueridge Coupler For Blueridge BGG130 Line Set Cover KIT
$999
Blueridge BGG130
Blueridge Line Set Cover Kit BGG130
$7999
DiversiTech 230-EIN3
90° Outside Elbow for Diversitech 3" SpeediChannel™ Line Set Covers
$1599
DiversiTech 230-CP3
Coupling for Diversitech 3" SpeediChannel™ Line Set Covers
$999
DiversiTech 230-D3 1M
39" Long, 3" SpeediChannel™ Line Set Cover for DiversiTech
$2999
DiversiTech 230-DC3
End Cap for Diversitech 3" SpeediChannel™ Line Set Covers
$1099
DiversiTech 230-DCLIP-10
(10-Pack) SpeediClips™ for DiversiTech Line Set Covers
$1199
DiversiTech 230-DE3
End Fitting for Diversitech 3" SpeediChannel™ Line Set Covers
$1099
DiversiTech 230-EB3
90° Inside Elbow for Diversitech 3" SpeediChannel™ Line Set Covers
$1599
DiversiTech 230-FB3
90° Flat Bend for Diversitech 3" SpeediChannel™ Line Set Covers
$1899
DiversiTech 230-FB453
45° Flat Bend for Diversitech 3" SpeediChannel™ Line Set Covers
$1799
DiversiTech 230-FJ3
Flex Joint for Diversitech 3" SpeediChannel™ Line Set Covers
$1599
DiversiTech 230-FR3
Flat Wall Escutcheon for Diversitech 3" SpeediChannel™ Line Set Covers
$899
DiversiTech 230-LFB3
90° Long Bend for Diversitech 3" SpeediChannel™ Line Set Covers
$2499
DiversiTech 230-SF3
3" Soffit Fitting for DiversiTech SpeediChannel™ Line Set Covers
$2599
DiversiTech 230-WC3
Wall Connection Piece for Diversitech 3" SpeediChannel™ Line Set Covers
$2699
DiversiTech 230-WR3
Non-Flat Wall Escutcheon for Diversitech 3" SpeediChannel™ Line Set Covers
$1099
Tools
DiversiTech 358-20
Foam-Plus™ Foaming Condenser Coil Cleaner - 19 oz. Aerosol
$999
Ultraviolet Purifiers & Replacement Parts
DiversiTech TUV-MINI-LED
Mini UV Light LED System for Mini-Splits
$24999
Documents
Blueridge M Series Remote Control Manual(PDF, 301 KB)- Blueridge DIY Single Zone Spec Sheet 2020(PDF, 1.17 MB)
- Blueridge DIY Single Zone User Manual(PDF, 2.10 MB)
- Blueridge BM18DIY20 AHRI Certificate(PDF, 142 KB)
- Blueridge Single Zone DIY Installation Manual(PDF, 1.83 MB)
- BLUERIDGE BM18YDIY20C Energy Star Cert 2449003(PDF, 18.7 KB)
- Blueridge Ductless Mini-Split Warranty(PDF, 180 KB)
