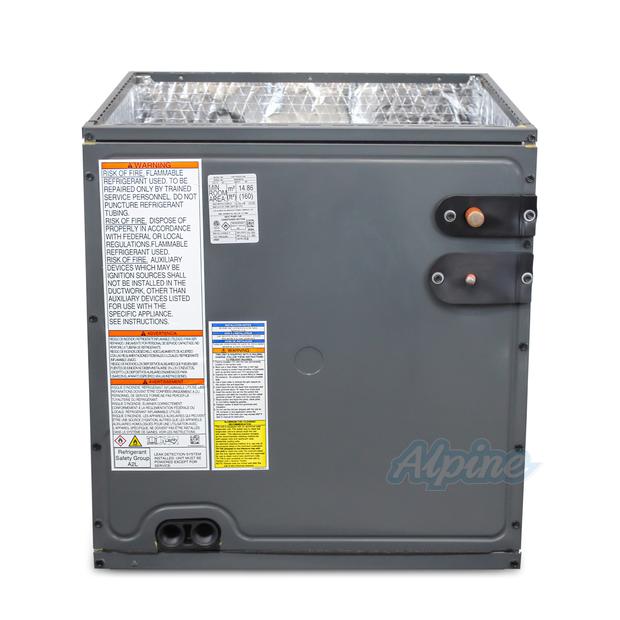

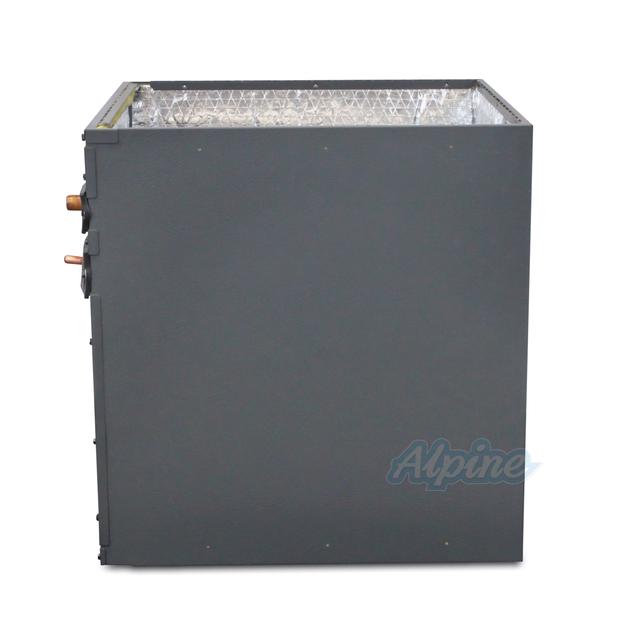

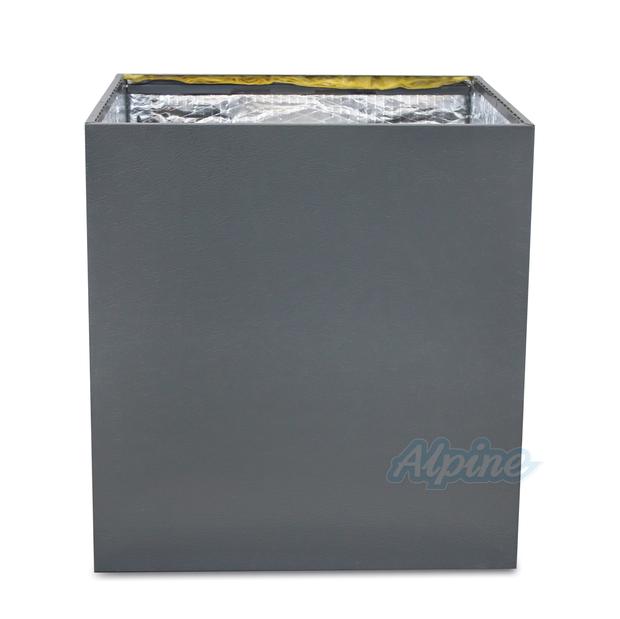

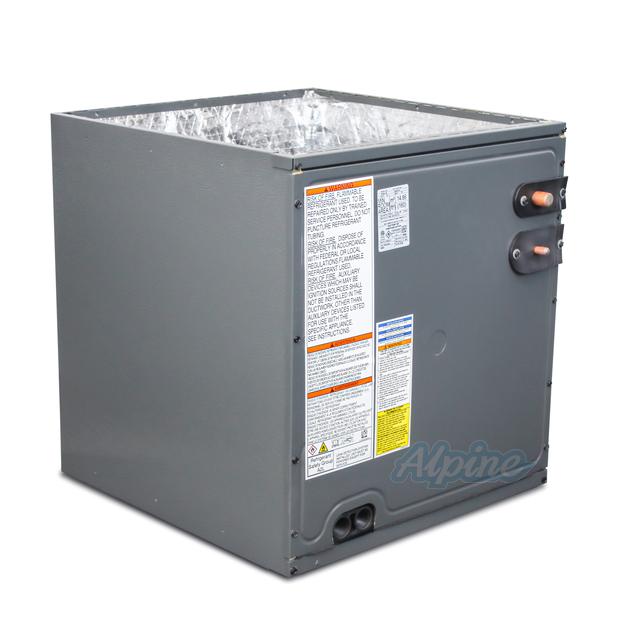

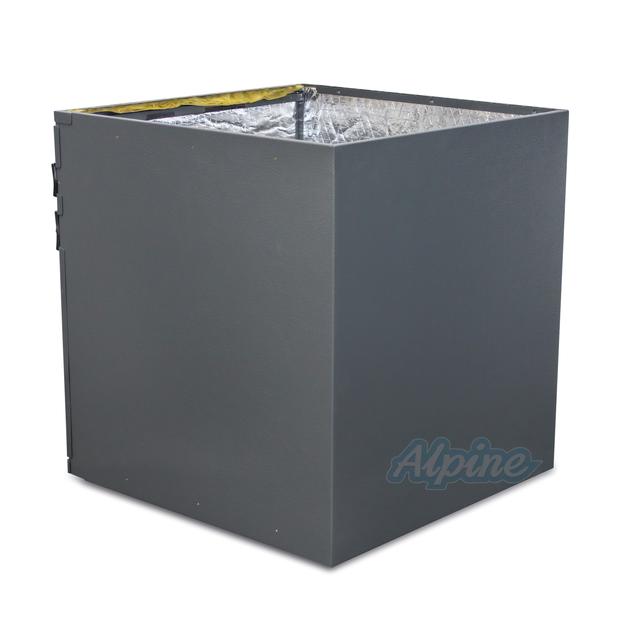

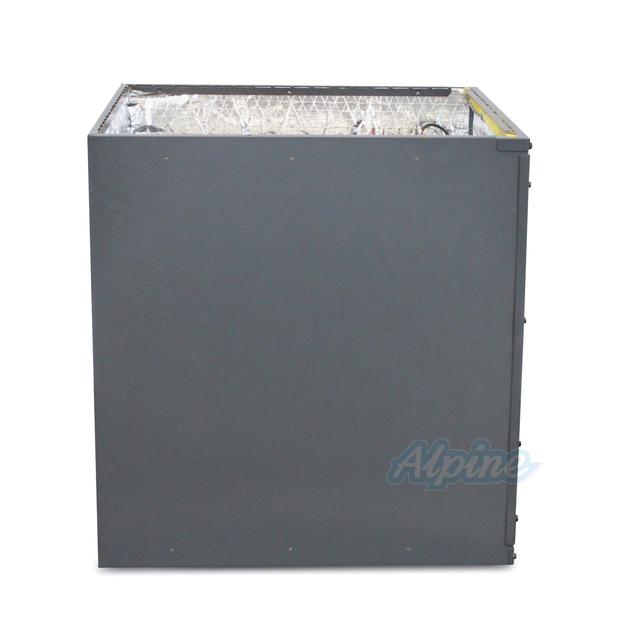

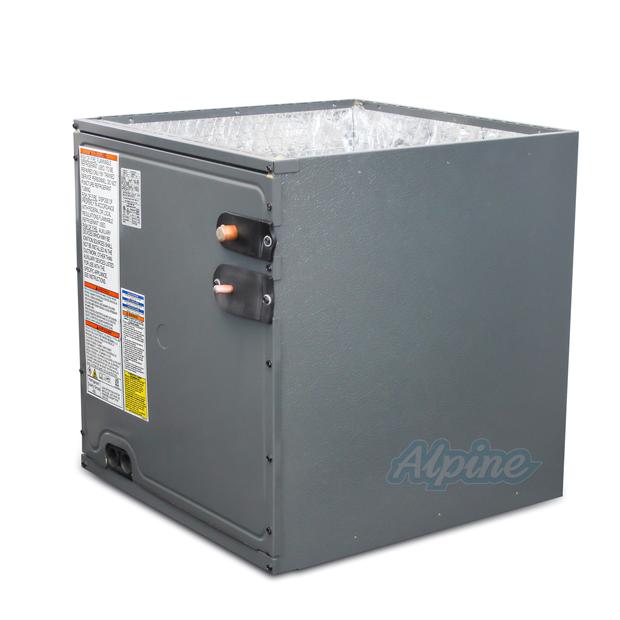

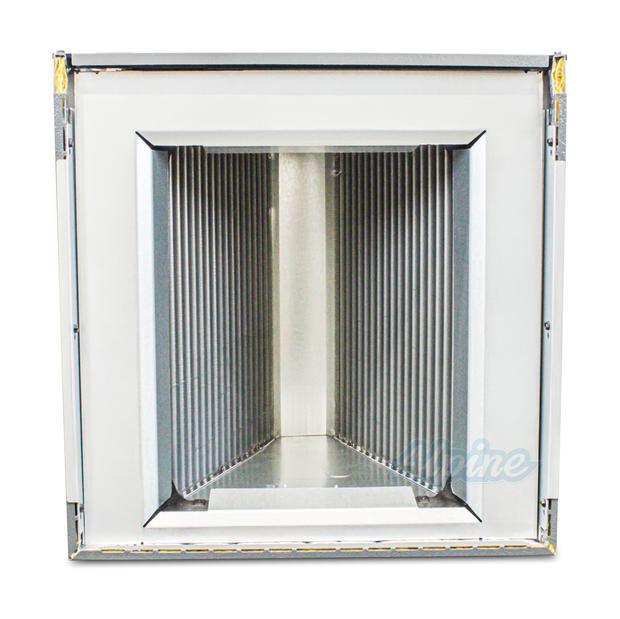

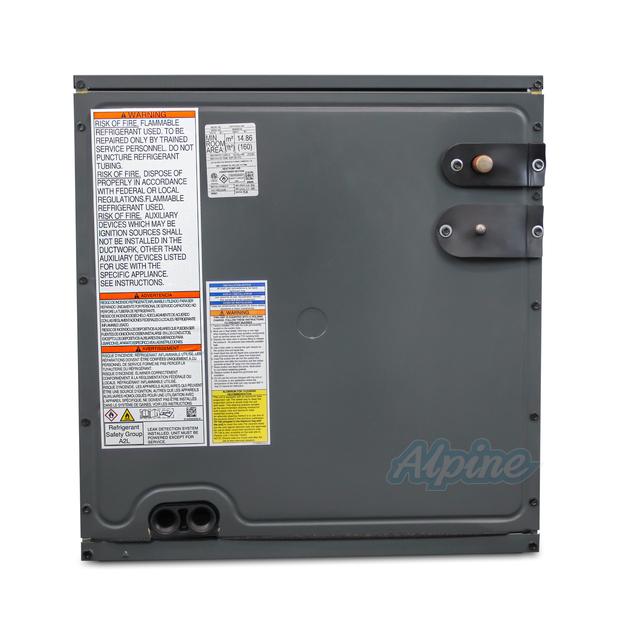

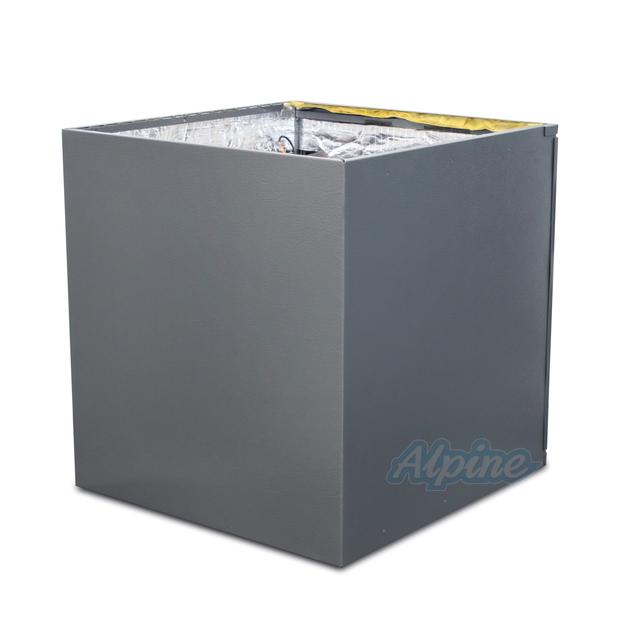

2 Ton, W 21 x H 22 x D 21, Painted Cased Evaporator Coil with TXV, R-32 Refrigerant
2 Ton, W 21 x H 22 x D 21, Painted Cased Evaporator Coil with TXV, R-32 Refrigerant
New Item!
Model: Goodman CAPTA2422C3
- + 5 More
Model: Goodman CAPTA2422C3
$75400
View Discounted Price In Cart
Qty:
In Stock and Ready to Ship
Add On
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
Services
- Contractor Referral Assistance (Not Installation Service) (Learn More)
highlights

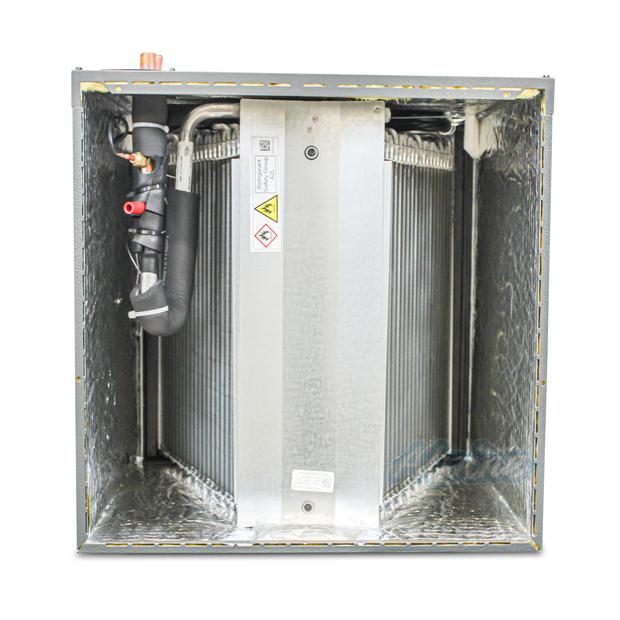

The Goodman® CAPTA Cased Upflow/Downflow Indoor Evaporator Coils with TXV are made for split system air conditioners and heat pumps. Each coil comes with a TXV factory installed. This coil is designed to work with R-32 refrigerant systems.
For tips for selecting matched components and line sets click here.
Standard Features
- All-aluminum evaporator coil
- Optimized for use with R-32 refrigerant
- R-32 sensor designed for the lifespan of the coil
- Factory-installed thermostatic expansion valve (TXV)
- Standardized copper suction tube stub length
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified; ETL listed
Also Consider
2 Ton, W 17.5 x H 22 x D 21, Painted Cased Evaporator Coil with TXV, R-32 Refrigerant
Goodman CAPTA2422B3
In Stock
$
736
00
Specs
System Information
Configuration
Downflow / Upflow
Product Type
Evaporator Coil
Features
TXV Built-in
TXV
Refrigerant Readiness
Primary Refrigerant
R-32
Mobile Home Compatible
No
RDS (Refrigerant Detection System) On-Board
No
R-32 RDS Board
Goodman 0230K00044
Refrigerant Metering Device
TXV
Metering Device Refrigerant Compatibility
R-32
Performance
Tonnage
2 Ton(s)
High Output Cool
24000 BTU
Line Set Information
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Product Dimensions
Cabinet/Chassis Size
C
Width
21 Inches
Depth
21 Inches
Height
22 Inches
Product Weight
43 lbs
Shipping Weight
43 lbs
Compatibility
Cross-Brand Compatibility: R-410A Air Conditioner
No
Cross-Brand Compatibility: R-32 Air Conditioner
Yes
Cross-Brand Compatibility: R-454B Air Conditioner
No
Cross-Brand Compatibility: R-410A Heat Pump
No
Cross-Brand Compatibility: R-32 Heat Pump
Yes
Cross-Brand Compatibility: R-454B Heat Pump
No
Cross-Brand Compatibility: Modular Blower
Yes
Cross-Brand Compatibility: Forced Air Furnace
Yes
Important Measurements
Plenum Opening Width
20 inches
Certifications
Qualified Manufacturer ID (QMID)
I7Q6
Accessories
Condensation Control
DiversiTech ULTRACP-22
ULTRACP-22 Condensate Pump, 22 ft. Lift, 120V
$8499
DiversiTech ULTRACP-22T
ULTRACP-22 Condensate Pump, 22 ft. Lift, 120V, Includes 20 ft. of Tubing
$8999
Rectorseal SS2
Safe-T-Switch® Secondary Drain Line Switch
$3499
Rectorseal SS1
Safe-T-Switch® Primary and Secondary Drain Line Switch
$3999
Duct Sealant
DiversiTech 800-008
Pro-Air Duct Sealant - 1/10 Gallon Tube - 10.5 oz.
$999
DiversiTech 800-009
Pro-Air Duct Sealant - 1 Gallon Pail
$4999
Hardcast CCWI-181
Duct Sealant - 1 Gallon (Gray)
$3999
Furnace Installation Kits
Goodman 0230K00044
Furnace Integration Kit For R-32 Refrigerant Systems
$14999
Supply Air Plenums
Alpine PLN122
Supply Plenum 20 x 20 x 30 Inches
$12999
Tools
DiversiTech 358-20
Foam-Plus™ Foaming Condenser Coil Cleaner - 19 oz. Aerosol
$999
DiversiTech 640-UL25
DiversiTech 640-UL25 Foil Tape
$3699
Documents
Wire Gauge Sizes(PDF, 40.9 KB)- Goodman Evaporator Coil Warranty(PDF, 541 KB)
- Goodman R-32 Evaporator Coil Spec Sheet(PDF, 2.40 MB)
