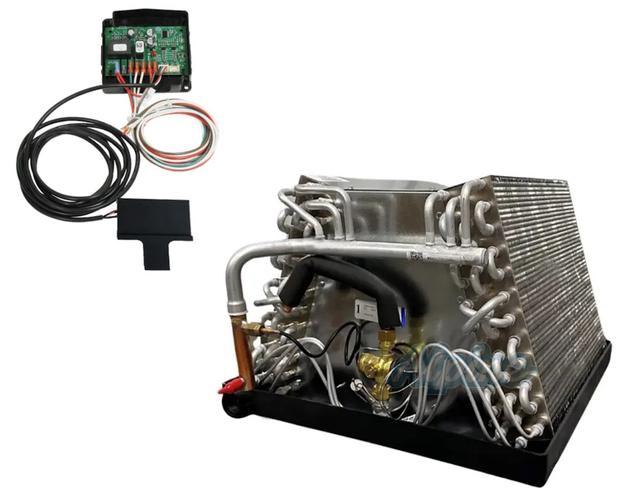

This System Includes*

Aspen DM59A4D-177L-000 x1

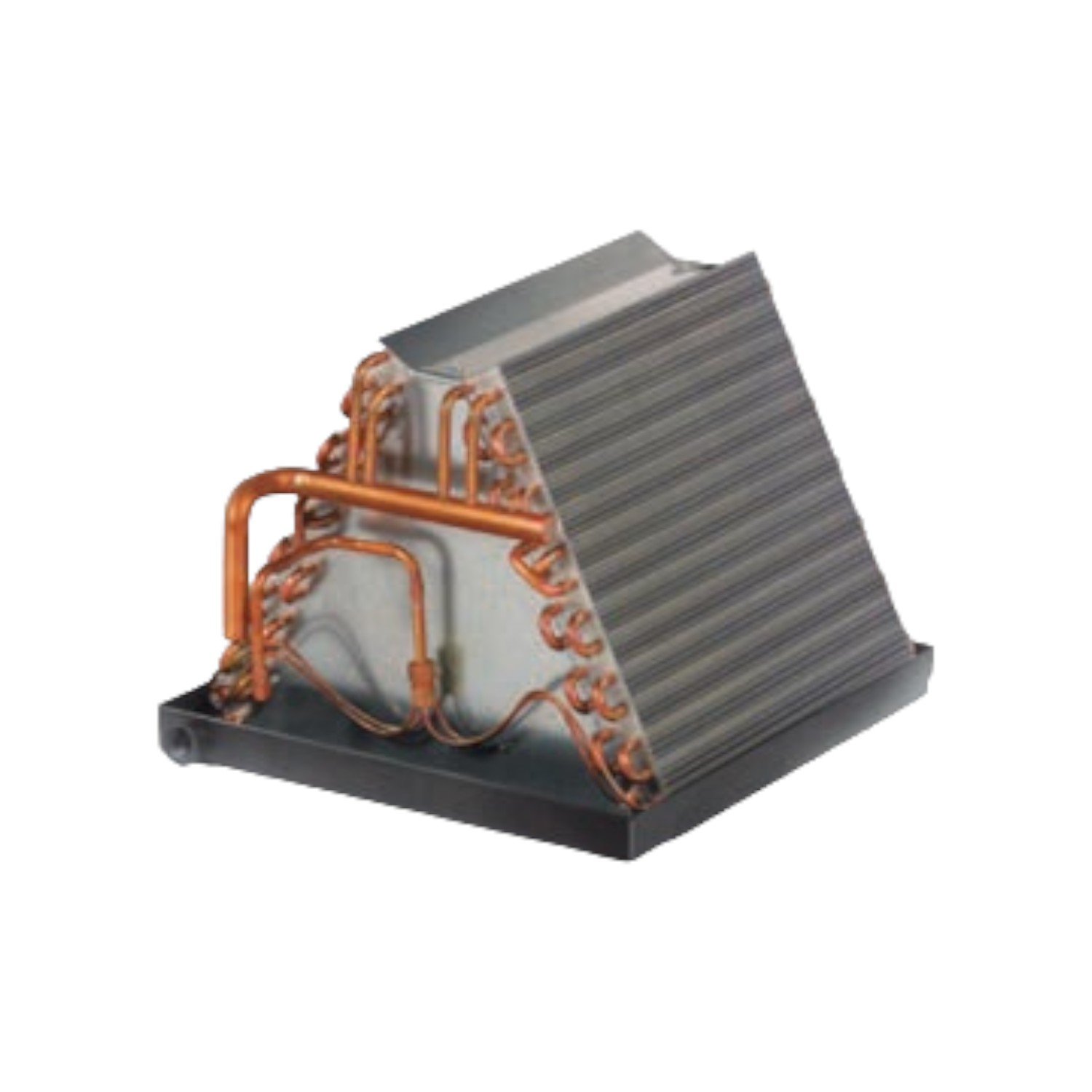

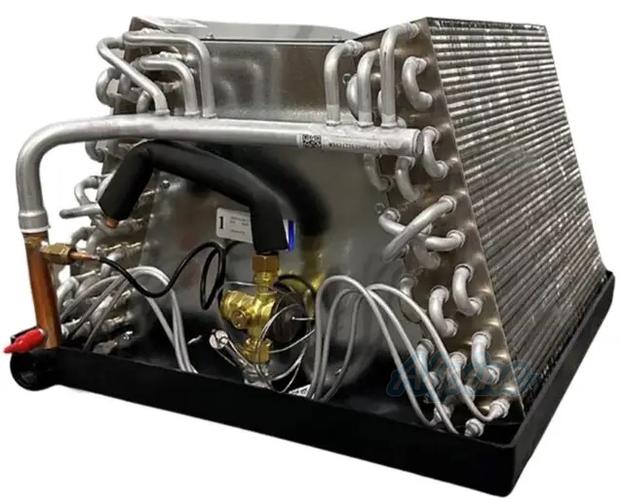

5 Ton Mobile Home Uncased Evaporator Coil R-32 Refrigerant
Aspen A2L3SA x1
A2L RDS KIT, R32, STANDARD, A

Key Benefits & Specs

• Efficient cooling: Durable aluminum tubes and finely crafted fins help your system cool more effectively.
• Built-in TXV: Factory-installed thermostatic expansion valve optimizes refrigerant flow for peak efficiency and comfort.
• Reliability you can trust: Every coil is pressure-tested, helium leak-checked, then sealed with nitrogen to ensure it's 100% leak-free.
• Hassle-free installation: Left-side refrigerant and plumbing hookups—plus a downward-facing suction line—make fitting this coil into mobile homes quick and easy.
• Downflow ready: Comes complete with downflow plates and a drain hose designed specifically for manufactured-home applications.
• Easy maintenance checks: A built-in Schrader valve lets technicians confirm coil pressure in seconds.
• Durable drain pan: Heavy-duty polypropylene pan handles condensate reliably and won't corrode.
• Standard hookup: Single ¾″ left-hand drain fitting for straightforward connection.
• Universal compatibility: AHRI-certified to pair with any brand of A/C or heat pump.
• Refrigerant-safe: ETL-listed for use with the newer, eco-friendly R32 refrigerant.
• 10-year peace of mind: Backed by a up to 10-year limited warranty.

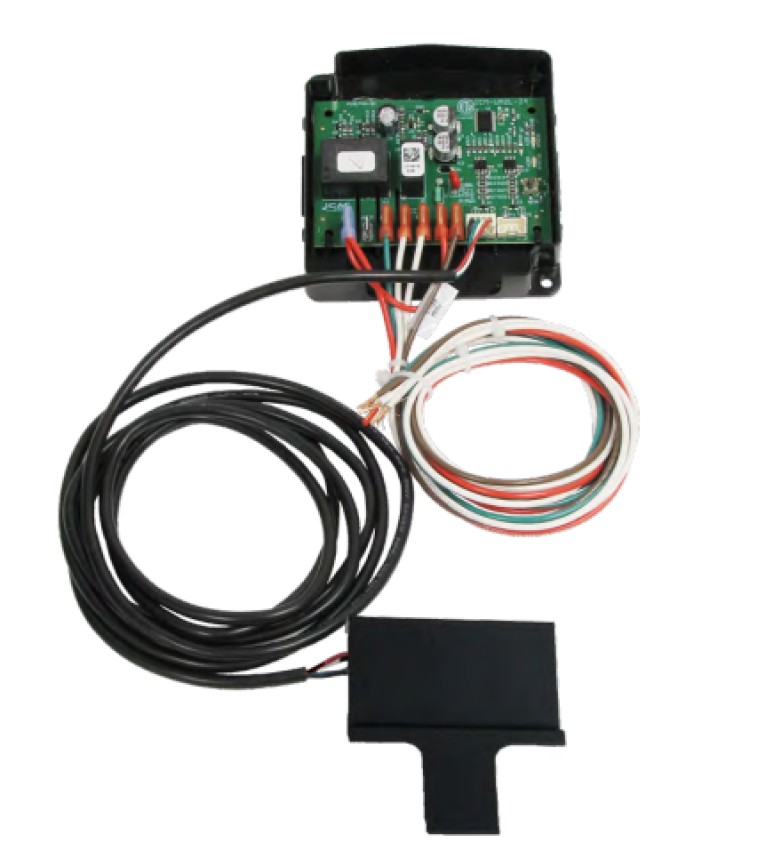

Aspen RDS Kit Features

• Complete kit: Kit includes all components needed for RDS installation.
• Extended sensor wire: Sensor wire length of 8 feet, and mitigation board power wire length 3 feet.
• Flexible installation: Flexible installation location, ideal for installs on existing equipment.
• Long-lasting design: System designed to last the useful life of the evaporator coil.

Aspen RDS Kit Specifications

• Safety certified: The refrigerant detection kit has been designed and tested to meet UL60335-2-40 4th edition safety standard.
• Specialized sensors: Refrigerant detection sensors have been designed, tested, and calibrated specifically for R32. Sensors have a 15+ year lifetime with no calibration required.
• Standard mitigation control: Turns on indoor blower to dissipate refrigerant concentration and cuts power to outdoor unit to stop new refrigerant from entering the space.
• Simple wiring: The kit utilizes the thermostat 24V wiring of the system.
• Field-mounted flexibility: The kit is field mounted to give installation flexibility on replacements applications.
• Everything included: All components needed for installation, including labels, wiring diagrams, cable/wire harnesses, and instructions, are included in the kit.
