New 60,000 BTU 15.2 SEER2 Ultra Efficient Ducted Air Handler Unit & SND 60,000 BTU 15.2 SEER2 Ultra Efficient Ducted Outdoor Condenser
New 60,000 BTU 15.2 SEER2 Ultra Efficient Ducted Air Handler Unit & SND 60,000 BTU 15.2 SEER2 Ultra Efficient Ducted Outdoor Condenser
New Item!
Model: Blueridge BNG2A60SCN-BNGFA60DH2 SND-KIT 2
Model: Blueridge BNG2A60SCN-BNGFA60DH2 SND-KIT 2
Inverter-driven: lower bills, steadier temps
Works with your existing ductwork
Heat pump and AC-only options, 1.5 to 5 tons
5-year parts warranty
$4,250.00
In stock
Or as low as
Qty:
In Stock and Ready to Ship
Includes
Services
- Contractor Referral Assistance (Not Installation Service) (Learn More)
Save money with this Blueridge Scratch 'N Dent Kit! This AHRI-matched bundle includes a Blueridge BNG2A60SCN 60,000 BTU 15.2 SEER2 Standard Heat Inverter Heat Pump AHU Outdoor Condenser, along with a Blueridge BNGFA60DH2 60,000 BTU 15.2 SEER2 Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-454B, 220V, NG3 Series, WiFi. Because both items have sustained cosmetic shipping / warehouse damage, we have greatly discounted this package, resulting in substantial SAVINGS for you!

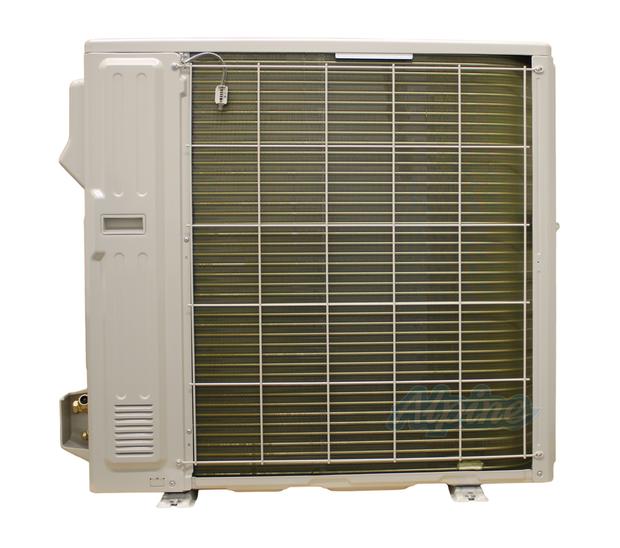

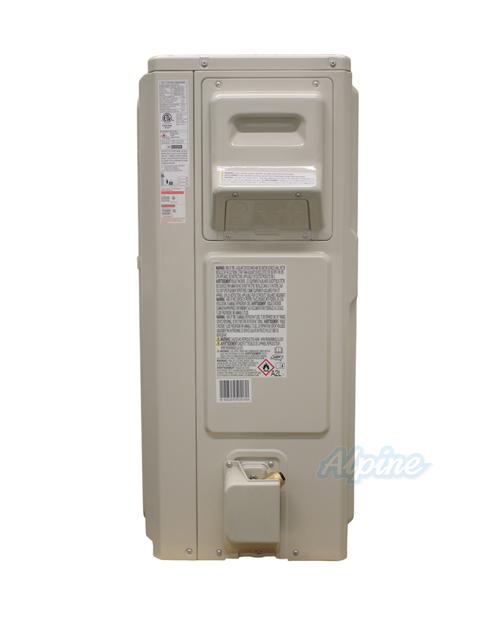

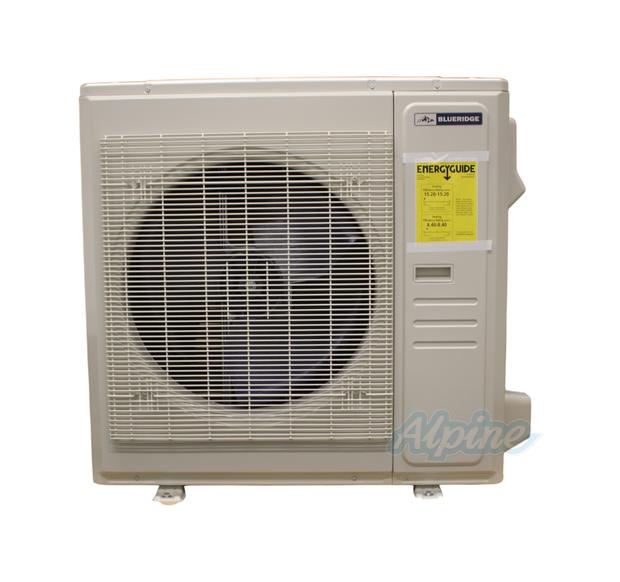

SND (BNG2A60SCN) 60,000 BTU 15.2 SEER2 Standard Heat Inverter Heat Pump AHU Outdoor Condenser

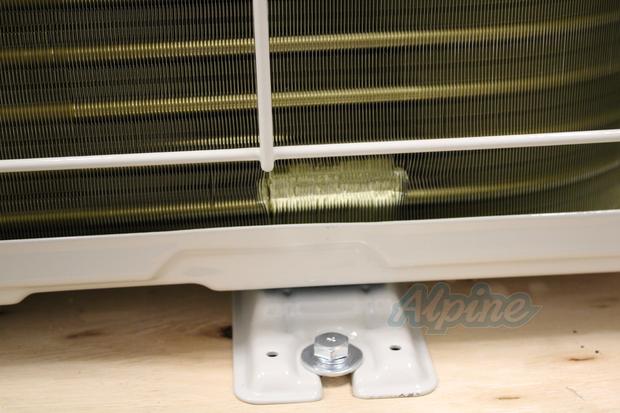

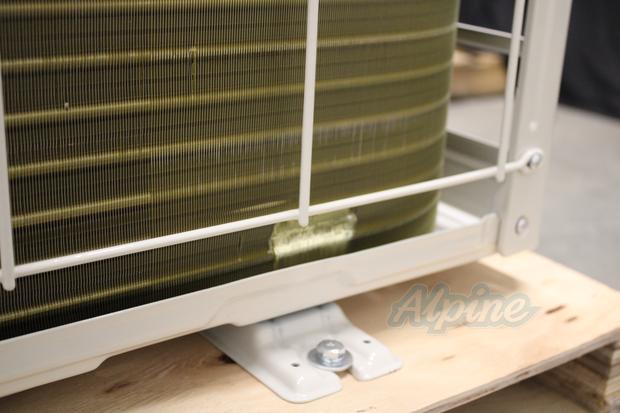

Unit has dents to the back left bottom of the clapboard. Also a little coil damage on the back right bottom.
New (BNGFA60DH2) 60,000 BTU 15.2 SEER2 Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-454B, 220V, NG3 Series, WiFi
Brand New
For new construction, or if you are replacing your entire old split system, take a look at our Accessories page to add the appropriate length line sets, electrical connections, and other parts to make your installation a breeze.
Click the links below to check each components' specifications and documentation.
This system includes:
|
|
| SND BNG2A60SCN |
| 60,000 BTU 15.2 SEER2 Standard Heat Inverter Heat Pump AHU Outdoor Condenser |
|
|
| NEW BNGFA60DH2 |
| 60,000 BTU 15.2 SEER2 Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-454B, 220V, NG3 Series, WiFi |
System Information
Configuration
Downflow / Horizontal / Upflow
Mini-Split System Type
Heating / Cooling
Next Gen Series
NG2: Core
Indoor Air Handler Type(s)
24 V AHU
Zones
1
Connection Type
Flare
Fuel Type
Electricity
System Type
Heat Pump and Air Handler
Product Type
Split-System Bundle
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
Yes (With Wifi Capable Thermostat)
Efficiency
SEER2
15.2 SEER2
EER2
8.6 EER2
HSPF2
8.4 HSPF2
Coefficient of Performance at 5° F
1.8
Coefficient of Performance (at 47 F)
3.37 COP
Refrigerant Readiness
Primary Refrigerant
R-454B
Factory Precharge
25 Feet
Mobile Home Compatible
No
Performance
Tonnage
5 Ton(s)
Low Output Cool
21000 BTU
Low Output Heat
26000 BTU
High Output Cool
54000 BTU
High Output Heat
49000 BTU
Electric Heat Capabilities (Optional)
10 / 15 / 20 / 25 Kilowatts
Stages of Heat
Inverter
Stages of Cool
Inverter
Compressor Type
Inverter
Sound Rating, Indoor
34.5 / 49 / 52 / 56 Decibels
Sound Rating, Outdoor
65 Decibels
Ambient Temperature Range (Cooling)
-13 / 122 °F
Ambient Temperature Range (Heating)
-13 / 75 °F
Low Ambient Cooling
Yes
Lowest Ambient Temperature (Heating)
-13 °F
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
39 Amps
Maximum Fuse/Breaker
40 Amps
Air Handler Breaker Size
15 Amps
Line Set Information
Lineset Compatibility Code
L05
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Maximum Line Length per Zone
246 Feet
Maximum Height Difference
98.4 Feet
Product Dimensions
Cabinet/Chassis Size
D
Indoor Air Handler Size, W x H x D
24.49 x 52.99 x 21.02 Inches
Outdoor Condenser Size, W x H x D
38.58 x 38.39 x 16.34 Inches
Footprint Mounting Holes (W x D)
24.25 x 15.61 Inches
Outdoor Condenser Weight
192.9 Lbs
Indoor Air Handler Weight
162.92 Lbs
Pad Size
24x36 Inches
Important Measurements
Return Air Opening Size
22.12 w x 18.75 d inches
Supply Air Opening Size
22.62 w x 10.25 d Inches
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
AHRI#
216997503
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® ID
3996807
ENERGY STAR® Certified
Yes
Qualified Manufacturer ID (QMID)
R4M0
Enjoy free shipping on any accessories purchased with the Blueridge BNG2A60SCN-BNGFA60DH2 SND-KIT 2.
