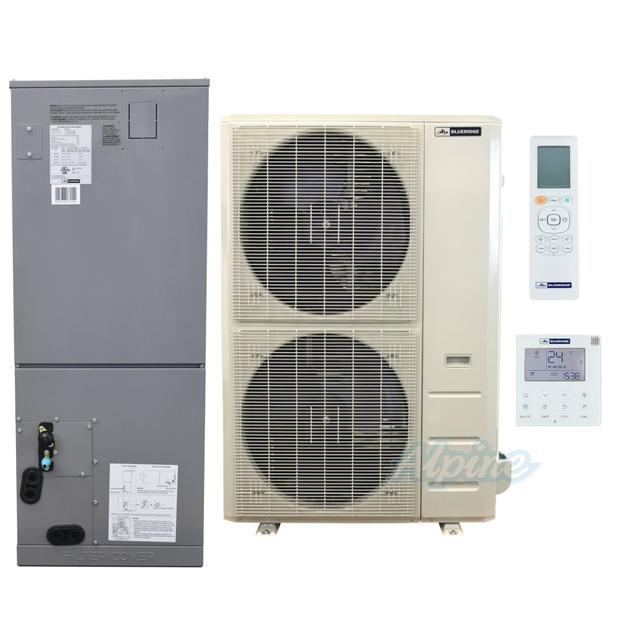

36,000 BTU 18 SEER Ultra Efficient Ducted Heat Pump/Air Handler System

36,000 BTU 18 SEER Ultra Efficient Ducted Heat Pump/Air Handler System

Model: Blueridge BMAH3618

highlights

The Blueridge Hyper Heat 36,000 BTU 18 SEER Ultra Efficient Ducted Heat Pump/Air Handler System is a high performing, versatile, and simple heating and cooling product. This is a heat pump that can cool better than most air conditioners, heat better than virtually any other heat pump, compete with traditional furnaces in cold weather, and reduce energy consumption thanks to its sophisticated internal controls. It even comes with new technology that makes HVAC installation faster and simpler than a traditional heat pump.

These models are designed to run consistently at low output levels to maintain optimal temperatures in your space but can ramp up their output as needed. This type of operation also enhances airflow through your structure, greatly improves efficiency, optimizes air filtration (especially if paired with a media or electronic air cleaner), and does a better job dehumidifying when in cooling mode than nearly any other type of cooling system.

When the system is on, even if there isn't a call for heating or cooling, the fan will continuously run at a low level to to mix the air and sense the conditions in your space. It then communicates that information with the outdoor unit. This communication allows the system to adjust its output as needed which optimizes the efficiency and comfort delivered!







System Features


Inverter Compressor
Designed to run only as hard as needed to maintain optimal temperatures in your space while minimizing electrical consumption.

Variable Speed Blower
Provides even air distribution throughout your home to optimize comfort.

Energy Efficient
Experience the right airflow volume in each space with a unit that automatically adjusts based on the ducting length.

Quiet Operation
Create more peaceful, comfortable spaces with ultra-quiet operation that reduces noise pollution.

Hyper Heat Technology
Heat pump designed to operate at outdoor temperatures as low as -22 ºF, out performing most convential systems.

Easy & Flexible Installation
Install the unit vertically or horizontally for multi-directional air flow possibilities and increased flexibility.

Third-Party Thermostat Compatibility
Experience seamless integration — without extra kits — with a built-in 24V interface that’s compatible with third-party thermostats.


This System Includes*




Blueridge BMAH3618C x1
36,000 BTU 18 SEER Hyper Heat Inverter Outdoor Condenser





Blueridge BMAH3618I x1
36,000 BTU 18 SEER  Air Handler Unit






Blueridge 17317000A63536 x1
Remote controller





Blueridge 17317100006495 x1
Wired controller





Also Consider
Specs
System Information
Configuration
Downflow / Horizontal / Upflow
Indoor Air Handler Type(s)
24 V AHU
Zones
1
Fuel Type
Electricity
System Type
Heat Pump and Air Handler
Features
WIFI (2.4GHz)
Yes (With Wifi Capable Thermostat)
Efficiency
SEER2
16 SEER2
SEER
18 SEER
EER2
10 EER2
EER
10.5 EER
HSPF2
9.5 HSPF2
HSPF
10.5 HSPF
Coefficient of Performance at 5° F
2
Coefficient of Performance (at 47 F)
3.45 COP
Refrigerant Readiness
Primary Refrigerant
R-410A
Factory Precharge
25 Feet
Performance
Tonnage
3 Ton(s)
High Output Cool
36000 BTU
High Output Heat
40000 BTU
Electric Heat Capabilities (Optional)
10 / 15 / 20 / 5 / 8 Kilowatts
Compressor Type
Inverter
Sound Rating, Indoor
41.3 / 44 / 46.8 Decibels
Sound Rating, Outdoor
64 Decibels
Ambient Temperature Range (Cooling)
122 / 5 °F
Ambient Temperature Range (Heating)
-22 / 75 °F
Low Ambient Cooling
Yes
Lowest Ambient Temperature (Heating)
-22 °F
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
41 Amps
Maximum Fuse/Breaker
15 / 50 Amps
Line Set Information
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Maximum Line Length per Zone
213 Feet
Maximum Height Difference
98 Feet
Product Dimensions
Cabinet/Chassis Size
C
Indoor Air Handler Size, W x H x D
21.02 x 49.02 x 21.02 Inches
Outdoor Condenser Size, W x H x D
37.48 x 52.48 x 16.34 Inches
Footprint Mounting Holes (W x D)
25 x 15.9 Inches
Outdoor Condenser Weight
227.07 Lbs
Indoor Air Handler Weight
129.19 Lbs
Pad Size
24x36 Inches
Important Measurements
Return Air Opening Size
18.75 w x 19 d inches
Supply Air Opening Size
19 5/16 w x 10 1/4 d Inches
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
AHRI#
208101245
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
No
Qualified Manufacturer ID (QMID)
R4M0
Accessories

Enjoy free shipping on any accessories purchased with the Blueridge BMAH3618.
