60,000 BTU 16 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System

60,000 BTU 16 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System

Model: Blueridge BNG3A60UCN-60DH

  • Thumbnail of Blueridge BNG3A60UCN-60DH 60,000 BTU 16 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System 60294
  • Thumbnail of Blueridge BNG3A60UCN-60DH 60,000 BTU 16 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System 47772
  • Thumbnail of Blueridge BNG3A60UCN-60DH 60,000 BTU 16 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System 60108
  • Thumbnail of Blueridge BNG3A60UCN-60DH 60,000 BTU 16 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System 60116
  • Thumbnail of Blueridge BNG3A60UCN-60DH 60,000 BTU 16 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System 60117
  • Thumbnail of Blueridge BNG3A60UCN-60DH 60,000 BTU 16 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System 47773
  • + 7 More
    Thumbnail of Blueridge BNG3A60UCN-60DH 60,000 BTU 16 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System 47774

Model: Blueridge BNG3A60UCN-60DH

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

$5,22900
Or as low as

Qty:

Only 3 left in stock

checkmark icon
In Stock and Ready to Ship
highlights

The Blueridge 60,000 BTU 16 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System is a high performing, versatile, and simple heating and cooling products available from the industry today. This is a heat pump that can cool better than most air conditioners, heat better than virtually any other heat pump, compete with traditional furnaces in cold weather, and reduce energy consumption thanks to its sophisticated internal controls. It even comes with new technology that makes HVAC installation faster and simpler than a traditional heat pump.

These models are designed to run consistently at low output levels to maintain optimal temperatures in your space but can ramp up their output as needed. This type of operation also enhances airflow through your structure, greatly improves efficiency, optimizes air filtration (especially if paired with a media or electronic air cleaner), and does a better job dehumidifying when in cooling mode than nearly any other type of cooling system.

When the system is on, even if there isn't a call for heating or cooling, the fan will continuously run at a low level to to mix the air and sense the conditions in your space. It then communicates that information with the outdoor unit. This communication allows the system to adjust its output as needed which optimizes the efficiency and comfort delivered!





System Features


Inverter Compressor
Designed to run only as hard as needed to maintain optimal temperatures in your space while minimizing electrical consumption.

Variable Speed Blower
Provides even air distribution throughout your home to optimize comfort.

Energy Efficient
Experience the right airflow volume in each space with a unit that automatically adjusts based on the ducting length.

Quiet Operation
Create more peaceful, comfortable spaces with ultra-quiet operation that reduces noise pollution.

Low Temperature Heating
Heat pump designed to operate at outdoor temperatures as low as -22 ºF, out performing most convential systems.

Easy & Flexible Installation
Install the unit vertically or horizontally for multi-directional air flow possibilities and increased flexibility.

Wifi enabled, programmable wall controller

Third-Party Thermostat Compatibility

Experience seamless integration — without extra kits — with a built-in 24V interface that’s compatible with third-party thermostats.

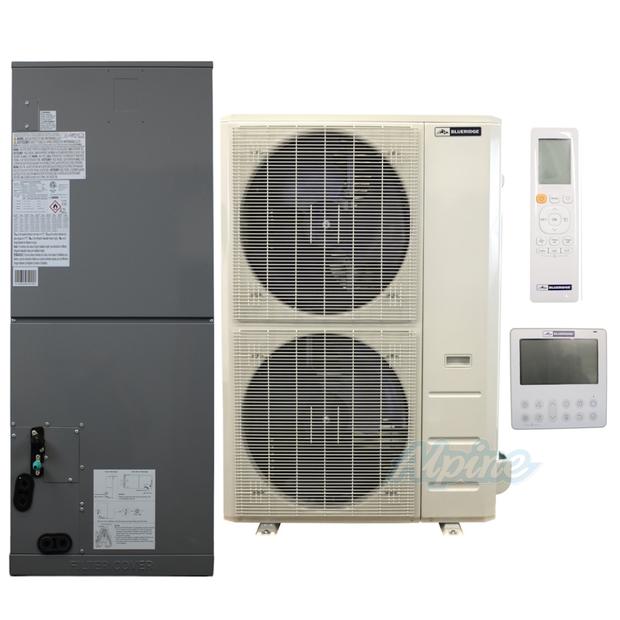

This System Includes*




Blueridge BNG3A60UCN x1
60,000 BTU 16 SEER2 Hyper Heat Inverter Outdoor Condenser





Blueridge BNGFA60DH2 x1
60,000 BTU 16 SEER2  Air Handler Unit






Blueridge 17317000A70323 x1
Remote controller





Blueridge 17317100A41274 x1
Wired controller





Also Consider
Specs
System Information
Configuration
Downflow / Horizontal / Upflow
Mini-Split System Type
Heating / Cooling
Indoor Air Handler Type(s)
24 V AHU
Zones
1
Connection Type
Flare
Fuel Type
Electricity
System Type
Heat Pump and Air Handler
Product Type
Mini Split Only
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
Yes (Built In)
Efficiency
SEER2
16 SEER2
EER2
10 EER2
HSPF2
9 HSPF2
Coefficient of Performance at 5° F
1.8
Coefficient of Performance (at 47 F)
3.1 COP
Refrigerant Readiness
Primary Refrigerant
R-454B
Factory Precharge
25 Feet
Mobile Home Compatible
No
Performance
Tonnage
5 Ton(s)
Low Output Cool
11400 BTU
Low Output Heat
8100 BTU
High Output Cool
47000 BTU
High Output Heat
64500 BTU
Electric Heat Capabilities (Optional)
10 / 15 / 20 / 25 Kilowatts
Stages of Heat
Inverter
Stages of Cool
Inverter
Compressor Type
Inverter
Sound Rating, Indoor
34.5 / 49.5 / 52 / 54.5 Decibels
Sound Rating, Outdoor
65 Decibels
Ambient Temperature Range (Cooling)
-22 / 122 °F
Ambient Temperature Range (Heating)
-22 / 75 °F
Low Ambient Cooling
Yes
Lowest Ambient Temperature (Heating)
-22 °F
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
40 Amps
Maximum Fuse/Breaker
40 Amps
Air Handler Breaker Size
15 Amps
Line Set Information
Lineset Compatibility Code
L05
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Maximum Line Length per Zone
246 Feet
Maximum Height Difference
98.4 Feet
Product Dimensions
Cabinet/Chassis Size
D
Indoor Air Handler Size, W x H x D
24.49 x 52.99 x 21.02 Inches
Outdoor Condenser Size, W x H x D
37.48 x 52.48 x 16.34 Inches
Footprint Mounting Holes (W x D)
25 x 15.9 Inches
Outdoor Condenser Weight
242.95 Lbs
Indoor Air Handler Weight
162.92 Lbs
Pad Size
24x36 Inches
Important Measurements
Return Air Opening Size
22.12 w x 18.75 d inches
Supply Air Opening Size
22.62 w x 10.25 d Inches
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
AHRI#
216997509
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® ID
3996813
ENERGY STAR® Certified
Yes
Qualified Manufacturer ID (QMID)
