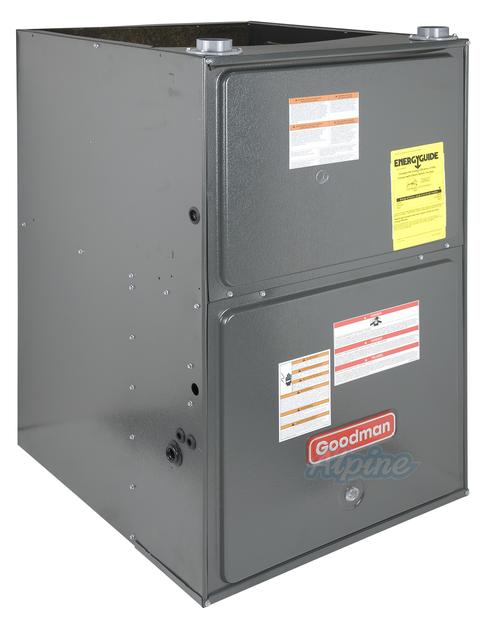

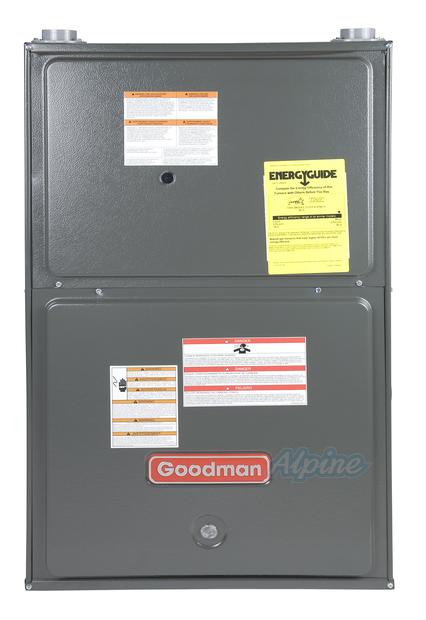

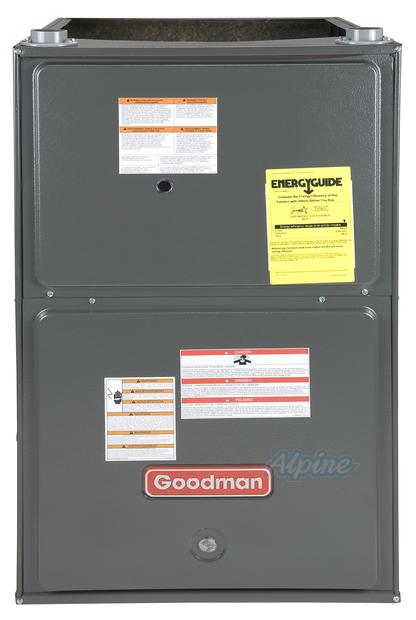

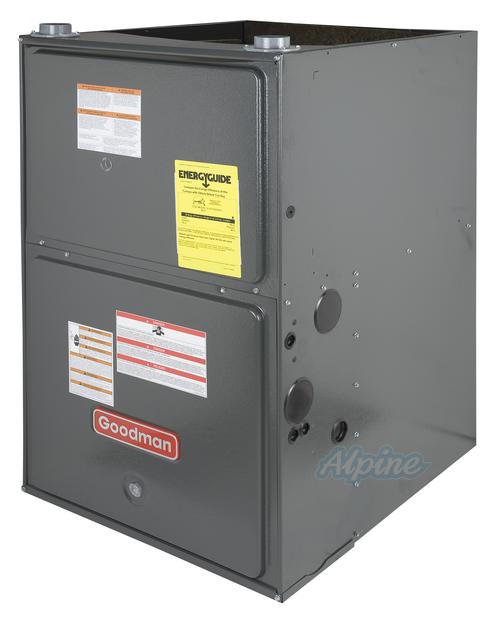

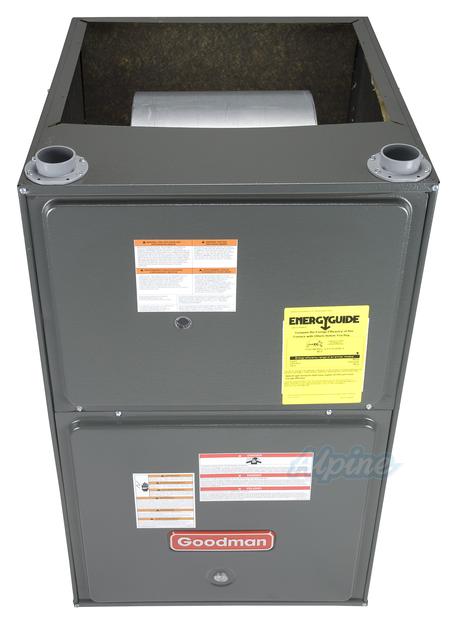

100,000 BTU Furnace, 95% Efficiency, Modulating Burner, 2,000 CFM Variable Speed Blower, Horizontal / Downflow Application

100,000 BTU Furnace, 95% Efficiency, Modulating Burner, 2,000 CFM Variable Speed Blower, Horizontal / Downflow Application

New Item!

Model: Goodman GCVM961005DX

highlights
view information

This is a Downflow / Horizontal unit. Learn about Downflow / Horizontal

view information

To use LP fuel, this unit requires an LP Conversion Kit. See Accessories

The Goodman® GCVM96 up to 96% AFUE, Multi-Position, Modulating Variable-Speed gas furnace features a patented aluminized-steel tubular heat exchanger and durable Silicon Nitride Hot Surface Ignition system. (Please read this Important Safety Notice). The GCVM96 is designed for a downflow (blows air into ducts located below it) or horizontal application.

Standard Features

  • Aluminized-steel, dual-diameter tubular heat exchange
  • Stainless-steel secondary heat exchanger
  • ComfortNetTM Communicating Systems compatible
  • Self-calibrating, modulating gas valve operates with two-stage or single-stage thermostats

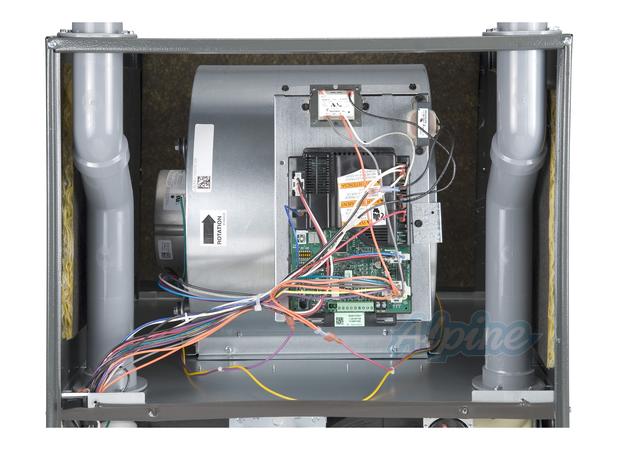

  • Efficient and quiet variable-speed circulator motor gently ramps up or down according to heating or cooling demand
  • Durable Silicon Nitride igniter

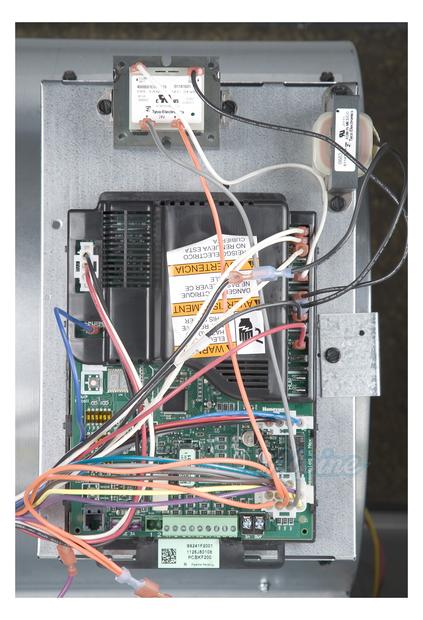

  • Furnace control board with self-diagnostics, color-coded low-voltage terminals and provisions for electronic air cleaners and humidifiers
  • Low constant fan speed allows homeowner to quietly circulate air throughout the home.  This setting costs as little as a 100-watt light bulb to operate.
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Auto-Comfort and enhanced dehumidication modes provide energy savings and additional comfort during the cooling months
  • Easy-to-install top venting is standard; alternate flue/vent located on right
  • Quiet two-speed induced draft blower
  • Complies with California NOx emissions standards


Cabinet Features

  • Fully insulated, heavy-gauge steel furnace cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger compartment
  • Designed for multi-position installation:  downflow, horizontal left or right
  • Airtight solid bottom for side-return applications and easy-cut tabs for effortless removal in bottom air-inlet applications
  • Convenient left or right connection for furnaces' gas and electric service
  • Coil and furnace fit flush for most installations



Outstanding Warranty Protection

This furnace is covered by what we believe to be one of the best warranties in the indoor home comfort industry. In addition to covering the heat exchanger with a Lifetime Limited Warranty to the original, registered homeowner, if the heat exchanger fails during the first 10 years of ownership, we will replace the entire unit for as long as you own your home. This furnace also has a 10-Year Limited Parts Warranty on all functional parts. For a full description of all warranties applicable to this product, please review the consumer brochure or product warranty in the Documents section.

Specs
System Information
view information
Configuration
Downflow / Horizontal
view information
Fuel Type
LP Capable (Kit Required) / Natural Gas
Equipment Type
Gas Furnace
Efficiency
view information
Efficiency (% AFUE)
96 %
Performance
view information
Maximum Input BTU
100000 BTU
view information
Maximum Heating Capacity
95000 BTU
view information
Minimum Input BTU
50000 BTU
view information
Minimum Output BTU
47500 BTU
view information
Maximum CFM
2000 @ 0.5
view information
Blower Cooling Capacity
2 / 2.5 / 3 / 3.5 / 4 / 5 Tons
view information
Blower Type
Variable Speed
view information
Burner Stages
Modulating
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Maximum Overcurrent Protection (Breaker)
15 Amps
view information
Voltage
115 Volts
Product Dimensions
view information
Width
24 1/2 Inches
view information
Depth
28 3/4 Inches
view information
Height
40 3/4 Inches
view information
Cabinet/Chassis Size
D
Product Weight
170 lbs
Shipping Weight
170 lbs
Important Measurements
view information
Vent Connection
3 Inches
view information
Supply Air Opening Size
20 5/32 x 23 Inches
view information
Return Air Opening Size
20 1/2 x 23 inches
view information
Flue Pipe Diameter
3
Warranty
view information
Heat Exchanger Warranty
Lifetime w/ online registration
view information
Unit Replacement Warranty
10 Years
view information
Parts Warranty
10 Years
Certifications
view information
California Approved Furnace
Yes
view information
Ultra-Low NOx
No
view information
Qualifies for Govt. Money
No
view information
Emission Standard
Low NOx
view information
ENERGY STAR® Certified
No
