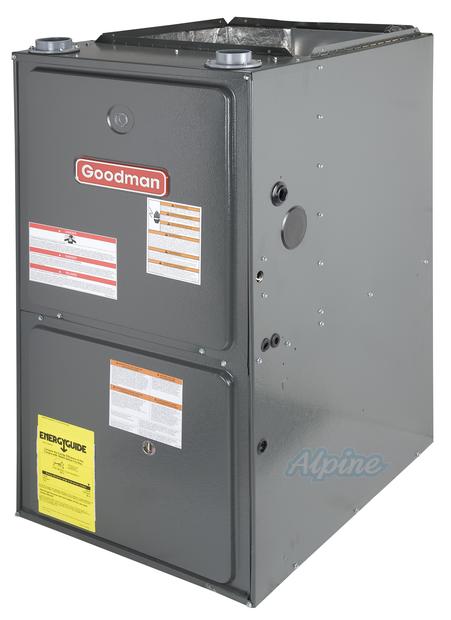

100,000 BTU Furnace, 96% Efficiency, Modulating Burner, 2,000 CFM Variable Speed Blower, Upflow / Horizontal Flow Application

100,000 BTU Furnace, 96% Efficiency, Modulating Burner, 2,000 CFM Variable Speed Blower, Upflow / Horizontal Flow Application

Model: Goodman GMVM961005DX

Actual product may vary from photos.

Model: Goodman GMVM961005DX

$2,297.00

Add to Cart for Discount

Or as low as
Qty:
Express Pay Available
highlights
view information

This is a Horizontal / Upflow unit.

view information

To use LP fuel, this unit requires an LP Conversion Kit. See Accessories

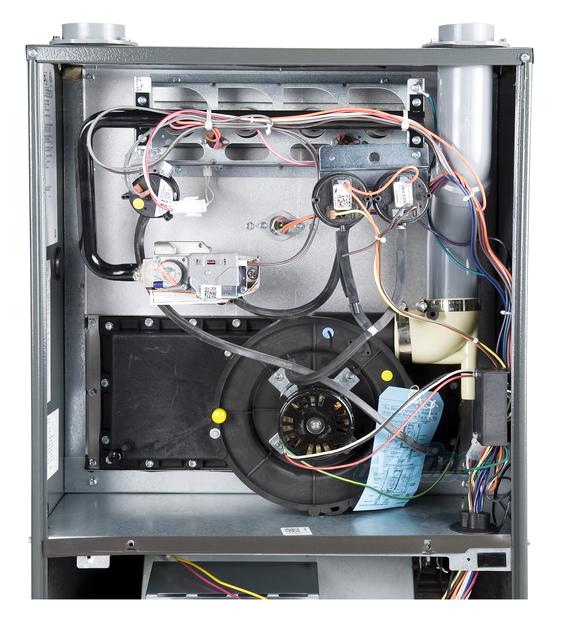

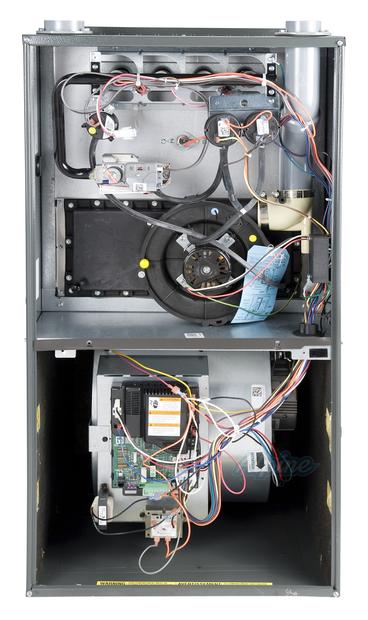

The Goodman® GMVM96 up to 96% AFUE, Multi-Position, Modulating Variable-Speed gas furnace features a patented aluminized-steel tubular heat exchanger and durable Silicon Nitride Hot Surface Ignition system. (Please read this Important Safety Notice.)

Standard Features

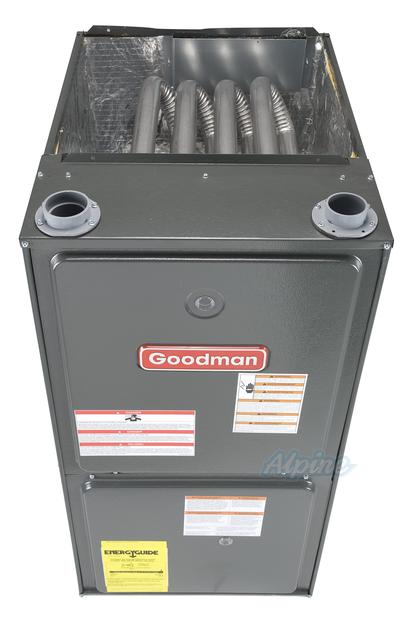

  • Aluminized-steel, dual-diameter tubular heat exchange
  • Stainless-steel secondary heat exchanger
  • ComfortNetTM Communicating Systems compatible

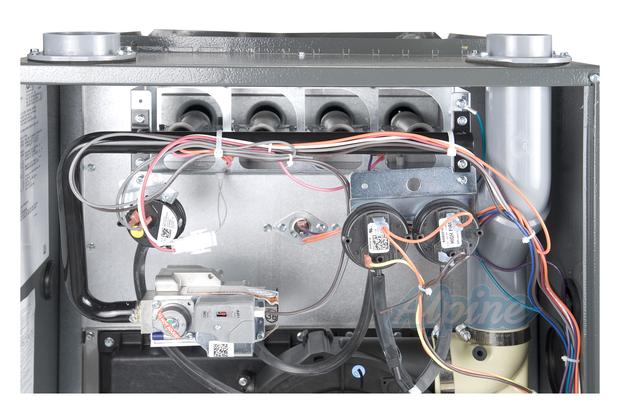

  • Self-calibrating, modulating gas valve operates with two-stage or single-stage thermostats

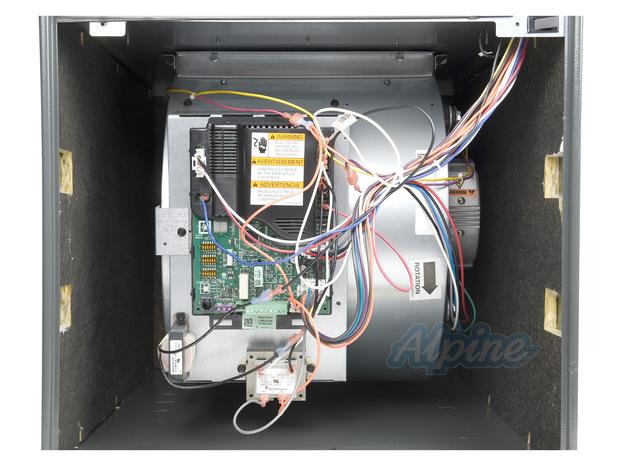

  • Efficient and quiet variable-speed circulator motor gently ramps up or down according to heating or cooling demand
  • Durable Silicon Nitride igniter

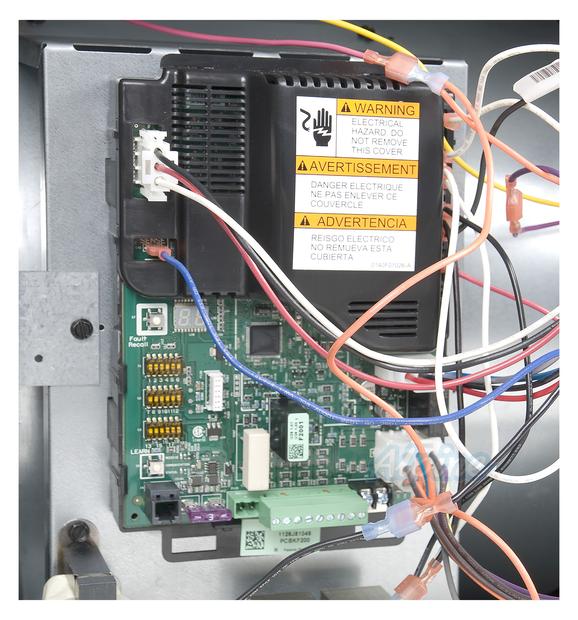

  • Furnace control board with self-diagnostics, color-coded low-voltage terminals and provisions for electronic air cleaners and humidifiers
  • Low constant fan speed allows homeowner to quietly circulate air throughout the home.  This setting costs as little as a 100-watt light bulb to operate.
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Auto-Comfort and enhanced dehumidication modes provide energy savings and additional comfort during the cooling months
  • Easy-to-install top venting is standard; alternate flue/vent located on right
  • Quiet two-speed induced draft blower
  • Complies with California NOx emissions standards


Cabinet Features

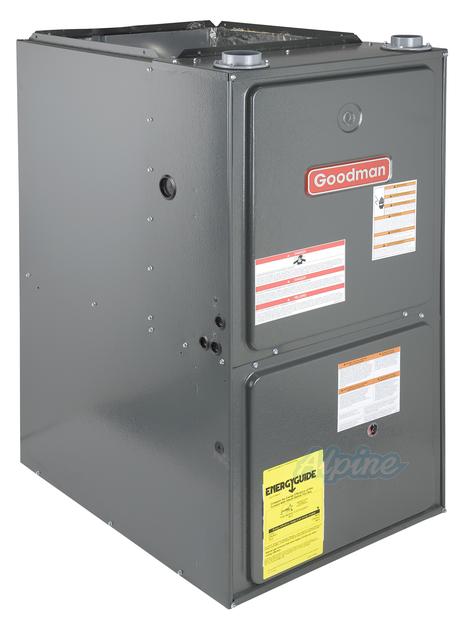

  • Fully insulated, heavy-gauge steel furnace cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger compartment
  • Designed for multi-position installation:  downflow, horizontal left or right
  • Airtight solid bottom for side-return applications and easy-cut tabs for effortless removal in bottom air-inlet applications
  • Convenient left or right connection for furnaces' gas and electric service
  • Coil and furnace fit flush for most installations


Outstanding Warranty Protection

This furnace is covered by what we believe to be one of the best warranties in the indoor home comfort industry. In addition to covering the heat exchanger with a Lifetime Limited Warranty to the original, registered homeowner, if the heat exchanger fails during the first 10 years of ownership, we will replace the entire unit for as long as you own your home. This furnace also has a 10-Year Limited Parts Warranty on all functional parts. For a full description of all warranties applicable to this product, please review the consumer brochure or product warranty in the Documents section.

Specs
view information
Qualifies for Govt. Money
No
view information
Maximum Input BTU
100000 BTU
view information
Ultra-Low NOx
No
view information
California Approved Furnace
Yes
view information
Maximum Heating Output BTU
96000 BTU
view information
Minimum Output BTU
48000 BTU
view information
Minimum Input BTU
50000 BTU
view information
Configuration
Horizontal / Upflow
view information
Maximum CFM
2000 @ 0.5
view information
Height
40.75 Inches
view information
Depth
28.75 Inches
view information
Width
24.5 Inches
view information
Blower Cooling Capacity
2 / 2.5 / 3 / 3.5 / 4 / 5 Tons
view information
Blower Type
Variable Speed
view information
Maximum Overcurrent Protection (Breaker)
15 Amps
view information
Fuel Type
LP Capable (Kit Required) / Natural Gas
view information
Supply Air Opening Size
23 x 19 7/8 Inches
view information
Vent Connection
3 Inches
view information
Efficiency (% AFUE)
96 %
view information
Burner Stages
Modulating
Product Weight
170 lbs
view information
Heat Exchanger Warranty
Lifetime
view information
Unit Replacement Warranty
10 Years
view information
Parts Warranty
10 Years
view information
ENERGY STAR® Certified
No
