2.25 Ton 23 SEER2 Inverter R-454B Next Gen Split System – Next Gen Heat Pump & Ducted Air Handler

2.25 Ton 23 SEER2 Inverter R-454B Next Gen Split System – Next Gen Heat Pump & Ducted Air Handler

New Item!

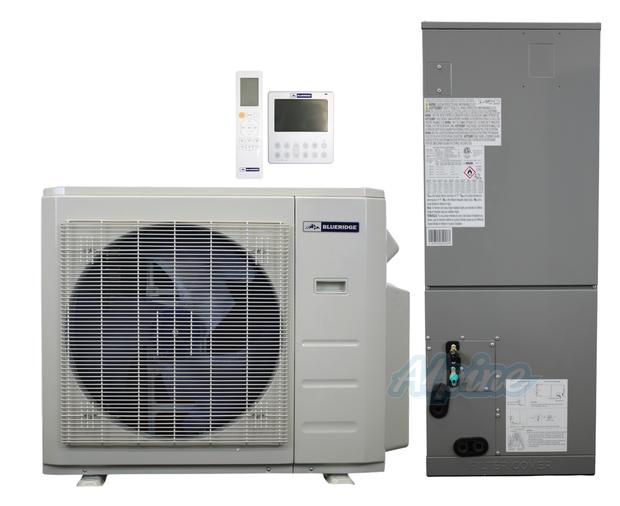

Model: Blueridge BXM1A27SC0-BNHFA18DH0

  • Thumbnail of Blueridge BXM1A27SC0-BNHFA18DH0 2.25 Ton 23 SEER2 Inverter R-454B Next Gen Split System – Next Gen Heat Pump & Ducted Air Handler 63209
  • Thumbnail of Blueridge BXM1A27SC0-BNHFA18DH0 2.25 Ton 23 SEER2 Inverter R-454B Next Gen Split System – Next Gen Heat Pump & Ducted Air Handler 60517
  • Thumbnail of Blueridge BXM1A27SC0-BNHFA18DH0 2.25 Ton 23 SEER2 Inverter R-454B Next Gen Split System – Next Gen Heat Pump & Ducted Air Handler 60523
  • Thumbnail of Blueridge BXM1A27SC0-BNHFA18DH0 2.25 Ton 23 SEER2 Inverter R-454B Next Gen Split System – Next Gen Heat Pump & Ducted Air Handler 60526
  • Thumbnail of Blueridge BXM1A27SC0-BNHFA18DH0 2.25 Ton 23 SEER2 Inverter R-454B Next Gen Split System – Next Gen Heat Pump & Ducted Air Handler 60527
  • Thumbnail of Blueridge BXM1A27SC0-BNHFA18DH0 2.25 Ton 23 SEER2 Inverter R-454B Next Gen Split System – Next Gen Heat Pump & Ducted Air Handler 60520
  • + 18 More
    Thumbnail of Blueridge BXM1A27SC0-BNHFA18DH0 2.25 Ton 23 SEER2 Inverter R-454B Next Gen Split System – Next Gen Heat Pump & Ducted Air Handler 60528

Model: Blueridge BXM1A27SC0-BNHFA18DH0

$3,23900
Qty:
checkmark icon
In Stock and Ready to Ship
checkmark icon
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

Experience next-level comfort with this intelligent ducted system that pairs an advanced indoor air handler with a variable-capacity outdoor heat pump. The air handler offers flexible installation options, durable aluminum coils, and built-in refrigerant detection for safe operation. The outdoor unit automatically adjusts its capacity in real-time, ramping up or down to maintain your desired temperature while maximizing energy savings.

Control is simple and flexible. The system works with both the included wired controller and standard 24-volt thermostats, letting you choose the interface that works best for your home. Optional electric heat kits can be added for extra warmth during extreme cold snaps, ensuring you stay comfortable no matter what the weather brings.


This System Includes*




Blueridge BXM1A27SC0 x1
27,000 BTU Four Zone Ductless Mini Split Outdoor Condenser

The Blueridge XM1-SC0 Ultra Heat/Cool Single-Zone Condenser is a high-performance, inverter-driven heat pump unit designed to deliver quiet, efficient heating and cooling to a single space. It modulates output to precisely match heating/cooling demand—maximizing comfort while minimizing energy use. Built for year-round operation, XM1-SC0 delivers strong heat even in low ambient temperatures, while its durable, corrosion-resistant outdoor housing ensures long life. With built-in diagnostics and compatibility with a wide range of Blueridge indoor units, it offers flexible installation and dependable performance for residential or light commercial single-zone applications.



Warranty Information
  • Compressor Warranty – 7 Years
  • Parts Warranty – 5 Years







Blueridge BNHFA18DH0 x1
18,000 BTU Ultra Efficient Ducted Air Handler Unit



Warranty Information
  • Compressor Warranty – 7 Years
  • Parts Warranty – 5 Years







Specs
System Information
Configuration
Downflow / Horizontal / Upflow
Mini-Split System Type
Heating / Cooling
System Type
Heat Pump and Air Handler
Product Type
Mini Split Only
Single Vs. Multi-Zone
Multi-zone
Efficiency
SEER2
23 SEER2
EER2
13 EER2
HSPF2
9.5 HSPF2
Coefficient of Performance at 5° F
2
Refrigerant Readiness
Primary Refrigerant
R-454B
Mobile Home Compatible
Yes
Performance
Tonnage
2.25 Ton(s)
Low Output Cool
7200 BTU
Low Output Heat
8400 BTU
High Output Heat
28970 BTU
Stages of Heat
Inverter
Stages of Cool
Inverter
Sound Rating, Outdoor
61 Decibels
Line Set Information
Lineset Compatibility Code
L01
Product Dimensions
Outdoor Condenser Size, W x H x D
37.24 x 31.89 x 16.14 Inches
Outdoor Condenser Weight
138.89 Lbs
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® ID
3997935
Qualified Manufacturer ID (QMID)
R4M0
