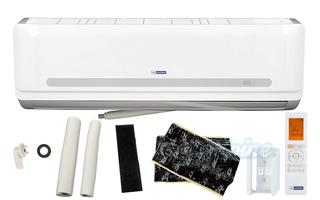

24,000 BTU Single Zone Do It Yourself Wall Mounted Ductless Air Handler

24,000 BTU Single Zone Do It Yourself Wall Mounted Ductless Air Handler

Model: Blueridge BMY24DIY21WM

Top Rated: Hightest Rating of Any Mini-Split Brand
Actual product may vary from photos.

Model: Blueridge BMY24DIY21WM

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

$55000
Or as low as

Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
highlights
important
*NOTE: This product is not a complete system, it is only one component. A complete system requires an indoor air handler, outdoor condenser and connecting line set. Please view complete systems here.
Midea Wall Mount - DIY
Blueridge logo
Heat or Cool Any Space,
Simply and Affordably
affordable icon
Surprisingly
Affordable
quiet icon
Incredibly
Quiet
reviews icon
Great
Reviews
easy to install icon
Easy to
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
The Blueridge Do-It-Yourself eliminates the most technical, difficult steps from a normal HVAC installation.
No SolderingNo Soldering
No Refrigerant HandlingNo Refrigerant Handling
No GaugesNo Gauges
No Vacuum PumpNo Vacuum Pump
Midea Wall Mount - DIY
Normal HVAC Installation:
Usually, a technician will solder together copper tubing to create a sealed environment for the refrigerant chemicals to circulate. Then, they add nitrogen gas under high pressure to test for leaks. Next, they use a vacuum pump to evacuate all gasses from inside. Only then will they release the refrigerant that will allow the system to function, using gauges to make sure the volume and pressure are correct.
Blueridge Do-It-Yourself:
The Blueridge Do-It-Yourself system uses a different approach to get the same result. You get two separate units - the inside air handler and the outside condenser. The condenser already contains the correct amount of refrigerant. The copper lines included with your Blueridge DIY system, are already under vacuum. They have quick-connect fittings that maintain a vacuum until you’re ready to connect. After you’ve installed the indoor and outdoor units, you screw together the quick-connect fittings, then open the valves to release the refrigerant. It’s that easy.
Benefits
Quiet
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
Simple Installation
You can install a Blueridge Do-It-Yourself mini split without any special training, tools, or equipment thanks to the pre-charged line set that comes included with your system. Simply follow a few easy installation steps to get your mini split working in no time.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Video thumbnail
Blueridge Mini-Splits also Provide Heat!
Video thumbnail
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
View All Reviews
Blueridge BMY24DIY21WM Unit Type:
Wall Unit
Wall mounted units mount high on a vertical wall. The connective hoses and condensation go through the wall to the outside behind the unit. These are the most popular design due to the ease of installation and low cost.
Wall Unit
Installation
Mount
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Connect
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Electrical
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Andrew Arthurs
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BMY24DIY21WM
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
Blueridge BMY24DIY21WM
24,000 BTU Single Zone Do It Yourself Wall Mounted Ductless Air Handler
Specs
System Information
view information
Zones
1
view information
Indoor Air Handler Type(s)
Wall Mount
view information
Single Vs. Multi-Zone
Single zone
view information
Mini-Split Series
S3 Series: DIY
view information
Product Type
Mini Split DIY
Component Type
Indoor Unit
view information
Refrigerant
R-410A
Features
Wireless Remote
Included
view information
WIFI (2.4GHz)
Yes (With Adapter)
Efficiency
view information
SEER
20.5 SEER
Performance
Sound Level Indoor (Hi/Mi/Lo)
48.5 / 43.5 / 33 Decibels
Air Handler Setpoint Range (Cooling)
62 - 86 °F
Air Handler Setpoint Range (Heating)
62 - 86 °F
view information
Base Heating Capacity
25000 BTU
view information
Airflow Capacity
606 / 506 / 365 CFM
view information
Total Cooling Capacity
2 Ton(s)
view information
Maximum Heating Capacity
30400 BTU
view information
Base Cooling Capacity
23000 BTU
view information
Maximum Cooling Capacity
26600 BTU
view information
Sound Rating, Indoor
33 / 43.5 / 48.5 Decibels
Line Set Information
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
5/8 Inches
view information
Line Set Connection Type
Quick Connect
Product Dimensions
view information
Indoor Air Handler Size, W x H x D
42.52 x 13.19 x 8.9 Inches
Product Weight
35.27 lbs
Important Measurements
view information
Minimum Unit Clearance (Sides to Wall)
4.75 Inches
view information
Minimum Unit Clearance (Top to Ceiling)
5.9 Inches
view information
Minimum Unit Clearance (Bottom to Floor)
72 Inches
Warranty
view information
Parts Warranty
5 Years
Certifications
view information
AHRI#
207339181
view information
ENERGY STAR® Certified
No
