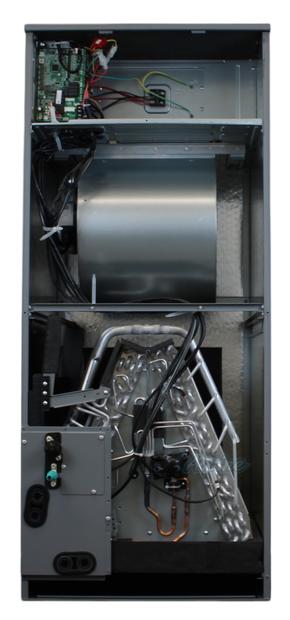

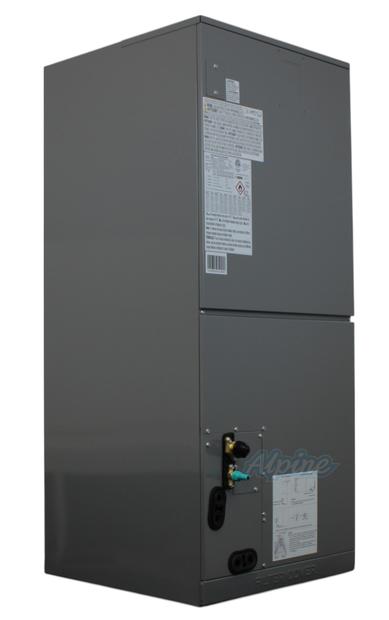

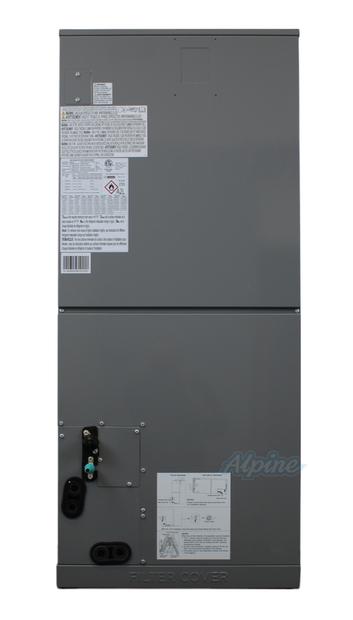

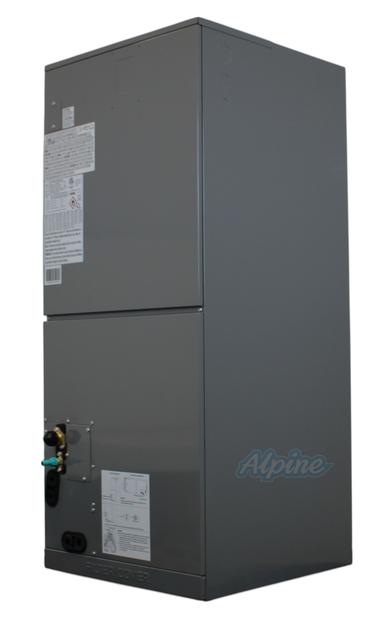

18,000 BTU 19 SEER2 Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-454B, 220V, NG3 Series, WiFi Ready
18,000 BTU 19 SEER2 Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-454B, 220V, NG3 Series, WiFi Ready
- Provides heating and cooling
- Whisper quiet indoors and outdoors
- Sips electricity for low utility costs
- Simple installation + friendly tech support available
Get expert help - freeBuild a mini-split system tailored to your home
Try Mini-split Builder - Free
Shop with Confidence
$1,220.00
Ships FREE Thursday
Air Handler Features:
Energy Efficient
Experience the right airflow volume in each space with a unit that automatically adjusts based on the ducting length.
Variable Speed Blower
Provides even air distribution throughout your home to optimize comfort.
Quiet Operation
Create more peaceful, comfortable spaces with ultra-quiet operation that reduces noise pollution.
Easy & Flexible Installation
Install the unit vertically or horizontally for multi-directional air flow possibilities and increased flexibility.
Third-Party Thermostat Compatibility
Experience seamless integration — without extra kits — with a built-in 24V interface that’s compatible with third-party thermostats.
Also Consider
24,000 BTU 18.3 SEER2 Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-454B, 220V, NG3 Series, WiFi Ready
Blueridge BNGFA24DH2
In Stock
$
1,290
00
System Information
Configuration
Downflow / Horizontal / Upflow
Single Zone Mini-Split Series
NG2 Series: Standard / NG3 Series: Hyper Heat
Next Gen Series
NG1: Basic / NG2: Core / NG3: All Climate
Indoor Air Handler Type(s)
24 V AHU
Zones
1
Connection Type
Flare
Product Type
Mini Split Indoor Unit
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
Yes (With Wifi Capable Thermostat)
Wireless Remote
Included
Refrigerant Readiness
Primary Refrigerant
R-454B
Mobile Home Compatible
No
RDS (Refrigerant Detection System) On-Board
Yes
RDS Factory-Programmed For
R-454B
Refrigerant Metering Device
EEV
Metering Device Refrigerant Compatibility
R-454B
Performance
Tonnage
1.5 Ton(s)
High Output Cool
18000 BTU
High Output Heat
18000 BTU
Sound Rating
33 / 39 / 41 / 43 / 44 Decibels
Blower Type
Variable-Speed
Low Ambient Cooling
Yes
Air Handler Setpoint Range (Cooling)
62 - 86 °F
Air Handler Setpoint Range (Heating)
62 - 86 °F
Electrical Information
Frequency
60 Hz
Minimum Ampacity
5.5 (115V) / 4 (208/230V) Amps
Maximum Fuse/Breaker
15 Amps
Line Set Information
Lineset Compatibility Code
L05
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Line Set Connection Type
Flare
Product Dimensions
Cabinet/Chassis Size
B
Width
17 13/25 Inches
Depth
21 1/50 Inches
Height
45 Inches
Product Weight
105.82 lbs
Shipping Weight
126.76 lbs
Compatibility
Cross-Brand Compatibility: R-410A Air Conditioner
No
Cross-Brand Compatibility: R-32 Air Conditioner
No
Cross-Brand Compatibility: R-454B Air Conditioner
No
Cross-Brand Compatibility: R-410A Heat Pump
No
Cross-Brand Compatibility: R-32 Heat Pump
No
Cross-Brand Compatibility: R-454B Heat Pump
No
Important Measurements
Return Air Opening Size
15 1/4 w x 19 d inches
Supply Air Opening Size
15 3/4 w x 10 1/4 d Inches
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
Yes
Qualified Manufacturer ID (QMID)
R4M0
