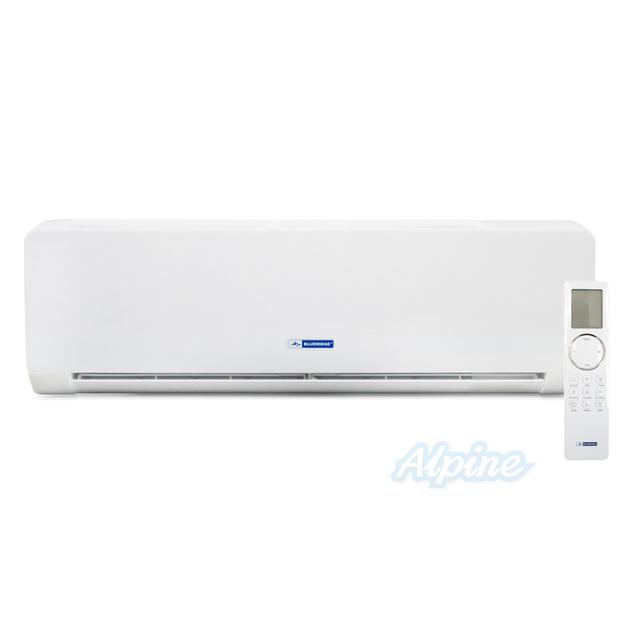

7,000 BTU Wall Mounted Ductless Air Handler (L01: 1/4 LL 3/8 SL)
7,000 BTU Wall Mounted Ductless Air Handler (L01: 1/4 LL 3/8 SL)
Model: Blueridge BXAFZ07WM0
- + 6 More
Model: Blueridge BXAFZ07WM0
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$34000
Qty:
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
highlights
*NOTE: This product is not a complete system, it is only one component. A complete system requires an indoor air handler, outdoor condenser and connecting line set. Please view complete systems here.
Heat or Cool Any Space,
Simply and Affordably
Simply and Affordably
Surprisingly
Affordable
Affordable
Incredibly
Quiet
Quiet
Great
Reviews
Reviews
Easy to
Install
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
Homeowners and contractors love Blueridge ductless mini-splits. If you own a home, you will want one.
Introducing Blueridge Energy Star, the ultra high efficiency smart ductless mini-split system from Blueridge. You can keep any room comfortable without sacrificing aesthetics. The quiet, unobtrusive design delivers advanced performance with an industry-best energy efficiency rating of up to 38 SEER in cooling and 15.0 HSPF in heating.
Blueridge ES Series provides ULTRA Heating technology to keep you reliably warm when temperatures drop as low as -22°F. Universal WIFI technology makes operation simple - enjoy direct control from your smartphone. Unparalleled efficiency and technology make Blueridge Energy Star Mini Splits, the perfect choice for any home or office.
Benefits
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
If you're handy, you can accomplish 90% of the installation yourself by following the simple directions and watching our helpful video. Bring in a professional to finish the job and you're set.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Step 4
Pro Start Up
We'll help you get an HVAC contractor who will pressure test the line sets, check for leaks, and release refrigerant. Click Here For Details
How to Install a Blueridge Ductless Mini-Split AC System
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BXAFZ07WM0
Standard Features
Ultra High Efficiency. Seasonal rating of up to 38 SEER cooling and 15 HSPF heating, making it among the most energy efficient heat pumps available today. Energy Star rated, recognized nationwide for products with high efficiency and lower utility costs.
Ultra Heating. Technology that gives true year round comfort in cold climate by delivering up to 90% heating capacity at -22°F.
WIFI Enabled - Control the comfort with your smartphone. For the ultimate in convenience, it has Universal WIFI and smartphone control. Simple and easy, allowing you to adjust comfort levels from anywhere you have WIFI access through your smartphone. The system is compatible with devices using standard Android or IOS operating systems.
Variable Speed Compressor. The variable speed compressor provides extended heating capacity at ultra-low temperature and additional cooling capacity in high temperature environments.
G-10 Inverter Technology. Inverter Technology gives the Blueridge Energy Star system a wide range of heating and cooling capacities to reach the desired room temperature much faster and maintain consistent comfort levels year round.
Intelligent Defrost / Pre-Heating. Saving energy by defrosting only when needed, the Energy Star series monitors the frost build up on the coil surface. It also monitors the discharge air temperature, and delays the indoor fan until the coil has warmed up to prevent uncomfortable cold air blowing into the room.
Self-Diagnostics. The system has a built-in computer which uses real-time diagnostics which help prolong the unit's life. The automatic diagnostics feature continuously scans for errors or malfunctions and fault codes are shown on the unit display to facilitate troubleshooting and repair.
4-Way Airflow. 4-way adjustable swing louvers can direct the airflow anywhere it is needed in the room.
Whisper Quiet Operation. Blueridge operates below typical library sound levels with sound ratings as low as 19 dB(A).
7 Speed Fan. The indoor fan can operate at different speeds, up to seven, for COOL or HEAT mode to provide maximum comfort and quiet operation.
180° Vertical Air Supply. Wide angle air guides enable a full 180° swing up and down for superior air distribution.
Polymeric Air Filters. Protect your unit and improve air quality by preventing dust and debris from degrading your system performance. The filters are washable and permanent for your convenience.
I Feel Mode Senses the room temperature from the remote control which is closest to you, instead of at the indoor unit. This means that it will adjust airflow and temperature for maximum personal comfort.
This System Includes*
7,000 BTU Wall Mounted Ductless Air Handler (L01: 1/4 LL 3/8 SL)
Also Consider
9,000 BTU (0.8 Ton) 1-Zone 27 SEER2 Inverter R-410A XS5 Heat Pump Ultra Cool/Ultra Heat System
Blueridge BMKH0938
In Stock
$
1,469
00
Specs
System Information
Multi Zone Mini-Split Series
XM2: All Climate
Indoor Air Handler Type(s)
Wall Mount
Connection Type
Flare
Product Type
Mini Split Indoor Unit
Single Vs. Multi-Zone
Multi-zone / Single zone
Features
WIFI (2.4GHz)
Yes (Built In)
Refrigerant Readiness
Primary Refrigerant
R-32
Mobile Home Compatible
Yes
RDS (Refrigerant Detection System) On-Board
Yes
RDS Factory-Programmed For
R-32
Performance
Tonnage
0.6 Ton(s)
High Output Cool
7000 BTU
High Output Heat
8000 BTU
Airflow Capacity
259 / 206 / 194 / 182 / 171 / 159 / 135 CFM
Sound Rating
23 / 27 / 29 / 31 / 33 / 35 / 38 Decibels
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Line Set Information
Lineset Compatibility Code
L01
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
3/8 Inches
Line Set Connection Type
Flare
Product Dimensions
Width
27 22/25 Inches
Depth
7 7/25 Inches
Height
10 23/100 Inches
Product Weight
15.4 lbs
Shipping Weight
18.7 lbs
Important Measurements
Minimum Unit Clearance (Sides to Wall)
5.9 Inches
Minimum Unit Clearance (Top to Ceiling)
5.9 Inches
Minimum Unit Clearance (Bottom to Floor)
72 Inches
Minimum Unit Clearance (Front)
118.11 Inches
