36,000 BTU (3 Ton) 16 SEER - S2 SERIES - 208/230V Single Zone DIY Ductless Mini-Split Heat Pump System - WiFi Capable

36,000 BTU (3 Ton) 16 SEER - S2 SERIES - 208/230V Single Zone DIY Ductless Mini-Split Heat Pump System - WiFi Capable

Model: Blueridge BM36DIY16

Top Rated: Hightest Rating of Any Mini-Split Brand
  • + 8 More
Mouse over or pinch image to zoom in.
Actual product may vary from photos.

Model: Blueridge BM36DIY16

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

$2,289.00
You save: 29%
Compare to: $3,230.00
Or as low as
Volume Discounts
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights
Heat or Cool Any Space,
Simply and Affordably
Surprisingly
Affordable
Incredibly
Quiet
Great
Reviews
Easy to
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
The Blueridge Do-It-Yourself eliminates the most technical, difficult steps from a normal HVAC installation.
No SolderingNo Soldering
No Refrigerant HandlingNo Refrigerant Handling
No GaugesNo Gauges
No Vacuum PumpNo Vacuum Pump
Normal HVAC Installation:
Usually, a technician will solder together copper tubing to create a sealed environment for the refrigerant chemicals to circulate. Then, they add nitrogen gas under high pressure to test for leaks. Next, they use a vacuum pump to evacuate all gasses from inside. Only then will they release the refrigerant that will allow the system to function, using gauges to make sure the volume and pressure are correct.
Blueridge Do-It-Yourself:
The Blueridge Do-It-Yourself system uses a different approach to get the same result. You get two separate units - the inside air handler and the outside condenser. The condenser already contains the correct amount of refrigerant. The copper lines included with your Blueridge DIY system, are already under vacuum. They have quick-connect fittings that maintain a vacuum until you’re ready to connect. After you’ve installed the indoor and outdoor units, you screw together the quick-connect fittings, then open the valves to release the refrigerant. It’s that easy.
Benefits
WiFi Control
Included remote with features like Quiet Mode, Turbo Mode, Sleep Mode and Timer. Use app with smartphone or tablet to control the system from wherever you are.
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
You can install a Blueridge Do-It-Yourself mini split without any special training, tools, or equipment thanks to the pre-charged line set that comes included with your system. Simply follow a few easy installation steps to get your mini split working in no time.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Ductless Mini-Split Basics Explained
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
View All Reviews
Blueridge BM36YDIY16WM Unit Type:
Wall Unit
Wall mounted units mount high on a vertical wall. The connective hoses and condensation go through the wall to the outside behind the unit. These are the most popular design due to the ease of installation and low cost.
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BM36DIY16
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.

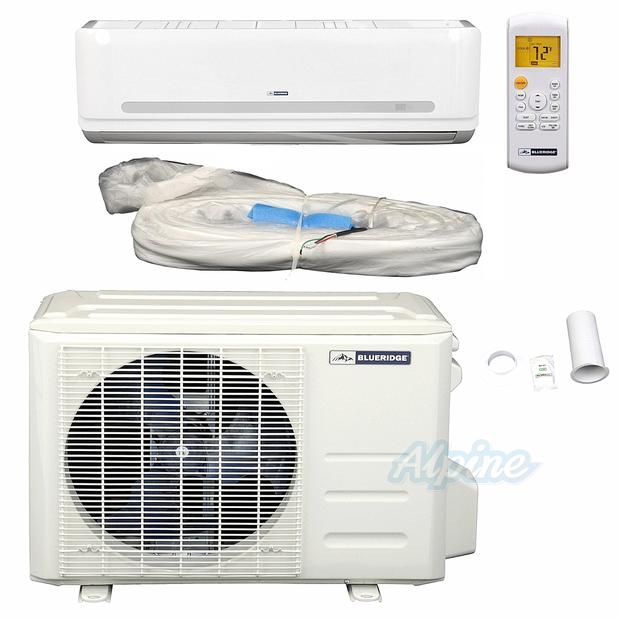

This System Includes*
36,000 BTU 16 SEER Single Zone 208-230V Do It Yourself Ductless Mini Split Outdoor Condenser
36,000 BTU Single Zone Do It Yourself Wall Mounted Ductless Indoor Air Handler

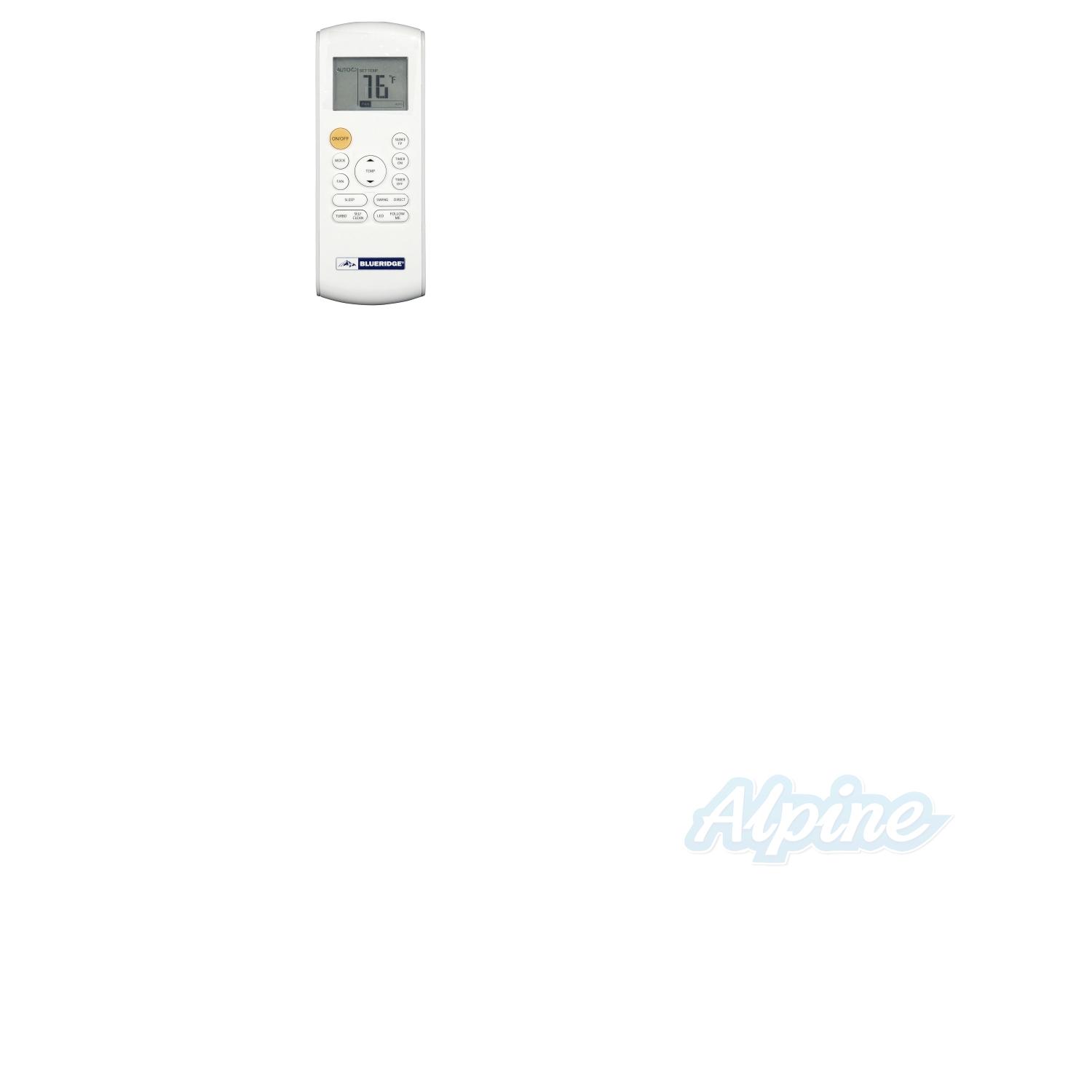

Remote Control with "Follow Me" Feature
*NOTE: Does not include all required components for installation. See required components below in the accessories section to complete your system.
Optional: WiFi Adapter for Blueridge BM Series Wall Mount Air Handlers
To add this item to your system, please view accessories section below.
Specs
Ambient Temperature Range (Cooling)
122 / 5 °F
Ambient Temperature Range (Heating)
-4 / 86 °F
AHRI#
202196473
Mini-Split System Type
Heating / Cooling
Low Ambient Cooling
Yes
Product Type
Mini Split DIY
Zones
1
Total Cooling Capacity
3 Ton(s)
Single Zone Mini-Split Series
S2 Series: Standard & DIY
Heating Capacity
36000 BTU
Cooling BTUs
34500 BTU
Cooling Tonnage
3 Tons
Maximum Cooling Output BTU
34500 BTU
Maximum Heating Output BTU
36000 BTU
SEER
16 SEER
Energy Efficiency Ratio
8.2 EER
Airflow Capacity
824 / 588 / 412 CFM
Coefficient of Performance
2.7 COP
Heating Seasonal Performance Factor
8.9 HSPF
Refrigerant
R-410A
WIFI
Yes (With Adapter)
Lowest Ambient Temperature (Heating)
-4 °F
Precharged Line Set Length Included
25 Feet
Minimum Ampacity/Breaker
25 Amps
Maximum Fuse/Breaker
30 Amps
Maximum Line Length per Zone
25 Feet
Maximum Height Difference
25 Feet
Line Set Connection Type
Quick Connect
Compressor Type
Inverter
ENERGY STAR® Qualified
No
Liquid Line Size
3/8 Inches
Suction Line Size
5/8 Inches
Indoor Air Handler Size, W x H x D
49.57 x 14.25 x 11.1 Inches
Sound Rating, Indoor
35 / 45 / 52 Decibels
Sound Rating, Outdoor
60.5 Decibels
Outdoor Condenser Size, W x H x D
37.24 x 31.89 x 16.14 Inches
Indoor Air Handler Weight
41.01 Lbs
Outdoor Condenser Weight
150.35 Lbs
Indoor Air Handler Type(s)
Wall Mounted
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Compressor Warranty
7 Years
Parts Warranty
5 Years
