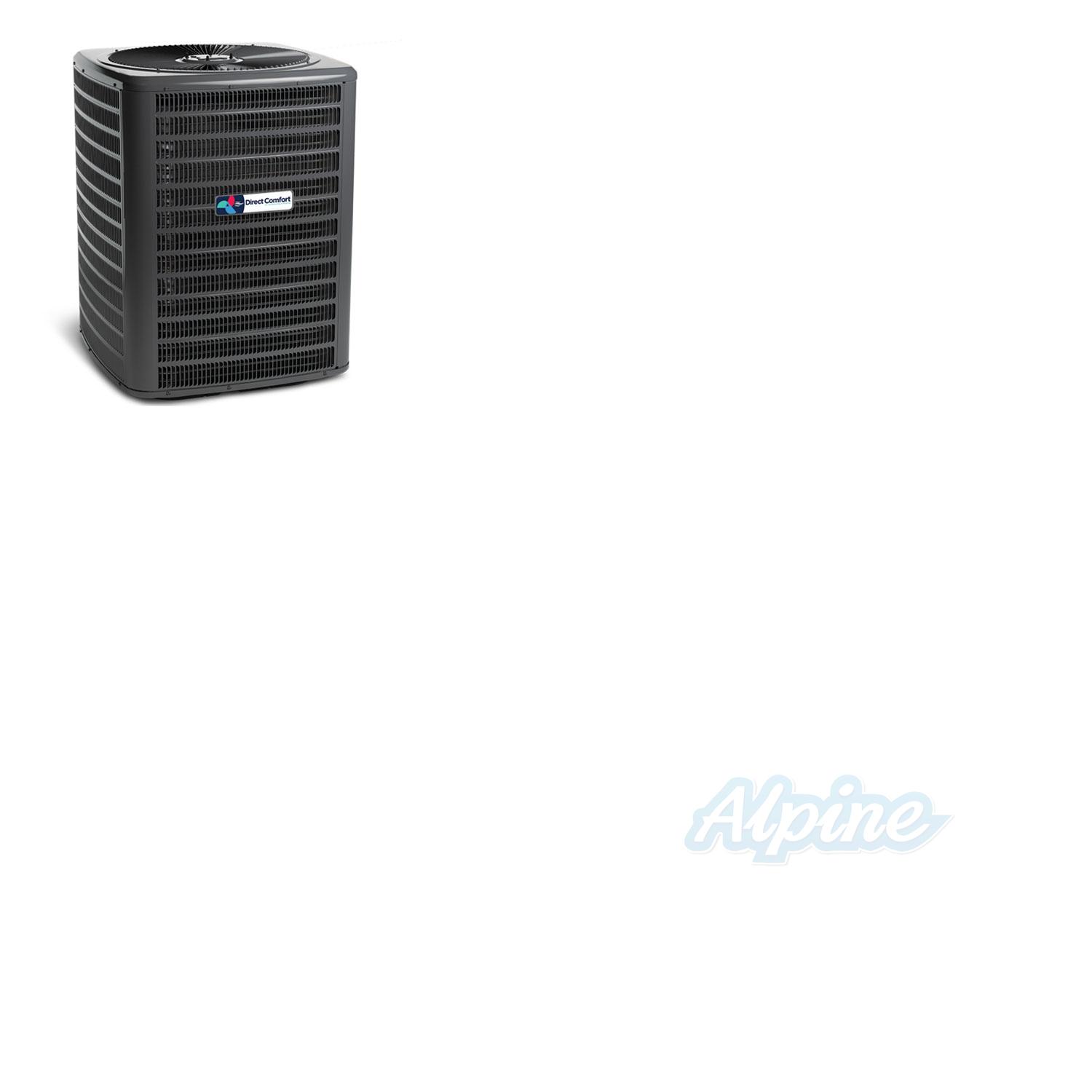

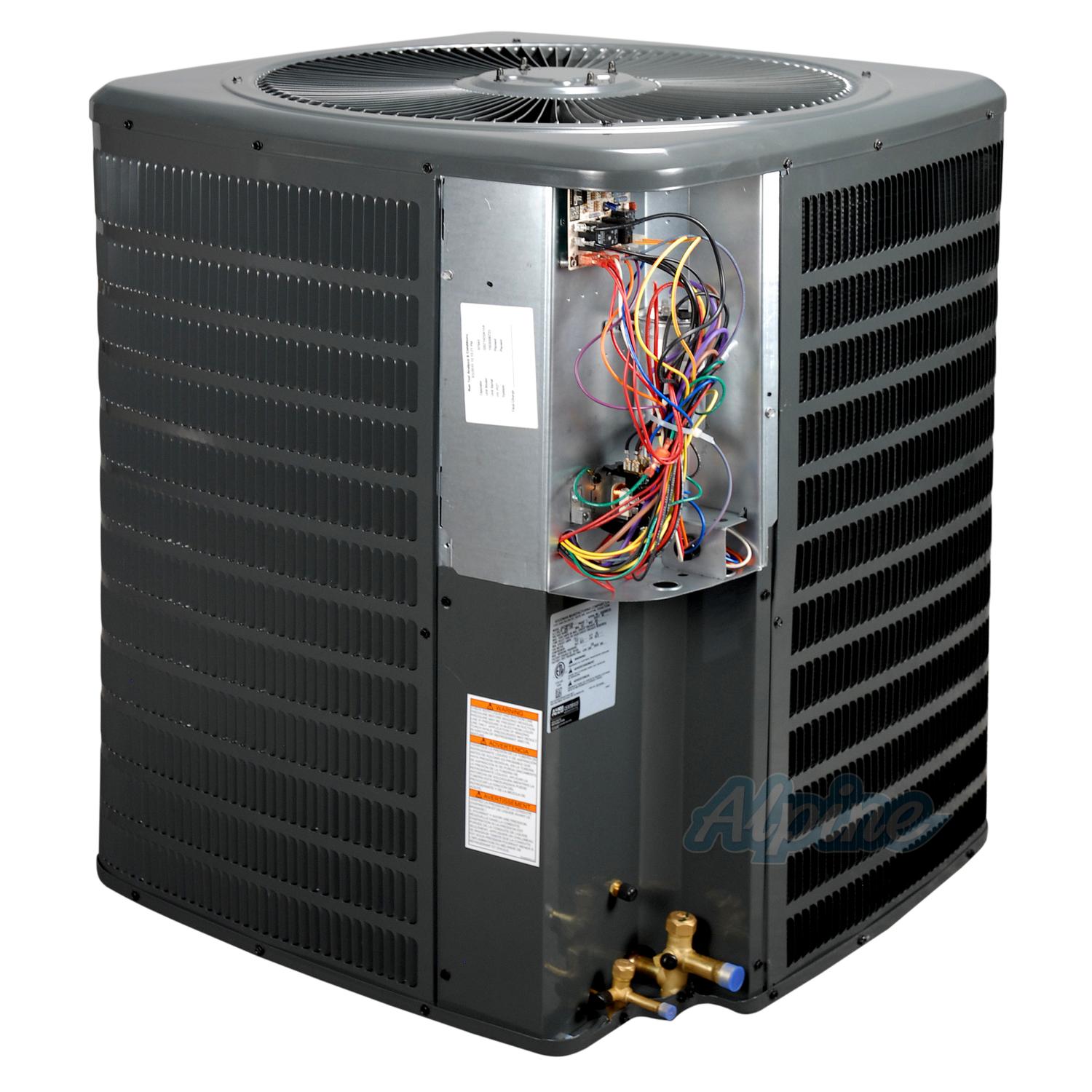

3.5 Ton, 14 to 15 SEER Heat Pump, R-410A Refrigerant

Model: Direct Comfort DC-GSZ140421

Actual product may vary from photos.

Model: Direct Comfort DC-GSZ140421

Provides high efficiency heating and cooling

Sturdy design for long term durability

Built for simple installation and easy maintenance

Peace of mind with 10 year warranty (with registration)

$2,240.00
Or as low as

You save: 28%
Compare to: $3,100.00
Volume Discounts
The Direct Comfort DC-GSZ140421 is no longer available for sale.
Express Pay Available
highlights

The Direct Comfort by Goodman® DC-GSZ14 14 to 15 SEER Heat Pump is a great value, not only for the price, but because it continues to save you money on energy costs throughout the life of the system.  Heat Pump technology harnesses the power of the refrigerant cycle to provide cooling in summer plus, by reversing the cycle, heating in winter without fossil fuels.  The DC-GSZ14 uses the environmentally friendly refrigerant R-410A and features operating sound levels that are among the best in the heating and cooling industry. To watch a video on heat pump technology, click here:  /learning-center/ac-cooling/air-conditioner-vs-heat-pump

The DC-GSZ14 can be 14 or 15 SEER, depending on the indoor unit it is paired with. If it is installed with the manufacturer recommended evaporator coil, a TXV and a Direct Comfort by Goodman variable speed furnace, air handler, or modular blower it is a 15 SEER system.  For complete matchup information, see the Accessories tab below, consult the Specifications Sheet in the Documents section below, or call 800 865 5931 to speak to a consultant. A 15 SEER heat pump system will reduce your electric bill approximately 7% - 8% more than a 14 SEER heat pump system.

Heat Pumps such as the DC-GSZ14 require a backup heat source for extreme cold temperatures.  If you will be using a gas, LP or oil furnace as a backup heat source, you will need to install a heat pump compatible thermostat such as the Honeywell TH8321WF1001 or TH6320WF2003 that can switch between the two heat sources as needed and prevent both the heat pump and backup heat from running at the same time.

Need help putting a complete heat pump system together? Use our easy System Selector and we’ll do it for you!

Please note that this heat pump equipment comes pre-charged with R-410A liquid refrigerant and by Federal law cannot be released to the atmosphere. Yes, you can purchase this equipment without being EPA certified. And, if you are mechanically inclined you may perform about 90% of the equipment installation yourself. However, we strongly recommend to have a professional heating/cooling contractor do the final part of the installation including managing the refrigerant. An HVAC contractor has the tools and know-how to do this work. Also, having a contractor perform the final startup and inspection of this heat pump validates your warranty with Alpine.

Standard Features

  • High-efficiency compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches

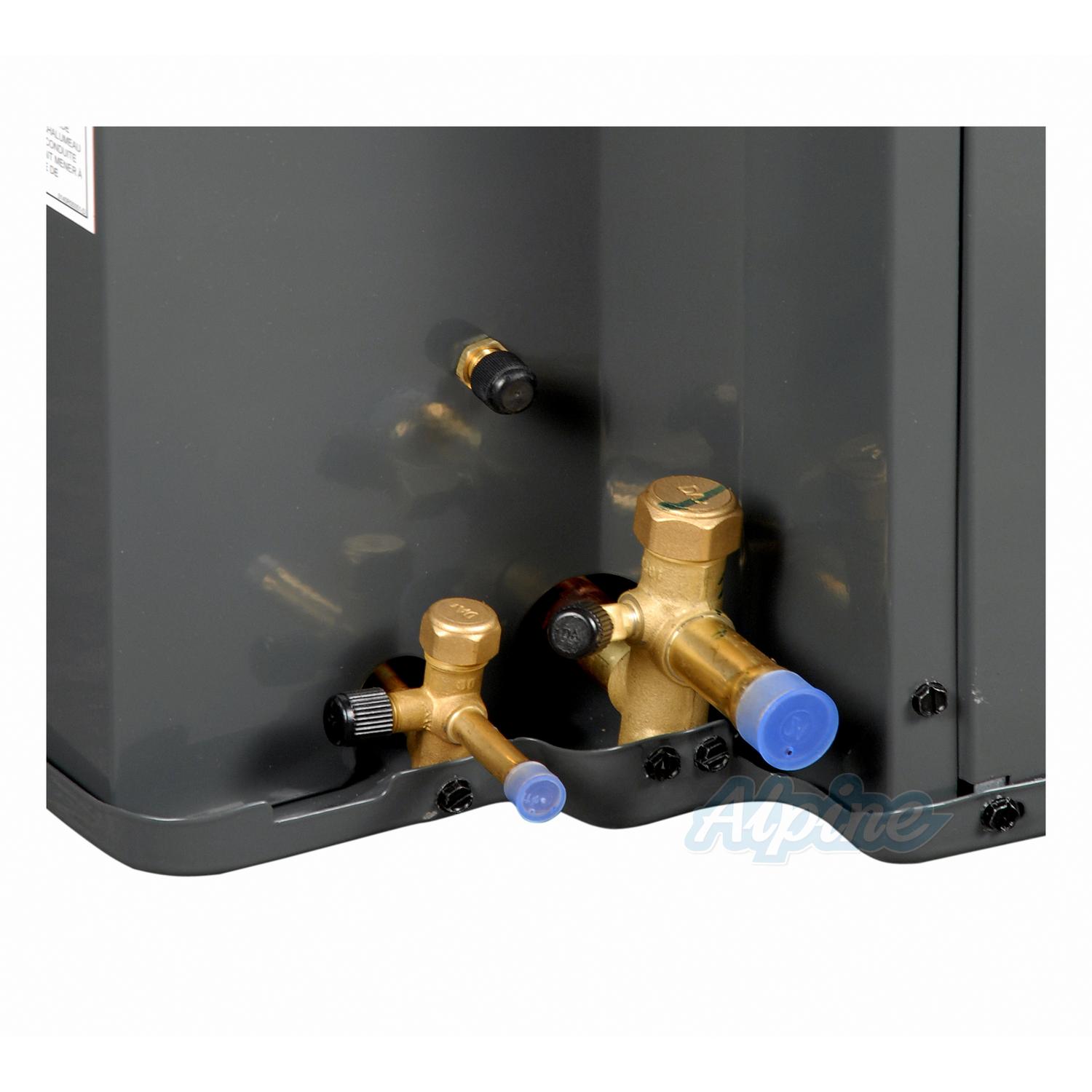

  • Service valves with sweat connections and easy access to gauge ports
  • Copper tube/enhanced aluminum fin coil
  • Fully charged for 15’ of tubing length

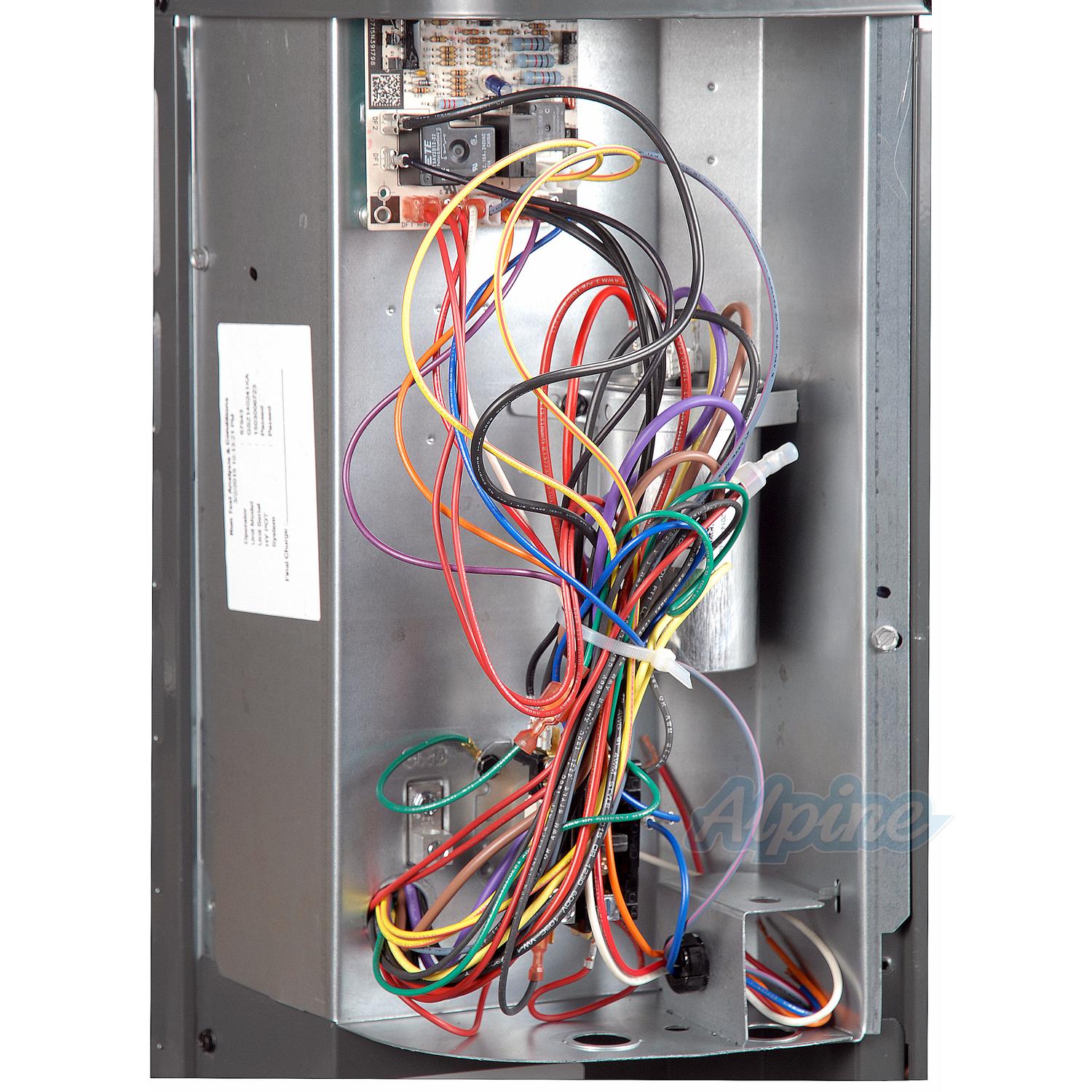

  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified; ETL Listed

Cabinet Features

  • Direct Comfort by Goodman® brand sound control top design
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Service ports and controls are accessible while unit is operating
  • When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds.



Also Consider
Specs
System Information
view information
Stages
Single Stage
view information
TXV Required
No
view information
Refrigerant
R-410A
Features
view information
Low Pressure Safety Switch
Yes
Efficiency
view information
Energy Efficiency Ratio
11.5 - 13.0 EER
view information
SEER
14.0 - 15.0 SEER
view information
Heating Seasonal Performance Factor
8.2 - 9.0 HSPF
Performance
view information
Base Heating Capacity
42000 BTU
view information
Total Cooling Capacity
3.5 Ton(s)
view information
Maximum Heating Capacity
42000 BTU
view information
Base Cooling Capacity
42000 BTU
view information
Compressor Type
Scroll
view information
Noise Level
73 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Maximum Overcurrent Protection (Breaker)
35 Amps
view information
Voltage
208 - 230 Volts
Line Set Information
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
7/8 Inches
Product Dimensions
view information
Width
35 1/2 Inches
view information
Depth
35 1/2 Inches
view information
Height
39 3/4 Inches
view information
Pad Size
36x36 Inches
Product Weight
191 lbs
Shipping Weight
207 lbs
Warranty
view information
Compressor Warranty
10 Years With Online Registration
view information
Parts Warranty
With Online Registration 10 Years
Certifications
view information
Qualifies for Govt. Money
No
view information
Approved for US Region(s)
North / Southeast / Southwest
view information
ENERGY STAR® Certified
No
Reviews
