SND 18,000 BTU DIY Multi Zone Ductless Mini Split ODU & x2 New 9,000 BTU Multi Zone Wall Mounted Ductless Air Handler
SND 18,000 BTU DIY Multi Zone Ductless Mini Split ODU & x2 New 9,000 BTU Multi Zone Wall Mounted Ductless Air Handler
Rated 4.8 out of 5. (137 Reviews)
Model: Blueridge BDM1A18SC0-BDM1A09WM0-BDM1A09WM0 SND-KIT
Rated 4.8 out of 5. (137 Reviews)
Model: Blueridge BDM1A18SC0-BDM1A09WM0-BDM1A09WM0 SND-KIT
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$2,360.00
In stock
Or as low as
Qty:
In Stock and Ready to Ship
Includes
Services

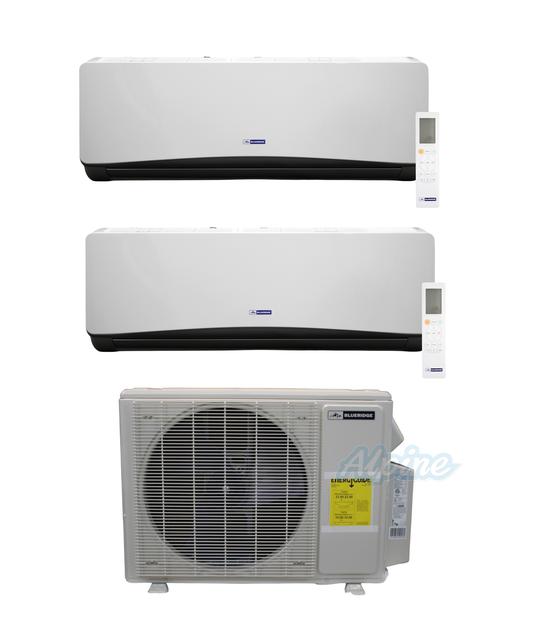

Save money with this Blueridge Scratch 'N Dent Kit! This bundle includes a Blueridge BDM1A18SC0 18,000 BTU Three Zone DIY Multizone Mini Split Outdoor Condenser, along with x2 Blueridge BDM1A09WM0 9,000 BTU DIY Wall Mount Ductless Mini Split Indoor Air Handler, R-454B, 220V, DM1 Series, WiFi Ready (L10: 1/4 LL 3/8 SL). Because these items are functionally compatible we have greatly discounted this package, resulting in substantial SAVINGS for you!

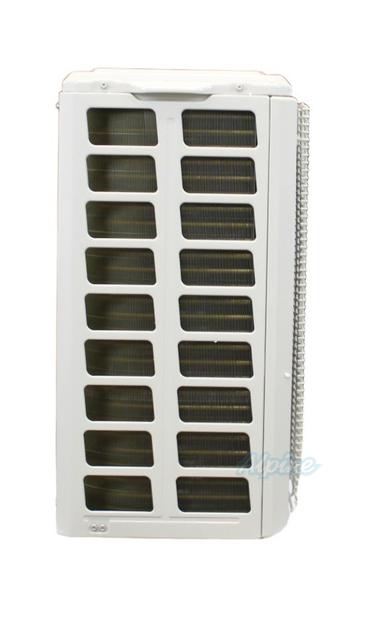

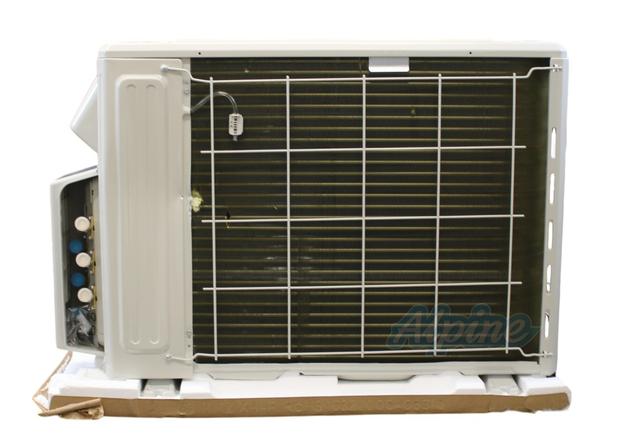

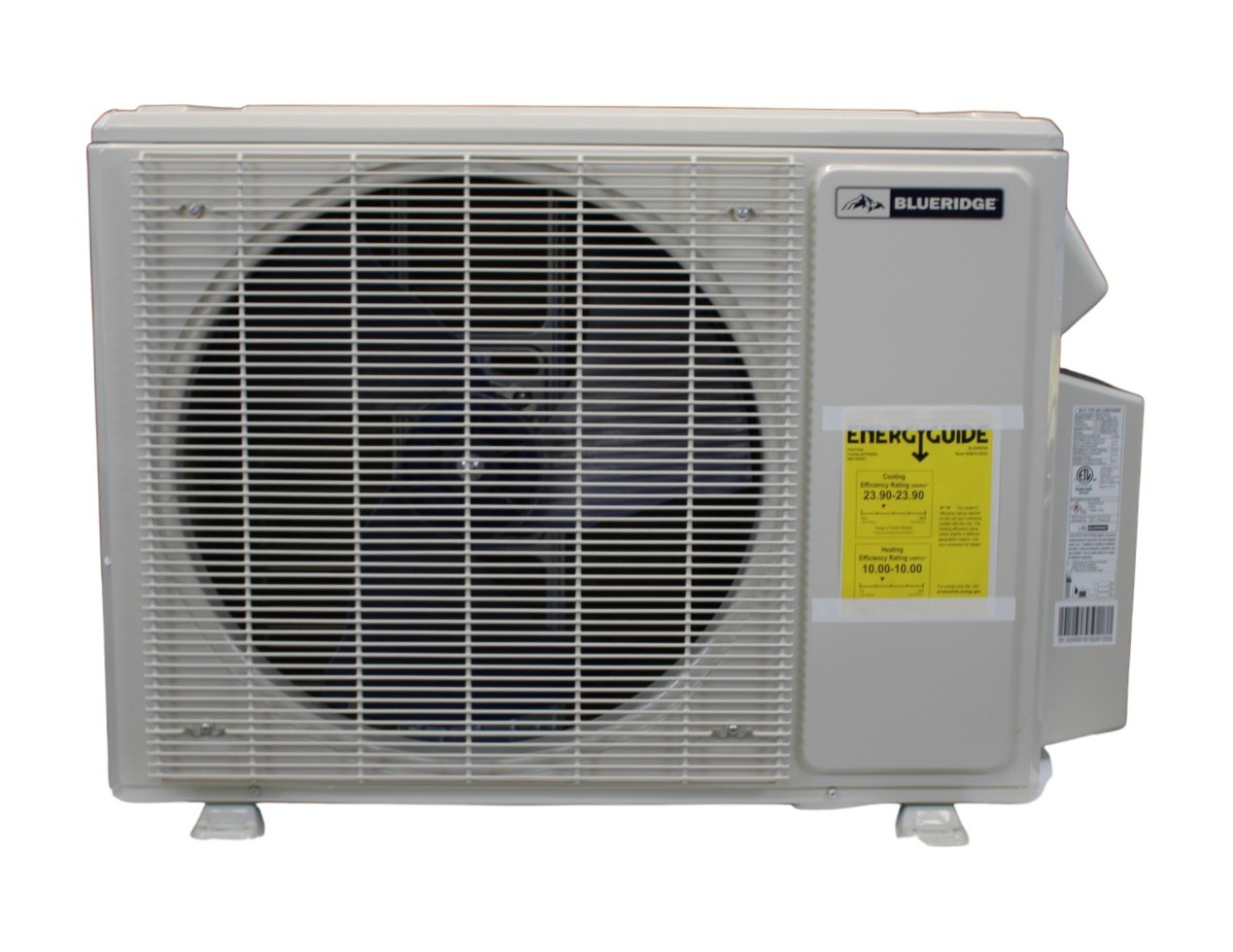

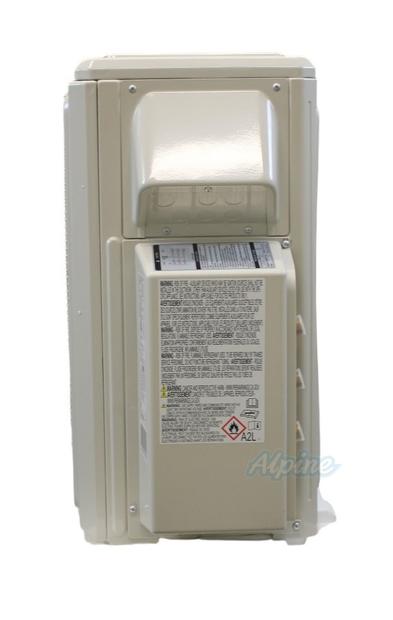

SND (BDM1A18SC0) 18,000 BTU Three Zone DIY Multizone Mini Split Outdoor Condenser

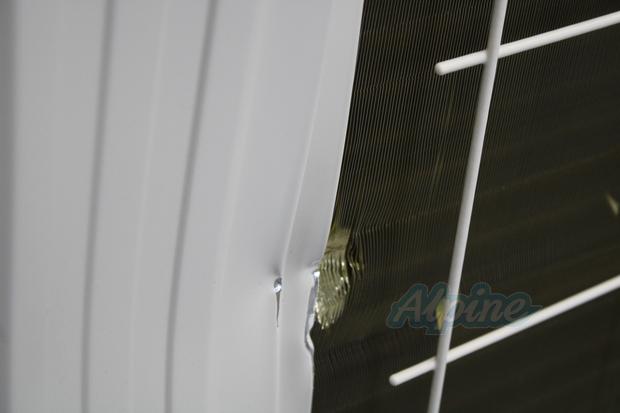

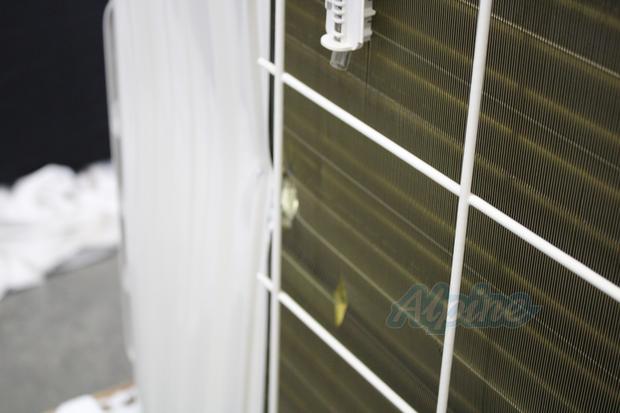

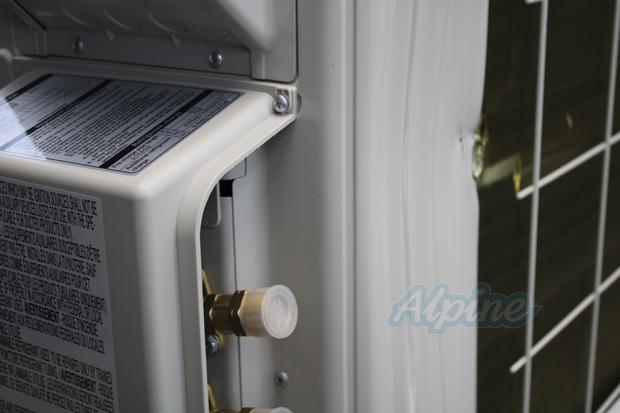

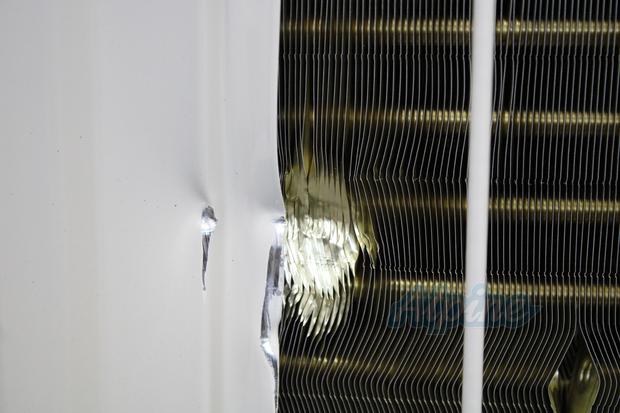

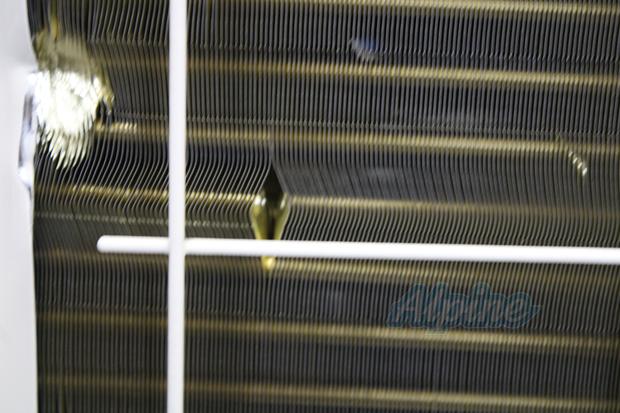

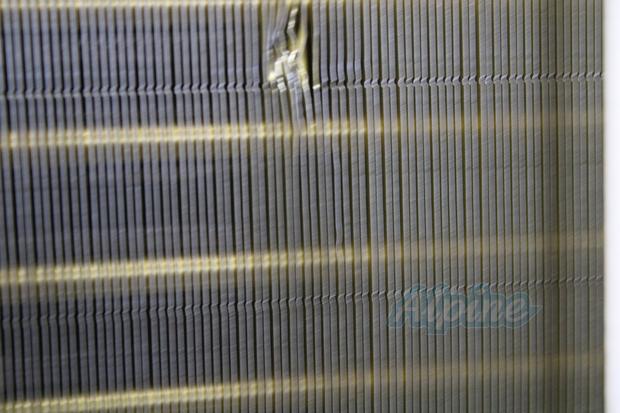

has some cosmetic damage incurred during shipping. Coil damage and dent to the right clap board.

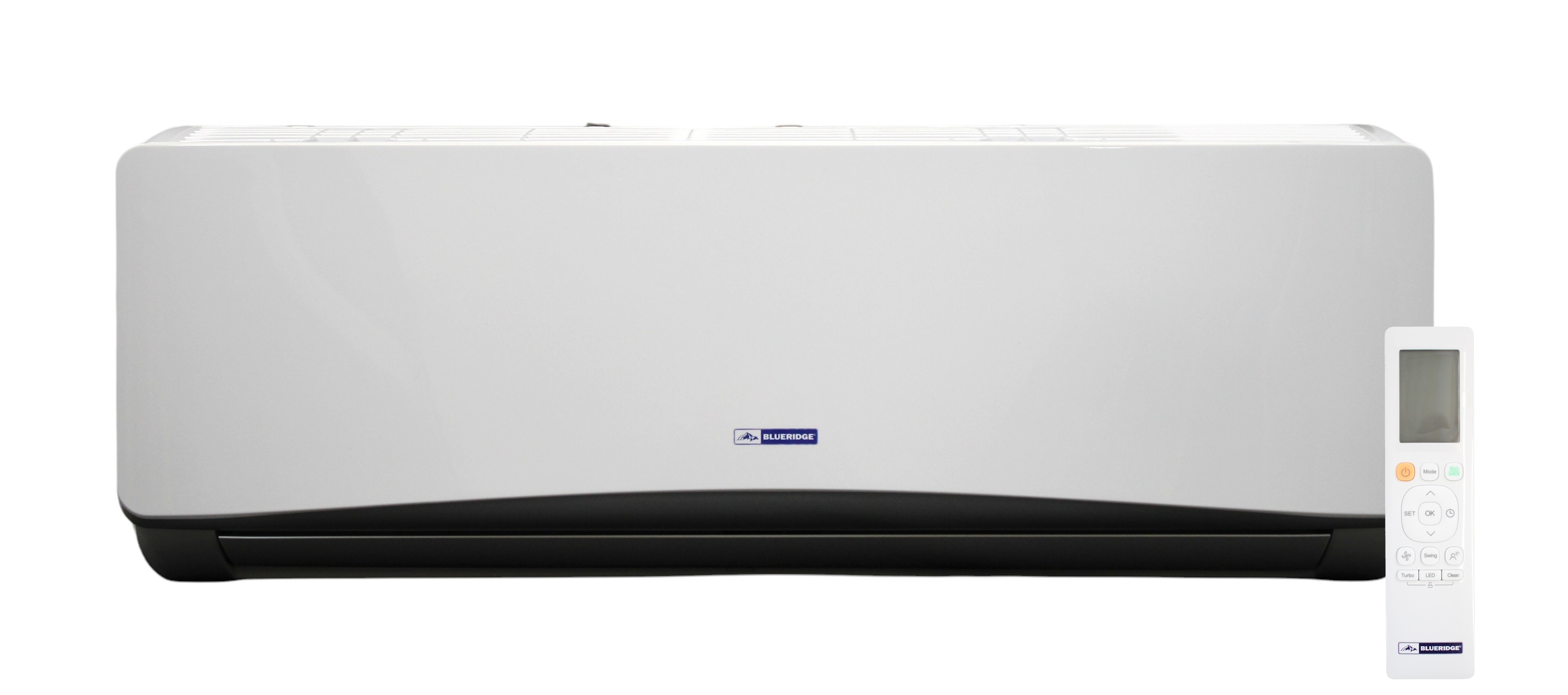

x2 NEW (BDM1A09WM0) 9,000 BTU DIY Wall Mount Ductless Mini Split Indoor Air Handler, R-454B, 220V, DM1 Series, WiFi Ready (L10: 1/4 LL 3/8 SL)
Brand New
Click the links below to check each component's specifications and documentation.
This system includes:
|
|
|
|
|
x2 NEW BDM1A09WM0
|
|
|
System Information
Mini-Split System Type
Heating / Cooling
Indoor Unit(s) Capacity
9,000 + 9,000 BTU
Multi Zone Mini-Split Series
DM1: DIY
Indoor Air Handler Type(s)
Wall Mount
Zones
2
Product Type
Split-System Bundle
Single Vs. Multi-Zone
Multi-zone
Features
WIFI (2.4GHz)
Yes (With Adapter)
Efficiency
SEER2
23.9 SEER2
EER2
13 EER2
HSPF2
10 HSPF2
Coefficient of Performance at 5° F
2.3
Coefficient of Performance (at 47 F)
3.8 COP
Refrigerant Readiness
Primary Refrigerant
R-454B
Factory Precharge
73.8 Feet
Mobile Home Compatible
Yes
Performance
Tonnage
1.5 Ton(s)
Low Output Cool
5400 BTU
Low Output Heat
5700 BTU
High Output Cool
18000 BTU
High Output Heat
18000 BTU
Stages of Heat
Inverter
Stages of Cool
Inverter
Compressor Type
Inverter
Sound Rating, Indoor
19.5 / 20.5 / 33 / 38 Decibels
Sound Rating, Outdoor
60 Decibels
Ambient Temperature Range (Cooling)
-13 / 122 °F
Ambient Temperature Range (Heating)
-13 / 75 °F
Low Ambient Cooling
Yes
Lowest Ambient Temperature (Heating)
-13 °F
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
16 Amps
Maximum Fuse/Breaker
20 Amps
Line Set Information
Lineset Compatibility Code
L10
Liquid Line Size (OD)
(2) 1/4 DIY Inches
Suction Line Size (OD)
(2) 3/8 DIY Inches
Line Set Connection Type
Quick Connect
Maximum Line Length per Zone
73.8 Feet
Maximum Line Length all Zones
172.2 Feet
Maximum Height Difference
32.8 Feet
Product Dimensions
Indoor Air Handler Size, W x H x D
Multiple Sizes - See Documentation Inches
Outdoor Condenser Size, W x H x D
35.04 x 26.5 x 13.46 Inches
Footprint Mounting Holes (W x D)
26.1 x 13.7 Inches
Outdoor Condenser Weight
101.63 Lbs
Indoor Air Handler Weight
Multiple Weights - See Documentation Lbs
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
AHRI#
216997632
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® ID
3997948
ENERGY STAR® Certified
Yes
Qualified Manufacturer ID (QMID)
R4M0
