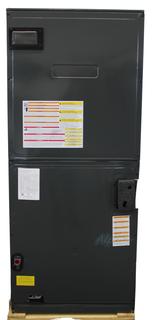

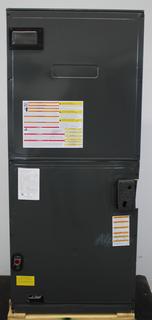

4 Ton Standard Multi-Positional Air Handler

4 Ton Standard Multi-Positional Air Handler

Model: Goodman ASPT49D14 (Item No. 699464)

Actual product may vary from photos.

Model: Goodman ASPT49D14 (Item No. 699464)

Sturdy design for long term durability

Engineered for use in multiple configurations

Built for simple installation and easy maintenance

Peace of mind with 10 year warranty (with registration)

$1,15000
Or as low as

Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

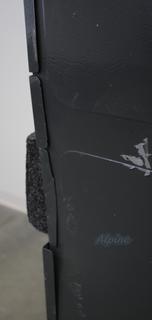

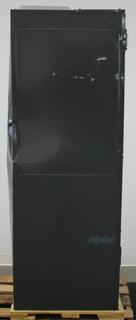

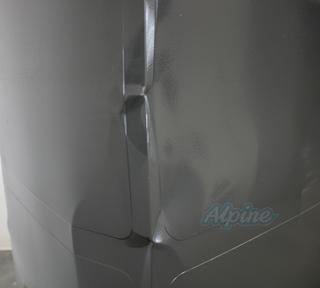

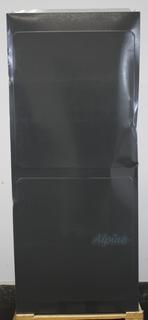

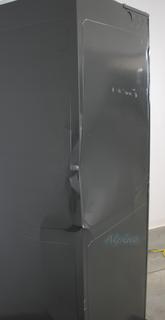

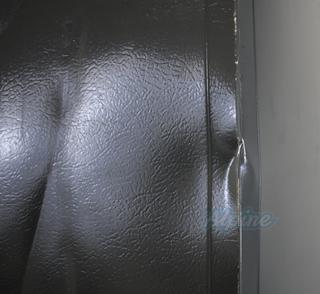

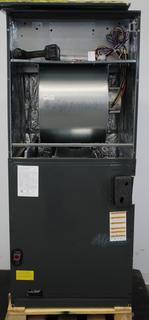

This Goodman ASPT49D14 4 Ton Multi-Positional Air Handler w/ EEM Blower has some cosmetic damage incurred during shipping. This unit is has dents and scratches on all sides.  For detailed photos please click 'See Additional Images' above. This Goodman ASPT49D14 4 Ton Multi-Positional Air Handler w/ EEM Blower meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

The Goodman ASPT Multi-Position Air Handler with EEM (Energy-Saving) Motor is suitable for use with R-410A refrigerant and may be installed in a variety of locations.  This air handler features a SmartFrame™ sub-structure that adds lateral stability, mounting locations for internal components, and additional insulation retention.

 For Tips for Selecting Matched Components and Line Sets click here.

Standard Features

  • Direct-drive, multi-speed ECM motor
  • Internal factory-mounted TXV valve
  • Transformer and blower time-delay on all units
  • All-Aluminum coil
  • Easy single-bulb UV light compatibility
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • AHRI Certified; ETL Listed

Cabinet Features

  • New rigid SmartFrame™ cabinet
  • 21” depth for easy attic access
  • DecaBDE-free thermoplastic drain pan
  • Galvanized, leather grain-embossed finish
  • Foil-faced insulation covers the internal blower case to reduce operating sound and cabinet condensation
  • Glue-less cabinet insulation retention
  • Screw-less sides & back reduces potential condensation
  • Easily convertible multi-position capability: upflow, downflow or horizontal
  • Coil-mounting track for quick repositioning
  • Tool-less filter access
  • Multiple independent electrical knockouts
  • Heavy-gauge bottom plate

If your air handler will be installed above a conditioned space, your local code may require a secondary drain pan. See Accessories for details.

Specs
System Information
view information
Configuration
Downflow / Horizontal / Upflow
view information
Fuel Type
Electricity
view information
Requires Downflow Kit
Yes
Equipment Type
Air Handler
view information
TXV Required
No
view information
Refrigerant
R-410A
Performance
view information
Blower Cooling Capacity
4 Tons
view information
Blower Type
High Efficiency Multi-Speed
view information
Electric Heat Capabilities (Optional)
10 / 15 / 20 / 5 / 8 Kilowatts
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Maximum Overcurrent Protection (Breaker)
15 Amps
view information
Voltage
208 / 230 / 240 Volts
Line Set Information
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
7/8 Inches
Product Dimensions
view information
Width
24 1/2 Inches
view information
Depth
21 Inches
view information
Height
58 Inches
view information
Cabinet/Chassis Size
D
Product Weight
167 lbs
Shipping Weight
167 lbs
Important Measurements
view information
Supply Air Opening Size
23.3125 x 11.3 Inches
view information
Return Air Opening Size
21.1875 x 19.5 inches
Warranty
view information
Parts Warranty
With Online Registration 10 Years
