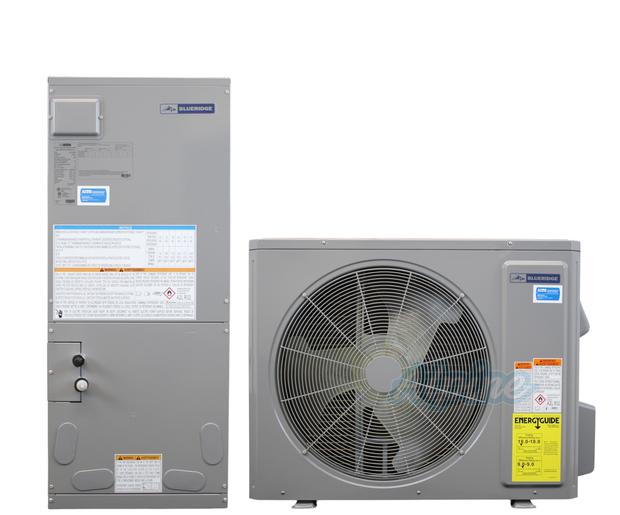

24,000 BTU 18.5 SEER2 Ultra Efficient Inverter Heat Pump AHU Complete System

24,000 BTU 18.5 SEER2 Ultra Efficient Inverter Heat Pump AHU Complete System

Model: Blueridge BNG2Z30SCN-24DH

  • Thumbnail of Blueridge BNG2Z30SCN-24DH 24,000 BTU 18.5 SEER2 Ultra Efficient Inverter Heat Pump AHU Complete System 63674
  • Thumbnail of Blueridge BNG2Z30SCN-24DH 24,000 BTU 18.5 SEER2 Ultra Efficient Inverter Heat Pump AHU Complete System 63655
  • Thumbnail of Blueridge BNG2Z30SCN-24DH 24,000 BTU 18.5 SEER2 Ultra Efficient Inverter Heat Pump AHU Complete System 63563
  • Thumbnail of Blueridge BNG2Z30SCN-24DH 24,000 BTU 18.5 SEER2 Ultra Efficient Inverter Heat Pump AHU Complete System 63656
  • Thumbnail of Blueridge BNG2Z30SCN-24DH 24,000 BTU 18.5 SEER2 Ultra Efficient Inverter Heat Pump AHU Complete System 63657
  • Thumbnail of Blueridge BNG2Z30SCN-24DH 24,000 BTU 18.5 SEER2 Ultra Efficient Inverter Heat Pump AHU Complete System 63658
  • + 21 More
    Thumbnail of Blueridge BNG2Z30SCN-24DH 24,000 BTU 18.5 SEER2 Ultra Efficient Inverter Heat Pump AHU Complete System 63659

Model: Blueridge BNG2Z30SCN-24DH

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

checkmark icon
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

The Blueridge 24,000 BTU 18.5 SEER2 Ultra Efficient Ducted Heat Pump/Air Handler System is a high performing, and versatile heating and cooling product. This system requires a compatible 24V thermostat for operation. This is a heat pump that can cool better than most air conditioners, heat better than virtually any other heat pump, compete with traditional furnaces in cold weather, and reduce energy consumption thanks to its sophisticated internal controls. It even comes with new technology that makes HVAC installation faster and simpler than a traditional heat pump.
These models are designed to run consistently at low output levels to maintain optimal temperatures in your space but can ramp up their output as needed. This type of operation enhances airflow through your structure, greatly improves efficiency, optimizes air filtration (especially if paired with a media or electronic air cleaner), and does a better job dehumidifying when in cooling mode than nearly any other type of cooling system.
The system uses advanced inverter technology to modulate its heating and cooling output based on demand. When paired with a compatible 24V thermostat, the indoor fan cycles on and off normally with each heating and cooling call, while the outdoor unit adjusts its compressor speed to match your space's needs. This communication between components allows the system to optimize efficiency and comfort throughout operation.








System Features


Inverter Compressor
Designed to run only as hard as needed to maintain optimal temperatures in your space while minimizing electrical consumption.

Variable Speed Blower
Provides even air distribution throughout your home to optimize comfort.

Energy Efficient
Experience the right airflow volume in each space with a unit that automatically adjusts based on the ducting length.

Quiet Operation
Create more peaceful, comfortable spaces with ultra-quiet operation that reduces noise pollution.

Easy & Flexible Installation
Install the unit vertically or horizontally for multi-directional air flow possibilities and increased flexibility.

Third-Party Thermostat Compatibility
Experience seamless integration — without extra kits — with a built-in 24V interface that’s compatible with third-party thermostats.


This System Includes*





Blueridge BNG2Z30SCN x1
30,000 BTU 18.5 SEER2 Inverter Outdoor Condenser






Blueridge BNGFZ24DH0 x1
24,000 BTU 18.5 SEER  Air Handler Unit



Specs
System Information
Configuration
Downflow / Horizontal / Upflow
Indoor Air Handler Type(s)
Air Handler
Zones
1
Connection Type
Flare
Fuel Type
Electricity
System Type
Heat Pump and Air Handler
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
Yes (With Wifi Capable Thermostat)
Efficiency
SEER2
18.5 SEER2
EER2
11.7 EER2
HSPF2
8.3 HSPF2
Coefficient of Performance at 5° F
1.75
Coefficient of Performance (at 47 F)
3.46 COP
Refrigerant Readiness
Primary Refrigerant
R-32
Factory Precharge
25 Feet
Mobile Home Compatible
No
RDS (Refrigerant Detection System) On-Board
No
Additional Charge per Foot (3/8LL 3/4SL)
0.215
Additional Charge per Foot (1/4LL)
0.215
Performance
Tonnage
2 Ton(s)
High Output Cool
24000 BTU
High Output Heat
24000 BTU
Electric Heat Capabilities (Optional)
10 / 5 / 8 Kilowatts
Compressor Type
Inverter
Sound Rating, Indoor
50 Decibels
Sound Rating, Outdoor
58 Decibels
Ambient Temperature Range (Cooling)
118 / 5 °F
Ambient Temperature Range (Heating)
5 / 75 °F
Low Ambient Cooling
Yes
Lowest Ambient Temperature (Heating)
5 °F
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
21.6 Amps
Maximum Fuse/Breaker
25 Amps
Air Handler Breaker Size
15 Amps
Line Set Information
Lineset Compatibility Code
L05
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Line Set Connection Type
Flare
Maximum Line Length per Zone
98.4 Feet
Maximum Height Difference
49.2 Feet
Product Dimensions
Indoor Air Handler Size, W x H x D
18.11 x 21.26 x 43.5 Inches
Outdoor Condenser Size, W x H x D
36.25 x 29.38 x 14.56 Inches
Footprint Mounting Holes (W x D)
24 x 15.56 Inches
Outdoor Condenser Weight
113.5 Lbs
Indoor Air Handler Weight
144.4 Lbs
Pad Size
18x38 Inches
Important Measurements
Return Air Opening Size
18.13 x 21.25 inches
Supply Air Opening Size
16.75 x 11.63 Inches
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
AHRI#
217992600
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
No
Qualified Manufacturer ID (QMID)
R4M0
