90,000 BTU Furnace, 80% Efficiency, Single-Stage Burner, 1,600 CFM High-Efficiency Blower, Upflow/Horizontal Flow Application

90,000 BTU Furnace, 80% Efficiency, Single-Stage Burner, 1,600 CFM High-Efficiency Blower, Upflow/Horizontal Flow Application

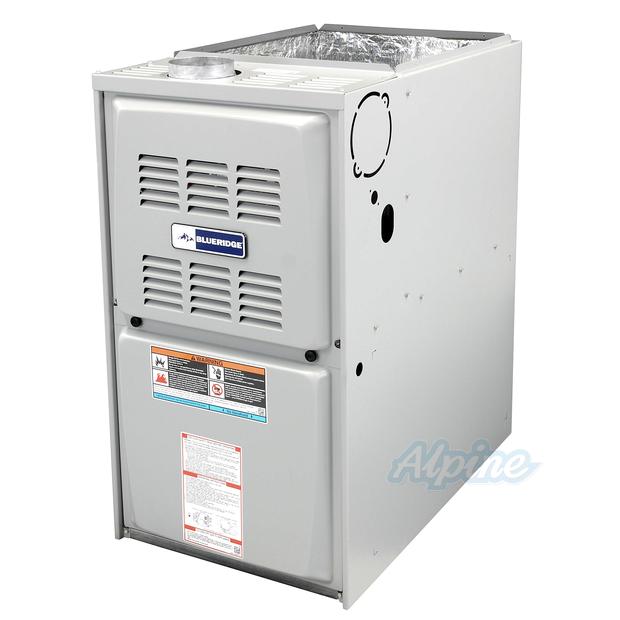

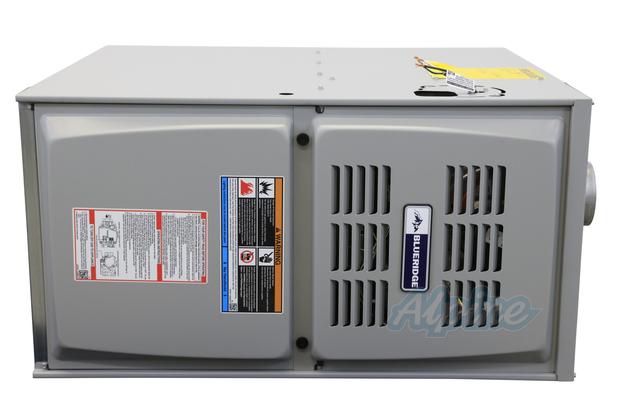

Model: Blueridge BG801UH090BE16

Actual product may vary from photos.

Model: Blueridge BG801UH090BE16

Whisper quiet operation

Efficient heating performance

Engineered for use in multiple configurations

Peace of mind with 10 year warranty (with registration)

checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights
view information

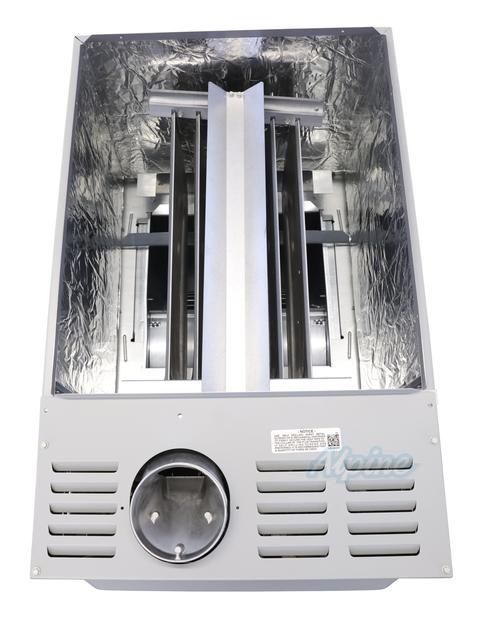

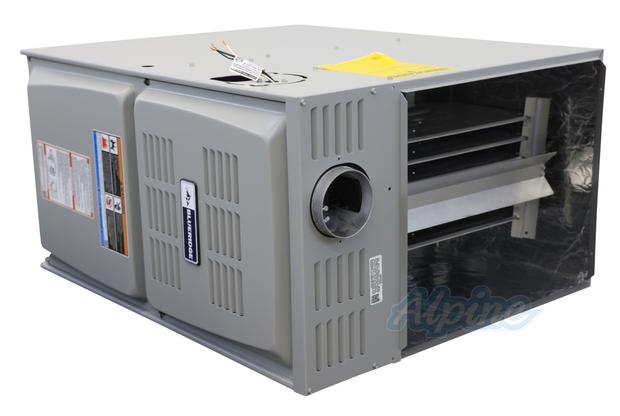

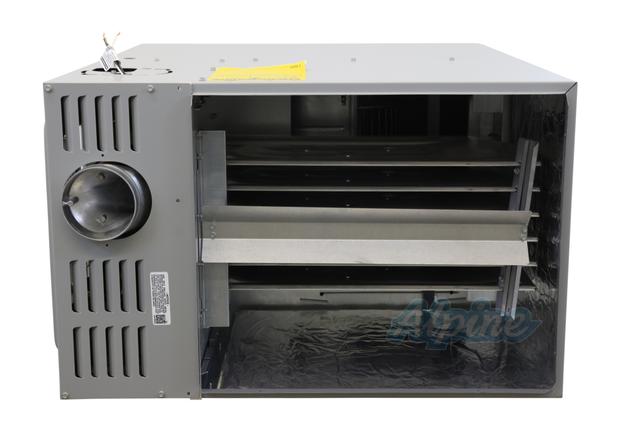

This is a Horizontal / Upflow unit.

view information

To use LP fuel, this unit requires an LP Conversion Kit. See Accessories

Blueridge BG801

Blueridge means quality. The Blueridge BG801E series furnaces are 80% AFUE single-stage,with high-efficiency blowers, and are a good balance of low up-front cost and sturdydesign to save you money. The ECM blower motor supports higher SEER air conditioningequipment, which means lower electric bills.

Every Blueridge furnace is run-tested at the factory and covered by a 10 year limitedparts warranty plus a lifetime heat exchanger warranty.

Furnace Series
This Product
BG801E
BG802E
BG802V
BG921E
BG951E
BG952V
BG961E
BG962V
Fuel Efficiency
80%
80%
80%
92%
95%
95%
96%
96%
Blower Motor
High Efficiency Multi-Speed
High Efficiency Multi-Speed
Ultra-High Efficiency Variable Speed
High Efficiency Multi-Speed
High Efficiency Multi-Speed
Ultra-High Efficiency Variable Speed
High Efficiency Multi-Speed
Ultra-High Efficiency Variable Speed
Burner Stages
1
2
2
1
1
2
1
2
Efficiency Rating
Annual Fuel Utilization Efficiency (AFUE) is a standardized measureof how efficiently your furnace can recover heat from the combustion process.The higher the AFUE %, the more heat you will get per unit of fuel.
This Product
80%
92%
95%
96%
OPERATING COST
80¢ of every $1 heats home 20¢ lost as exhaust
92¢ of every $1 heats home 8¢ lost as exhaust
95¢ of every $1 heats home 5¢ lost as exhaust
96¢ of every $1 heats home 4¢ lost as exhaust
VENT TYPE
view information
Metal B Vent Vertical through roof
Plastic PVC Intake and exhaust, roof or sidewall
Plastic PVC Intake and exhaust, roof or sidewall
Plastic PVC Intake and exhaust, roof or sidewall
PRODUCES CONDENSATION
view information
No
Yes
Yes
Yes
Blower Motor
The blower motor turns the fan (blower) that circulates air through the furnace into your home.
This Product
High Efficiency Multi-Speed
Ultra-High Efficiency Variable Speed
Rank
Better
Best
Benefit
35% more efficient than standard efficiency motor
Most efficient, quietest, and best comfort
Burner Type
Burners are the place inside the furnace where fuel is burnedto create heat. There are two types. Single stage burners operate at 100% capacity.Two stage burners allow the furnace to operate at 65% (first stage) or 100%for increased efficiency and comfort.
This Product
Single Stage Burner
Two Stage Burner
Quality
Good Industry standard, simple, effective
Best Stabilizes room temperatures, quieter, more efficient
Description
Burner and fan operate at max capacity when furnace is on
Burner and fan automatically operate in “high” or “low” based on conditions
Choose If
Lower up-front cost fits your budget
You want lower utility bills and better heat distribution
Reasons You'll Love Your Blueridge Gas Furnace
It's Guaranteed Reliable
Tighter spaces between burners means less oxidation
Tighter spaces between burners means less oxidation
Taller carryover gap means less buildup of combustion by-products
Taller carryover gap means less buildup of combustion by-products
No-kink, square pressure switch tubing
No-kink, square pressure switch tubing
Lifetime warranty on heat exchangers, 10 year warranty on all other parts
Lifetime warranty on heat exchangers, 10 year warranty on all other parts
Model series BG951 shown.
Superior Burner Technology
Air channeling and wing-shaped design heat exchanger for maximum heat transfer
Air channeling and wing-shaped design heat exchanger for maximum heat transfer
Aluminized steel primary, stainless steel secondary heat exchangers
Aluminized steel primary, stainless steel secondary heat exchangers
No-weld, patented clamshell heat exchanger design eliminates hot spots
No-weld, patented clamshell heat exchanger design eliminates hot spots
One-piece burner design for cleaner performance, longer life
One-piece burner design for cleaner performance, longer life
Model series BG951 shown.
It's Easy To Install
Patented collector box allows for no-step conversion to horizontal - just lean it over
Patented collector box allows for no-step conversion to horizontal - just lean it over
Thumbscrew front cover access - no tool required
Thumbscrew front cover access - no tool required
Smart design features cuts installation time by 60 mins
Smart design features cuts installation time by 60 mins
One-tool design, all inside fasteners are the same size
One-tool design, all inside fasteners are the same size
Self-aligning guides and built-in support channels designed into all major components
Self-aligning guides and built-in support channels designed into all major components
Model series BG951 shown.
It's Super Quiet
Sequential ignition across smaller burners means no "whoosh" on startup
Sequential ignition across smaller burners means no "whoosh" on startup
Solid state ignition means no multiple clicking sounds when furnace lights
Solid state ignition means no multiple clicking sounds when furnace lights
Thicker sheet metal, cabinet reinforcements result in a rigid, vibration-free chassis
Thicker sheet metal, cabinet reinforcements result in a rigid, vibration-free chassis
Foil faced insulation blanket stops noise transmission and heat loss
Foil faced insulation blanket stops noise transmission and heat loss
Model series BG951 shown.
Listen To How Quiet A Blueridge Furnace Is
Hear What Blueridge Furnace Owners Are Saying
Specs
System Information
view information
Base Altitude Range
0-4500 ft.
view information
Configuration
Horizontal / Upflow
view information
Fuel Type
LP Capable (Kit Required) / Natural Gas
Efficiency
view information
Efficiency (% AFUE)
80 %
Performance
view information
Maximum Input BTU
88000 BTU
view information
Maximum Heating Capacity
71000 BTU
view information
Maximum CFM
1663 @ 0.5
view information
Blower Cooling Capacity
2.5 / 3 / 3.5 / 4 Tons
view information
Blower Type
High Efficiency Multi-Speed
view information
Burner Stages
Single
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Maximum Overcurrent Protection (Breaker)
15 Amps
view information
Voltage
120 Volts
Product Dimensions
view information
Width
17 1/2 Inches
view information
Depth
28 3/8 Inches
view information
Height
33.000000000 Inches
view information
Cabinet/Chassis Size
B
Product Weight
142 lbs
Shipping Weight
142 lbs
Important Measurements
view information
Vent Connection
4 Inches
view information
Supply Air Opening Size
16 3/8 x 19 1/2 Inches
view information
Return Air Opening Size
23 x 14 inches
view information
Flue Pipe Diameter
4
Warranty
view information
Heat Exchanger Warranty
Lifetime w/ online registration
view information
Parts Warranty
With Online Registration 10 Years
Certifications
view information
California Approved Furnace
No
view information
Ultra-Low NOx
No
view information
Qualifies for Govt. Money
No
view information
Emission Standard
Standard
view information
ENERGY STAR® Certified
No
