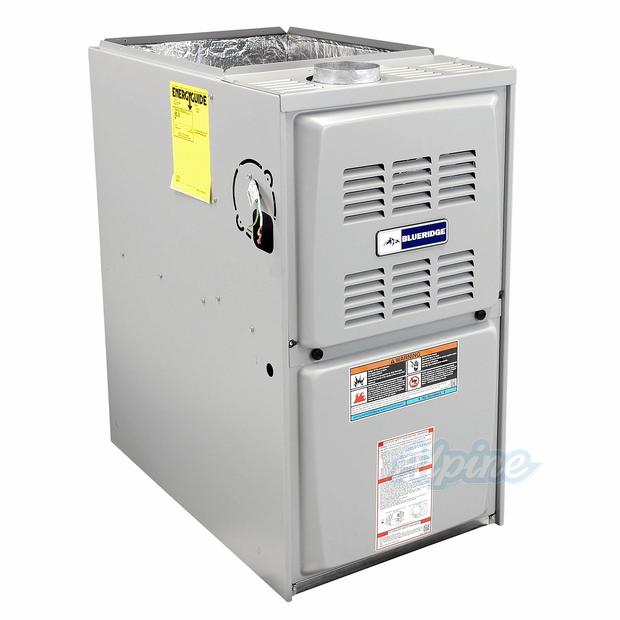

110,000 BTU Furnace, 80% Efficiency, Two-Stage Burner, 2,000 CFM Variable-Speed Blower, Upflow/Horizontal Flow Application
110,000 BTU Furnace, 80% Efficiency, Two-Stage Burner, 2,000 CFM Variable-Speed Blower, Upflow/Horizontal Flow Application
Model: Blueridge BG802UH110CV20
Model: Blueridge BG802UH110CV20
$1,31000
Or as low as
Qty:
In Stock and Ready to Ship
Add On
BG11K48 2-Stage Blueridge Furnace LP Conversion Kit - For Elevation Below 7500 ft.
$159.99
Media Air Cleaner, 6 3/4W x 25 1/2D x 20 3/16H inch, MERV 11
$199.99
Lyric T6 Pro Wi-Fi Programmable Thermostat with stages up to 3 Heat/2 Cool Heat Pump or 2 Heat/2 Cool (compatible with Alexa and Google Assistant)
$229.99
Includes
Services
- Contractor Referral Assistance (Not Installation Service) (Learn More)
highlights
This is a Horizontal / Upflow unit.
To use LP fuel, this unit requires an LP Conversion Kit. See Accessories
Blueridge means quality. The Blueridge BG802V series of 80% AFUE, two-stage gas furnaceshave ultra-high efficiency variable speed blowers to provide quiet, even heat throughoutyour home.Match this furnace with high-SEER air conditioning equipment for unbeatablecomfort and efficiency.
Every Blueridge furnace is run-tested at the factory and covered by a 10 year limitedparts warranty plus a lifetime heat exchanger warranty.
Furnace Series
This Product
BG801E
BG802E
BG802V
BG921E
BG951E
BG952V
BG961E
BG962V
BG972V
Fuel Efficiency
80%
80%
80%
92%
95%
95%
96%
96%
97%
Blower Motor
High Efficiency Multi-Speed
High Efficiency Multi-Speed
Ultra-High Efficiency Variable Speed
High Efficiency Multi-Speed
High Efficiency Multi-Speed
Ultra-High Efficiency Variable Speed
High Efficiency Multi-Speed
Ultra-High Efficiency Variable Speed
Ultra-High Efficiency Variable Speed
Burner Stages
1
2
2
1
1
2
1
2
2
Efficiency Rating
Annual Fuel Utilization Efficiency (AFUE) is a standardized measureof how efficiently your furnace can recover heat from the combustion process.The higher the AFUE %, the more heat you will get per unit of fuel.
This Product
80%
92%
95%
96%
97%
OPERATING COST
80¢ of every $1 heats home 20¢ lost as exhaust
92¢ of every $1 heats home 8¢ lost as exhaust
95¢ of every $1 heats home 5¢ lost as exhaust
96¢ of every $1 heats home 4¢ lost as exhaust
97¢ of every $1 heats home 3¢ lost as exhaust
VENT TYPE
Metal B Vent Vertical through roof
Plastic PVC Intake and exhaust, roof or sidewall
Plastic PVC Intake and exhaust, roof or sidewall
Plastic PVC Intake and exhaust, roof or sidewall
Plastic PVC Intake and exhaust, roof or sidewall
PRODUCES CONDENSATION
No
Yes
Yes
Yes
Yes
Blower Motor
The blower motor turns the fan (blower) that circulates air through the furnace into your home.
This Product
High Efficiency Multi-Speed
Ultra-High Efficiency Variable Speed
Rank
Better
Best
Benefit
35% more efficient than standard efficiency motor
Most efficient, quietest, and best comfort
Burner Type
Burners are the place inside the furnace where fuel is burnedto create heat. There are two types. Single stage burners operate at 100% capacity.Two stage burners allow the furnace to operate at 65% (first stage) or 100%for increased efficiency and comfort.
This Product
Single Stage Burner
Two Stage Burner
Quality
Good Industry standard, simple, effective
Best Stabilizes room temperatures, quieter, more efficient
Description
Burner and fan operate at max capacity when furnace is on
Burner and fan automatically operate in “high†or “low†based on conditions
Choose If
Lower up-front cost fits your budget
You want lower utility bills and better heat distribution
Reasons You'll Love Your Blueridge Gas Furnace
It's Guaranteed Reliable
Tighter spaces between burners means less oxidation
Taller carryover gap means less buildup of combustion by-products
No-kink, square pressure switch tubing
Lifetime warranty on heat exchangers, 10 year warranty on all other parts
Model series BG951 shown.
Superior Burner Technology
Air channeling and wing-shaped design heat exchanger for maximum heat transfer
Aluminized steel primary, stainless steel secondary heat exchangers
No-weld, patented clamshell heat exchanger design eliminates hot spots
One-piece burner design for cleaner performance, longer life
Model series BG951 shown.
It's Easy To Install
Patented collector box allows for no-step conversion to horizontal - just lean it over
Thumbscrew front cover access - no tool required
Smart design features cuts installation time by 60 mins
One-tool design, all inside fasteners are the same size
Self-aligning guides and built-in support channels designed into all major components
Model series BG951 shown.
It's Super Quiet
Sequential ignition across smaller burners means no "whoosh" on startup
Solid state ignition means no multiple clicking sounds when furnace lights
Thicker sheet metal, cabinet reinforcements result in a rigid, vibration-free chassis
Foil faced insulation blanket stops noise transmission and heat loss
Model series BG951 shown.
Listen To How Quiet A Blueridge Furnace Is
Hear What Blueridge Furnace Owners Are Saying
Specs
System Information
Configuration
Horizontal / Upflow
Fuel Type
LP Capable (Kit Required) / Natural Gas
Base Altitude Range
0-4500 ft.
Product Type
Gas Furnace
Efficiency
Efficiency (% AFUE)
80 %
Refrigerant Readiness
Primary Refrigerant
R-410A
Secondary Refrigerant
R-22 / R-32 / R-454B
Refrigerant Family Support
R-22 / R-32 / R-454B
Mobile Home Compatible
No
RDS (Refrigerant Detection System) On-Board
No
Performance
Minimum Heat Input
71500 BTU
Minimum Heat Output
57000 BTU
Maximum Heat Input
110000 BTU
High Output Heat
87000 BTU
Stages of Heat
Two
Blower Cooling Capacity
2 / 2.5 / 3 / 3.5 / 4 / 5 Tons
Blower Type
Variable Speed
Maximum CFM
2175 @ 0.5
Electrical Information
Voltage
120 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
20 Amps
Maximum Fuse/Breaker
20 Amps
Product Dimensions
Cabinet/Chassis Size
C
Width
21 Inches
Depth
28 3/8 Inches
Height
33 Inches
Product Weight
181 lbs
Shipping Weight
181 lbs
Compatibility
Multi-Stage Compressor Compatible
Yes
Cross-Brand Compatibility: R-410A Air Conditioner
Yes
Cross-Brand Compatibility: R-32 Air Conditioner
Yes
Cross-Brand Compatibility: R-454B Air Conditioner
Yes
Cross-Brand Compatibility: R-410A Heat Pump
Yes
Cross-Brand Compatibility: R-32 Heat Pump
Yes
Cross-Brand Compatibility: R-454B Heat Pump
Yes
Cross-Brand Compatibility: R-410A Evaporator Coil
Yes
Cross-Brand Compatibility: R-32 Evaporator Coil
Yes
Cross-Brand Compatibility: R-454B Evaporator Coil
Yes
Important Measurements
Vent Connection
4 Inches
Return Air Opening Size
23 x 14 inches
Flue Pipe Diameter
4
Supply Air Opening Size
19 1/2 x 19 7/8 Inches
Warranty
Parts Warranty
With Online Registration 10 Years
Heat Exchanger Warranty
Lifetime w/ online registration
Unit Replacement Warranty
With online registration 10 Years
Certifications
ENERGY STAR® Certified
No
Qualified Manufacturer ID (QMID)
R4M0
California Approved Furnace
No
Emission Standard
Standard
Ultra-Low NOx
No
California Only
No
Accessories
Enjoy free shipping on any accessories purchased with the Blueridge BG802UH110CV20.
