48,000 BTU 16 SEER Ultra Efficient Ducted Heat Pump/Air Handler System KIT

48,000 BTU 16 SEER Ultra Efficient Ducted Heat Pump/Air Handler System KIT

New Item!

Model: Blueridge BMAH4816 KIT

  • + 8 More
Mouse over or pinch image to zoom in.
Actual product may vary from photos.

Model: Blueridge BMAH4816 KIT

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

$4,349.00
You save: 26%
Compare to: $5,870.00
Or as low as
Volume Discounts
Qty:
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

The Blueridge Hyper Heat 48,000 BTU 16 SEER Ultra Efficient Ducted Heat Pump/Air Handler System KIT is a high performing, versatile, and simple heating and cooling. This is a heat pump that can cool better than most air conditioners, heat better than virtually any other heat pump, compete with traditional furnaces in cold weather, and reduce energy consumption thanks to its sophisticated internal controls. It even comes with new technology that makes HVAC installation faster and simpler than a traditional heat pump.




System Features


Inverter Compressor
Designed to run only as hard as needed to maintain optimal temperatures in your space while minimizing electrical consumption.

Variable Speed Blower
Provides even air distribution throughout your home to optimize comfort.

Energy Efficient
Experience the right airflow volume in each space with a unit that automatically adjusts based on the ducting length.

Quiet Operation
Create more peaceful, comfortable spaces with ultra-quiet operation that reduces noise pollution.

Hyper Heat Technology
Heat pump designed to operate at outdoor temperatures as low as -22 ºF, out performing most convential systems.

Easy & Flexible Installation
Install the unit vertically or horizontally for multi-directional air flow possibilities and increased flexibility.

Third-Party Thermostat Compatibility
Experience seamless integration — without extra kits — with a built-in 24V interface that’s compatible with third-party thermostats.

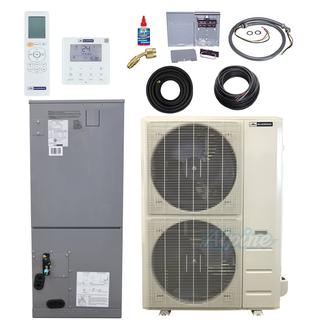

This System Includes*





Blueridge BMAH4816C x1   Blueridge BMAH4816I x1   Alpine AHMSA1 x1
18,000 BTU 20 SEER Hyper Heat Inverter Outdoor Condenser   18,000 BTU 20 SEER Air Handler Unit   Adapter 5/16" x 1/4" for Ductless Mini-Split Systems


Alpine 612850B3B6 x1   Alpine AG-WHP10 x1   Alpine AG-DCT x1
50 Foot 3/8 LL 3/4 SL Ductless Mini-Split Line Set   1/2 x 48 Inches, #10 Gauge Electrical Whip   Safety Non-Fused Electrical Disconnect


Refrigeration Technologies RT201B x1   Alpine MW2/035 x2   Blueridge 17317000A63536 x1
Nylog Blue Gasket and Thread Sealant   35 Foot 18/2 Stranded Ductless Mini-Split Wire - Shielded (300 Volt)   Remote controller

Blueridge 17317100006495 x1
Wired controller





Specs
Ambient Temperature Range (Cooling)
-22 / 122 °F
Ambient Temperature Range (Heating)
-22 / 75 °F
Low Ambient Cooling
Yes
Configuration
Downflow / Horizontal / Upflow
Zones
1
Total Cooling Capacity
4 Ton(s)
Heating Capacity
50000 BTU
Cooling BTUs
47000 BTU
Maximum Cooling Output BTU
48000 BTU
Maximum Heating Output BTU
55000 BTU
SEER
16 SEER
Energy Efficiency Ratio
8.5 EER
SEER2
15.6 SEER2
Energy Efficiency Ratio 2
8.2 EER2
Electric Heat Capabilities (Optional)
10 / 15 / 20 / 8 Kilowatts
Coefficient of Performance
3.0 COP
Heating Seasonal Performance Factor
10 HSPF
HSPF2
9.4
Refrigerant
R-410A
WIFI
Yes (With Wifi Capable Thermostat)
Lowest Ambient Temperature (Heating)
-22 °F
Factory Precharge
25 Feet
Minimum Ampacity
42 Amps
Maximum Overcurrent Protection (Breaker)
50 Amps
Air Handler Breaker Size
15 Amps
Maximum Line Length per Zone
213 Feet
Maximum Height Difference
98 Feet
Compressor Type
Inverter / Rotary
ENERGY STAR® Qualified
No
Liquid Line Size
3/8 Inches
Suction Line Size
3/4 Inches
Indoor Air Handler Size, W x H x D
21.02 x 49.02 x 21.02 Inches
Supply Air Opening Size
19 5/16 w x 10 1/4 d Inches
Return Air Opening Size
18.75 w x 19 d inches
Sound Rating, Indoor
46 / 50 / 53 Decibels
Sound Rating, Outdoor
64 Decibels
Outdoor Condenser Size, W x H x D
37.48 x 52.48 x 16.34 Inches
Indoor Air Handler Weight
130.51 Lbs
Outdoor Condenser Weight
220.24 Lbs
Indoor Air Handler Type(s)
24 V AHU
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Compressor Warranty
7 Years
Parts Warranty
5 Years
