60,000 BTU 20 SEER Ultra Efficient Ducted Heat Pump/Air Handler System

60,000 BTU 20 SEER Ultra Efficient Ducted Heat Pump/Air Handler System

Model: Goodman GVZC200601-AVPEC61D14

Actual product may vary from photos.

Model: Goodman GVZC200601-AVPEC61D14

$9,460.00
Or as low as

You save: 23%
Compare to: $12,300.00
The Goodman GVZC200601-AVPEC61D14 is no longer available for sale.
Express Pay Available
highlights

Goodman is one of the biggest names in home cooling, heating and energy-efficient home comfort. That’s because Goodman lives up to its name in a big way, with time-tested energy-efficient technology, highly durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

Efficiency at its best; this system comes with an ultra high efficiency, feature rich heat pump and a matching air handler that optimizes the system's performance.

The GVZC heat pump uses inverter technology so it can increase or decrease the heating and cooling output as needed to create the most comfortable environment while maximizing efficiency, minimizing humidity when cooling and reducing the noise level.

The AVPEC air handler is a perfect pairing to the heat pump. This is an AHRI certified/tested match. The air handler comes with a built in EEV valve, and variable speed blower motor which will increase and decrease the air flow as the system adjusts its heating and cooling output.

The variable speed blower motor can also sense when there is resistance to airflow in the duct system and adjust as needed to ensure that the air is delivered consistently throughout your home.

This is a communicating Goodman system so the indoor and outdoor units will share temperature readings in real time and make adjustments on the fly to maximize efficiency and comfort.

Another great advantage of a communicating Goodman system is that you can run it effectively with a basic or high end thermostat. The communication between the indoor and outdoor unit adjusts the system's power in heating, cooling, and when to engage an auxiliary heater coil. The thermostat simply needs to tell the system when to heat and cool the space.

Most locations will require the use of an auxiliary heater coil. They are located in the accessories section. If you have any questions on this system please call us at 1 800 865 5931 and we will be happy to help.

Please note that this heat pump comes pre-charged with R-410A liquid refrigerant and by Federal law cannot be released to the atmosphere. You can purchase this equipment without being EPA certified, and if you are mechanically inclined you may perform about 90% of the equipment installation yourself. However we strongly recommend to have a professional heating/cooling contractor do the final part of the installation including managing the refrigerant. An HVAC contractor has the tools and know-how to do this work. Also, having a contractor perform the final startup and inspection of this heat pump validates your warranty with Alpine. The manufacturer recommended line set diameters must be used with the Goodman inverter systems to ensure proper functionality.



Heat Pump Standard Features:

  • Variable-speed swing compressors

  • High-density compressor sound blanket

  • Integrated communicating ComfortBridge™ Technology

  • Commissioning and diagnostics via indoor board Bluetooth  with the CoolCloud™ phone and tablet application

  • Goodman control algorithmic logic

  • In communicating mode, only two low

  • voltage wires to outdoor unit required

  • Diagnostic indicator lights, seven-segment  LED display, and fault code storage

  • Field-selectable boost mode increases

  • compressor speed during unusually high loads

  • Quiet DC outdoor fan motor

  • Fully charged for 15’ of tubing length

  • Field-installed bi-flow filter drier

  • Coil and ambient temperature sensors

  • Suction pressure transducer (in cooling mode)

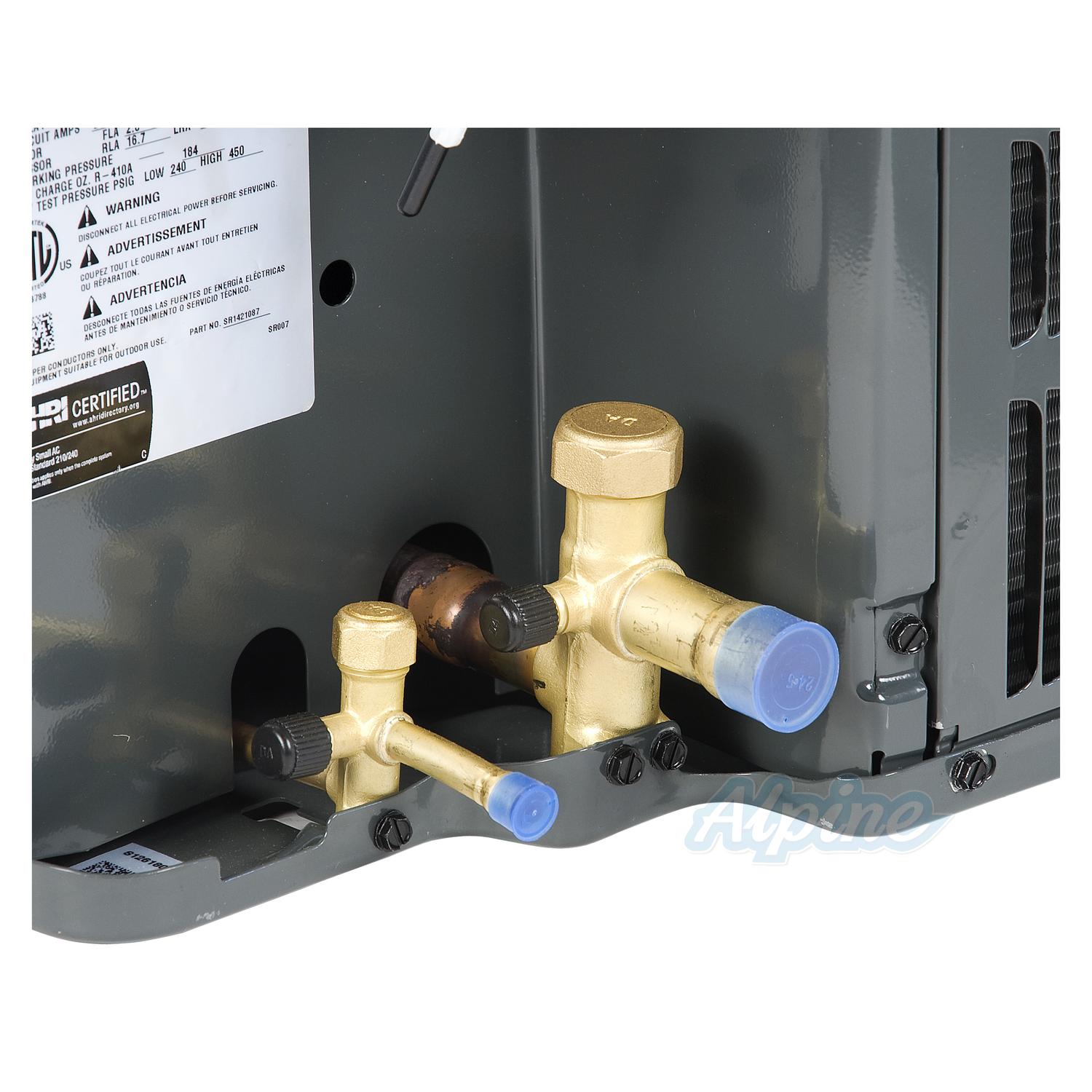

  • Sweat connection service valves with easy access to gauge ports

Heat Pump Cabinet Features:

  • Heavy-gauge galvanized-steel cabinet with grille-style sound control top design

  • Custom two-tone gray powder-paint finish

  • 500-hour salt-spray tested

  • Wire fan discharge grille

  • Steel louver coil guard

  • Top and side maintenance access

  • Single-panel access to controls with space  provided for field-installed accessories

  • When properly anchored, it meets the 2017  Florida Building Code unit integrity  requirements for hurricane-type winds  (Anchor bracket kits available.)

 Air Handler Standard Features:

  • Electronic Expansion Valve (EEV) for cooling and heat pump applications.

  • Variable-speed ECM blower motor

  • Suitable for operation with inverter-driven products

  • ComfortNet® Communicating System compatible

  • Provides constant CFM over a wide range of static pressure conditions independent of duct system

  • CFM indicator

  • Provides adjustable low CFM for efficient fan-only operation

  • All-aluminum evaporator coil

  • Fault recall of six most recent faults

  • Improved humidity and comfort control

  • 3 kW – 25 kW electric heater kits

  • AHRI certified; ETL listed



Air Handler Cabinet Features:

  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193

  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193

  • Horizontal or vertical configuration capabilities

  • 21" depth for easier attic access

  • DecaBDE-free thermoplastic drain pan with secondary drain connections

  • Screw-less sides and back helps to reduce condensation when installed in humid locations

  • Foil-faced insulation covers the internal casing to reduce cabinet condensation

  • Galvanized, leather grain-embossed finish

  • Glue-less cabinet insulation retention

  • Tool-less filter access



Click the links below to check each components' specifications and documentation.

This system includes:





Goodman CAPF 2

AVPEC61D14
  • 5 Ton
  • Variable Speed Blower



Goodman GSX14 Series LRG 1

GVZC200601
  • 5 Ton, 20 SEER Heat Pump
  • R-410A Refrigerant
Specs
System Information
view information
Configuration
Downflow / Horizontal / Upflow
view information
Refrigerant
R-410A
Features
view information
Low Pressure Safety Switch
Yes
view information
High Pressure Safety Switch
Yes
Efficiency
view information
Energy Efficiency Ratio
11.5 EER
view information
SEER
20.0 SEER
view information
Heating Seasonal Performance Factor
10.0 HSPF
Performance
view information
Base Heating Capacity
45500 BTU
view information
Total Cooling Capacity
5 Ton(s)
view information
Maximum Heating Capacity
46000 BTU
view information
Base Cooling Capacity
57000 BTU
view information
Electric Heat Capabilities (Optional)
10 / 15 / 20 / 5 / 8 Kilowatts
view information
Compressor Type
Inverter / Swing
view information
Noise Level
59.7-65.7-74.9 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Maximum Overcurrent Protection (Breaker)
Refer to documents - Seperate Amps
view information
Voltage
208 - 230 Volts
Line Set Information
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
7/8 Inches
Product Dimensions
view information
Indoor Air Handler Size, W x H x D
24.5 x 53.44 x 21 Inches
view information
Pad Size
36x36 Inches
view information
Outdoor Condenser Size, W x H x D
35.5 x 41.25 x 35.5 Inches
Indoor Air Handler Weight
177 Lbs
Outdoor Condenser Weight
291 Lbs
Important Measurements
view information
Supply Air Opening Size
23.3125 w x 11.3 d Inches
view information
Return Air Opening Size
21.1875 w x 19.5 d inches
Warranty
view information
Compressor Warranty
Lifetime With Online Registration
view information
Parts Warranty
With Online Registration 10 Years
Certifications
view information
AHRI#
206570674
view information
Qualifies for Govt. Money
No
view information
Approved for US Region(s)
North / Southeast / Southwest
view information
ENERGY STAR® Certified
No
