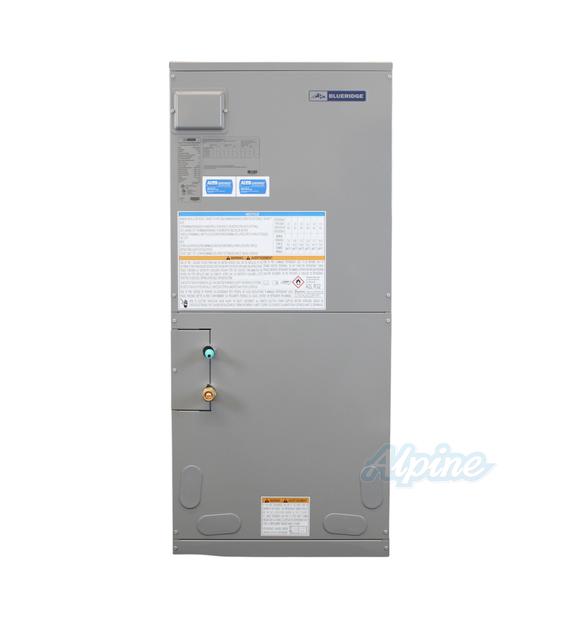

36,000 BTU Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-32, 220V, NG3 Series
36,000 BTU Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-32, 220V, NG3 Series
- Provides heating and cooling
- Whisper quiet indoors and outdoors
- Sips electricity for low utility costs
- Simple installation + friendly tech support available
Get expert help - freeBuild a mini-split system tailored to your home
Try Mini-split Builder - Free
Shop with Confidence
$1,750.00
Ships FREE today: order within 8 hrs 45 mins
Air Handler Features:
Energy Efficient
Experience the right airflow volume in each space with a unit that automatically adjusts based on the ducting length.

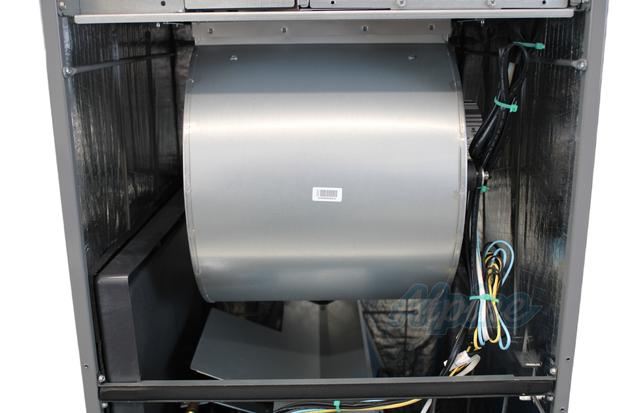

Variable Speed Blower
Provides even air distribution throughout your home to optimize comfort.
Quiet Operation
Create more peaceful, comfortable spaces with ultra-quiet operation that reduces noise pollution.
Easy & Flexible Installation
Install the unit vertically or horizontally for multi-directional air flow possibilities and increased flexibility.
Third-Party Thermostat Compatibility
Experience seamless integration — without extra kits — with a built-in 24V interface that’s compatible with third-party thermostats.
Also Consider
36,000 BTU 18 SEER Ultra Efficient Ducted Heat Pump/Air Handler System
Blueridge BMAH3618
In Stock
$
3,459
00
System Information
Configuration
Downflow / Horizontal / Upflow
Next Gen Series
NG2: Core / NG3: All Climate
Indoor Air Handler Type(s)
24 V AHU
Zones
1
Connection Type
Flare
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
None
Refrigerant Readiness
Primary Refrigerant
R-32
Mobile Home Compatible
No
RDS (Refrigerant Detection System) On-Board
Yes
RDS Factory-Programmed For
R-32
Refrigerant Metering Device
EEV
Metering Device Refrigerant Compatibility
R-32
Performance
Tonnage
3 Ton(s)
High Output Cool
36000 BTU
High Output Heat
36000 BTU
Electric Heat Capabilities (Optional)
10 / 15 / 3 / 5 / 8 Kilowatts
Airflow Capacity
1000 CFM
Sound Rating
51 Decibels
Blower Type
Variable-Speed
Air Handler Setpoint Range (Cooling)
64.4-89.6 °F
Air Handler Setpoint Range (Heating)
50-80.6 °F
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Line Set Information
Lineset Compatibility Code
L05
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Line Set Connection Type
Flare
Product Dimensions
Width
21 13/50 Inches
Depth
21 13/50 Inches
Height
48 19/100 Inches
Product Weight
163.1 lbs
Shipping Weight
178.6 lbs
Compatibility
Cross-Brand Compatibility: R-410A Air Conditioner
No
Cross-Brand Compatibility: R-32 Air Conditioner
No
Cross-Brand Compatibility: R-454B Air Conditioner
No
Cross-Brand Compatibility: R-410A Heat Pump
No
Cross-Brand Compatibility: R-32 Heat Pump
No
Cross-Brand Compatibility: R-454B Heat Pump
No
Warranty
Parts Warranty
5 Years
Certifications
Approved for US Region(s)
North / Southeast / Southwest
Qualified Manufacturer ID (QMID)
R4M0
