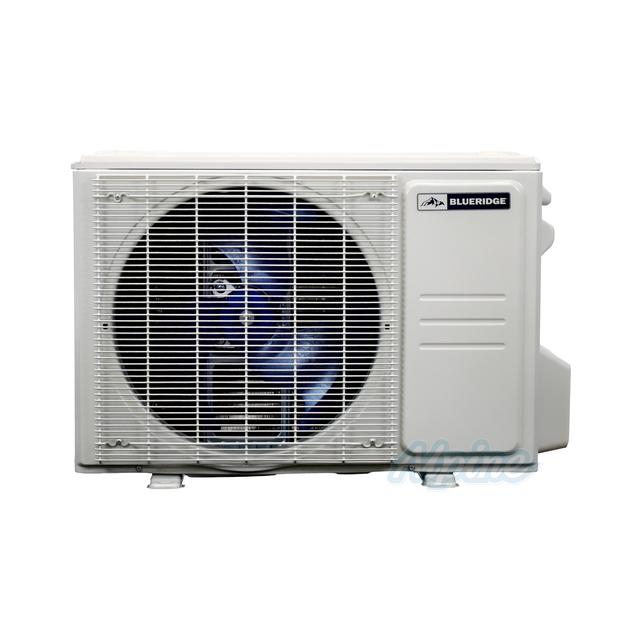

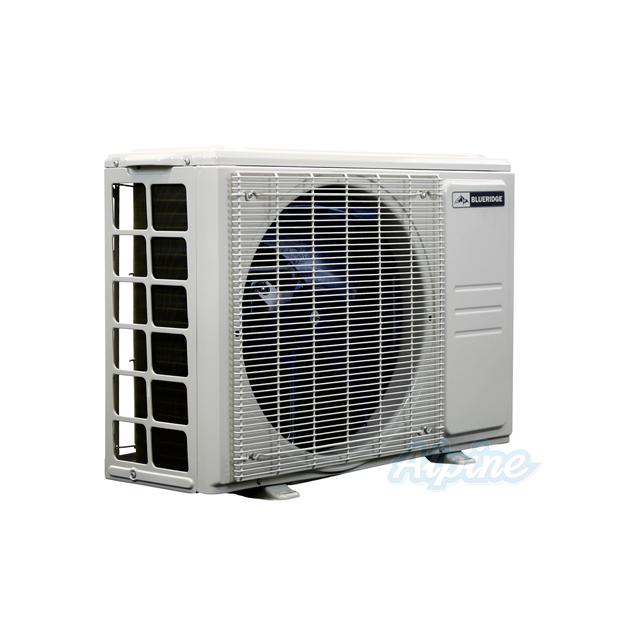

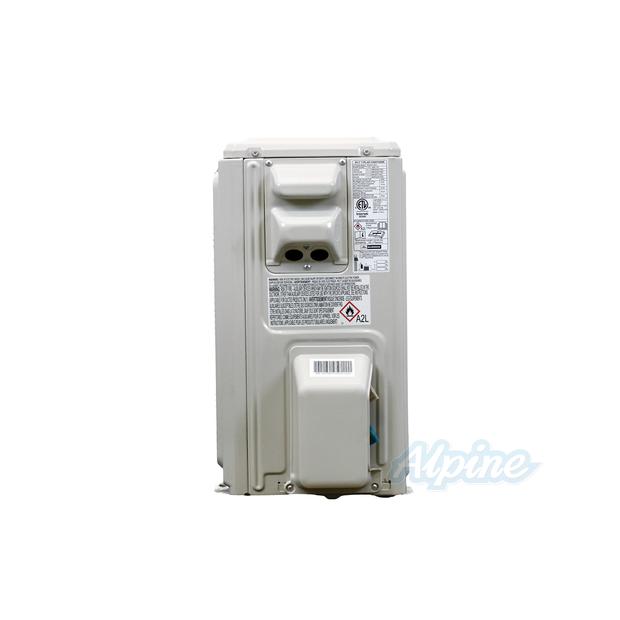

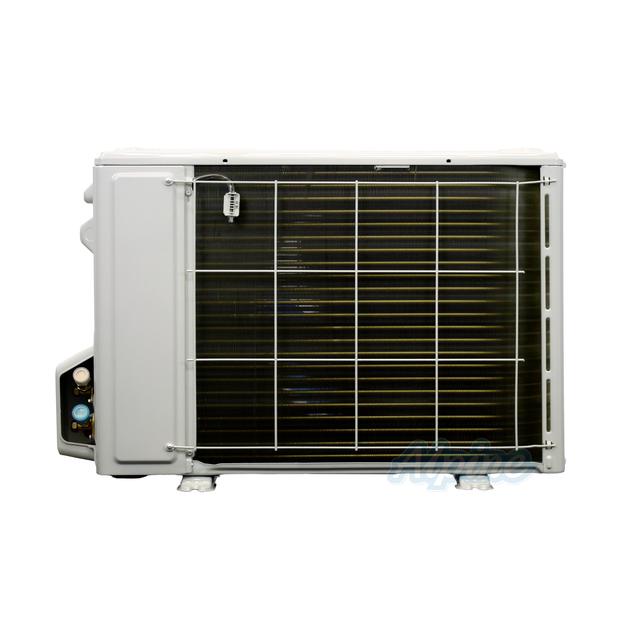

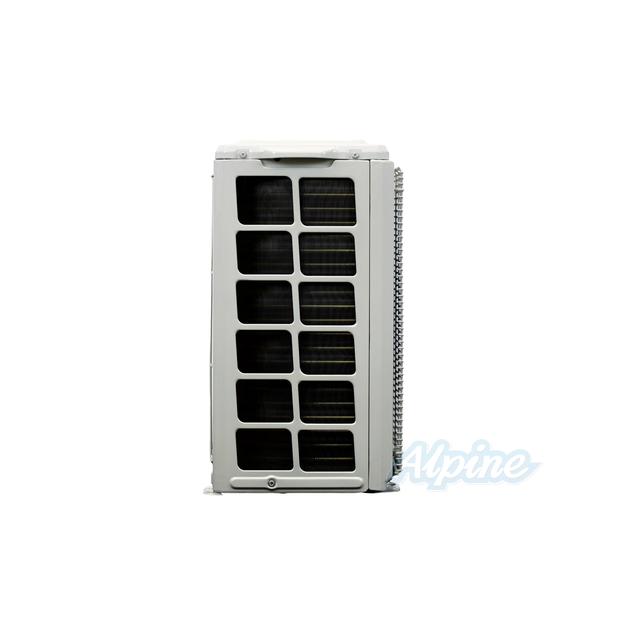

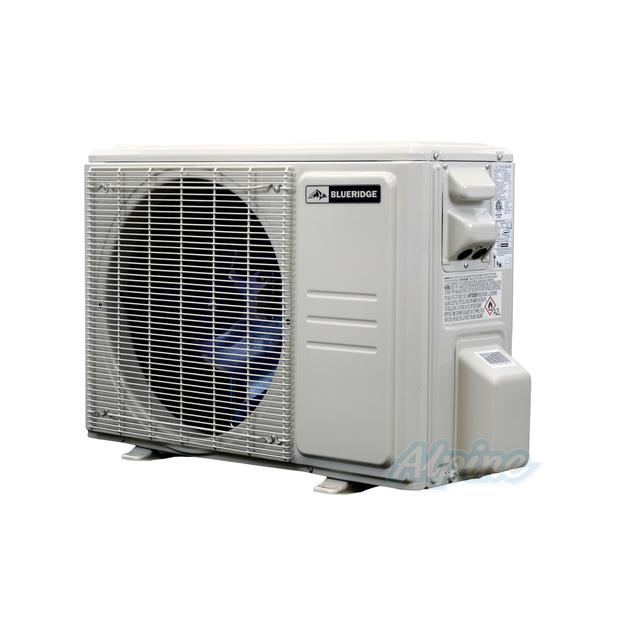

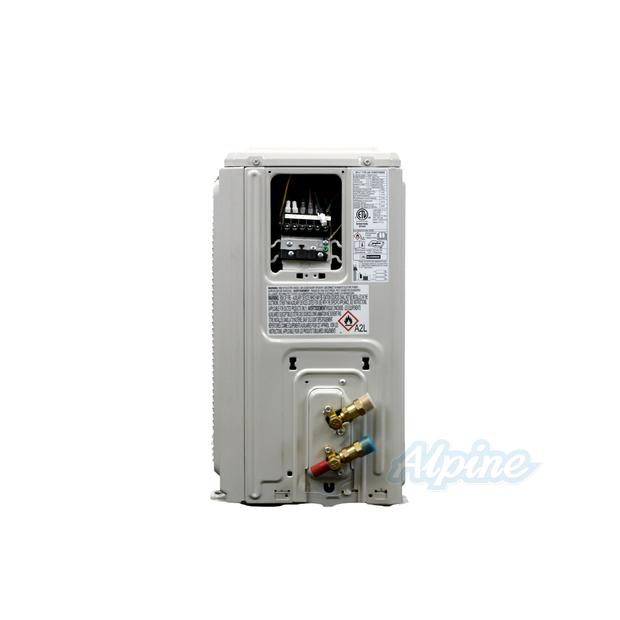

9,000 BTU 23.6 SEER Single Zone 115V DIY Ductless Mini Split Outdoor Condenser

9,000 BTU 23.6 SEER Single Zone 115V DIY Ductless Mini Split Outdoor Condenser

Model: Blueridge BDS2A09SCV

Top Rated: Hightest Rating of Any Mini-Split Brand
  • Thumbnail of Blueridge BDS2A09SCV 9,000 BTU 23.6 SEER Single Zone 115V DIY Ductless Mini Split Outdoor Condenser 63100
  • Thumbnail of Blueridge BDS2A09SCV 9,000 BTU 23.6 SEER Single Zone 115V DIY Ductless Mini Split Outdoor Condenser 61637
  • Thumbnail of Blueridge BDS2A09SCV 9,000 BTU 23.6 SEER Single Zone 115V DIY Ductless Mini Split Outdoor Condenser 61642
  • Thumbnail of Blueridge BDS2A09SCV 9,000 BTU 23.6 SEER Single Zone 115V DIY Ductless Mini Split Outdoor Condenser 63092
  • Thumbnail of Blueridge BDS2A09SCV 9,000 BTU 23.6 SEER Single Zone 115V DIY Ductless Mini Split Outdoor Condenser 63093
  • Thumbnail of Blueridge BDS2A09SCV 9,000 BTU 23.6 SEER Single Zone 115V DIY Ductless Mini Split Outdoor Condenser 63095
  • + 5 More
    Thumbnail of Blueridge BDS2A09SCV 9,000 BTU 23.6 SEER Single Zone 115V DIY Ductless Mini Split Outdoor Condenser 63096

Model: Blueridge BDS2A09SCV

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

$1,06900
Qty:
checkmark icon
In Stock and Ready to Ship
checkmark icon
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights
important
*NOTE: This product is not a complete system, it is only one component. A complete system requires an indoor air handler, outdoor condenser and connecting line set. Please view complete systems here.
Midea Wall Mount
Blueridge logo
Heat or Cool Any Space,
Simply and Affordably
affordable icon
Surprisingly
Affordable
quiet icon
Incredibly
Quiet
reviews icon
Great
Reviews
easy to install icon
Easy to
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
The Blueridge Do-It-Yourself eliminates the most technical, difficult steps from a normal HVAC installation.
No SolderingNo Soldering
No Refrigerant HandlingNo Refrigerant Handling
No GaugesNo Gauges
No Vacuum PumpNo Vacuum Pump
Midea Wall Mount
Normal HVAC Installation:
Usually, a technician will solder together copper tubing to create a sealed environment for the refrigerant chemicals to circulate. Then, they add nitrogen gas under high pressure to test for leaks. Next, they use a vacuum pump to evacuate all gasses from inside. Only then will they release the refrigerant that will allow the system to function, using gauges to make sure the volume and pressure are correct.
Blueridge Do-It-Yourself:
The Blueridge Do-It-Yourself system uses a different approach to get the same result. You get two separate units - the inside air handler and the outside condenser. The condenser already contains the correct amount of refrigerant. The copper lines included with your Blueridge DIY system, are already under vacuum. They have quick-connect fittings that maintain a vacuum until you’re ready to connect. After you’ve installed the indoor and outdoor units, you screw together the quick-connect fittings, then open the valves to release the refrigerant. It’s that easy.
Benefits
Quiet
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
Simple Installation
You can install a Blueridge Do-It-Yourself mini split without any special training, tools, or equipment thanks to the pre-charged line set that comes included with your system. Simply follow a few easy installation steps to get your mini split working in no time.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Video thumbnail
Blueridge Mini-Splits also Provide Heat!
Video thumbnail
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
View All Reviews
Installation
Mount
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Connect
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Electrical
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Andrew Arthurs
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BDS2A09SCV
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
Blueridge BDS2A09SCV
9,000 BTU 23.6 SEER Single Zone 115V DIY Ductless Mini Split Outdoor Condenser
Specs
System Information
Single Zone Mini-Split Series
DS2: DIY High Efficiency
Zones
1
Product Type
Mini Split DIY
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
None
Efficiency
SEER2
22.5 SEER2
EER2
14 EER2
HSPF2
11.5 HSPF2
Coefficient of Performance at 5° F
2.17
Coefficient of Performance (at 47 F)
3.72 COP
Refrigerant Readiness
Primary Refrigerant
R-454B
Factory Precharge
25 Feet
Mobile Home Compatible
Yes
RDS (Refrigerant Detection System) On-Board
No
Performance
Tonnage
0.75 Ton(s)
Low Output Cool
3200 BTU
Low Output Heat
4000 BTU
High Output Cool
9000 BTU
Maximum Cooling Output
11500 BTU
Minimum Heat Output
4000 BTU
High Output Heat
10000 BTU
Stages of Heat
Inverter
Stages of Cool
Inverter
Compressor Type
Inverter
Sound Rating
54 Decibels
Ambient Temperature Range (Cooling)
-13 / 122 °F
Ambient Temperature Range (Heating)
-13 / 75 °F
Low Ambient Cooling
Yes
Lowest Ambient Temperature (Heating)
-13 °F

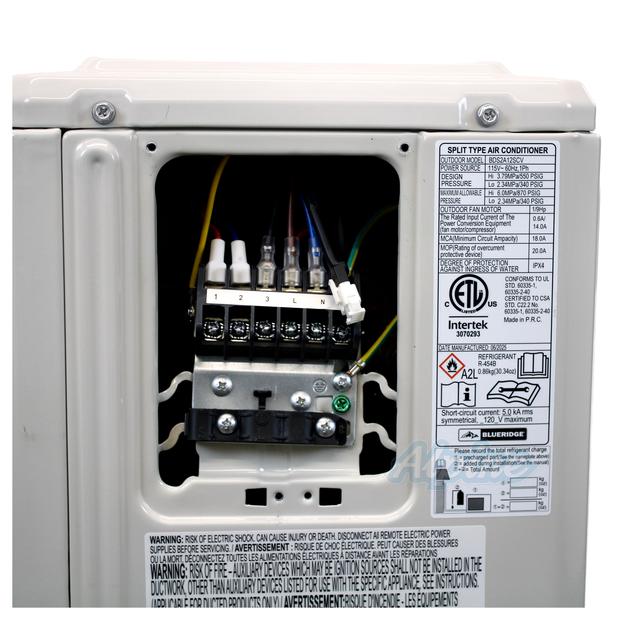

Electrical Information
Voltage
115 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
18 Amps
Maximum Fuse/Breaker
20 Amps

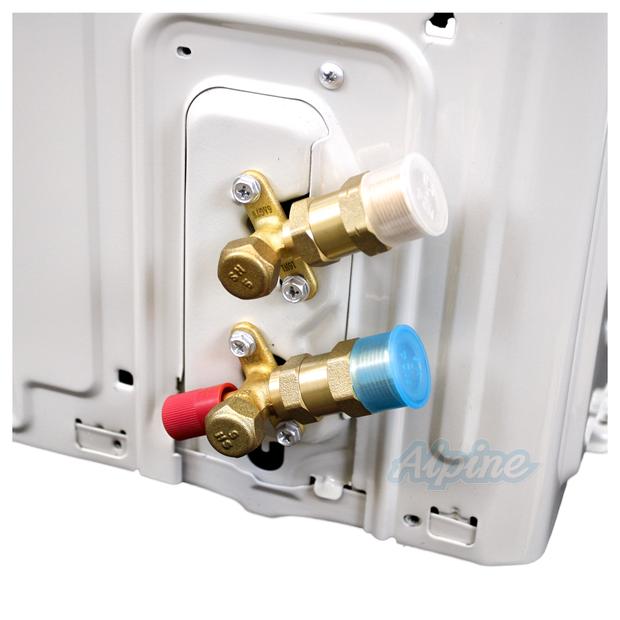

Line Set Information
Liquid Line Size (OD)
1/4 DIY Inches
Suction Line Size (OD)
3/8 DIY Inches
Line Set Connection Type
Quick Connect
Maximum Line Length per Zone
82 Feet
Maximum Height Difference
49.2 Feet
Included Pre-charged Line Set Length
25 Feet
Product Dimensions
Width
30 3/25 Inches
Depth
11 93/100 Inches
Height
21 17/20 Inches
Footprint Mounting Holes (W x D)
17.75 x 11.25 Inches
Product Weight
65.48 lbs
Shipping Weight
83.11 lbs
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
Yes
Qualified Manufacturer ID (QMID)
R4M0
