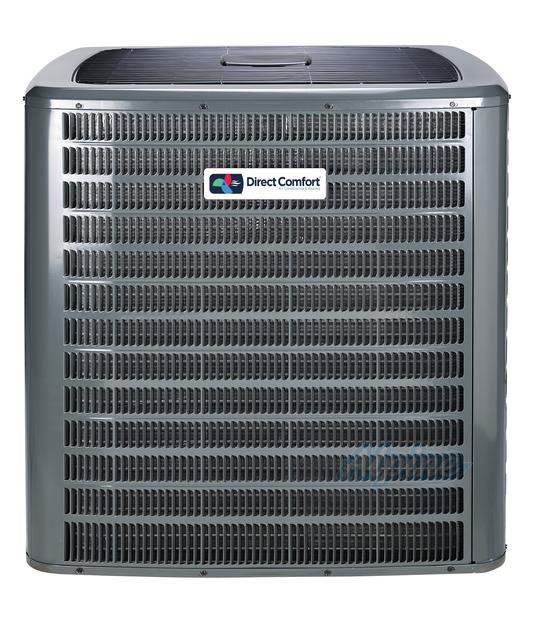

3 Ton, 14 to 16 SEER, Two-Stage Heat Pump, Comfortbridge Communications System Compatible, R-410A Refrigerant

3 Ton, 14 to 16 SEER, Two-Stage Heat Pump, Comfortbridge Communications System Compatible, R-410A Refrigerant

Model: Direct Comfort DC-GSZC160361

Actual product may vary from photos.

Model: Direct Comfort DC-GSZC160361

Provides high efficiency heating and cooling

Sturdy design for long term durability

Built for simple installation and easy maintenance

Peace of mind with 10 year warranty (with registration)

$3,092.00

Add to Cart for Discount

Or as low as
Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

The Direct Comfort by Goodman® brand DC-GSZC160361 14 to 16 SEER Heat Pump uses the environmentally friendly refrigerant R-410A and features energy efficiencies and operating sound levels that are among the best in the heating and air conditioning industry. R-410A is chlorine-free to help prevent damage to the ozone layer. The DC-GSZC160361 features the two-stage, high-efficiency Copeland® UltraTech scroll compressor, which provides improved temperature and humidity control.  This unit is designed for the consumer who desires superior comfort, quiet operation, and environmentally friendly air conditioning performance.

All Direct Comfort by Goodman 14 to 16 SEER heat pumps must be installed with a bi-flow thermostatic expansion valve. This valve is installed in front of the indoor evaporator coil inline with the line set piping.

When this unit is installed with the manufacturer recommended evaporator coil, a Direct Comfort by Goodman variable speed furnace, variable speed air handler or variable speed modular blower, it is usually 16 SEER. To achieve 16 SEER for a certainty, see Accessories tab below for actual products compatible with this heat pump, or the "Instructions & Brochures" tab below for Direct Comfort by Goodman's spec sheet details.

Need help putting a complete heat pump system together? Use our easy System Selector and we’ll do it for you!

This is a communicating piece of equipment and to achieve full efficiency and functionality it must be paired with a Direct Comfort by Goodman communicating furnace, air handler, or modular blower with evaporator coil. If pairing this with an alternate indoor unit you must verify that the indoor unit is compatible with a 2 stage cooling system and you will need part 0130M00485 for the installation.

If pairing this unit with a Direct Comfort by Goodman communicating indoor natural gas/lp furnace in a dual fuel installation all of the staging is done through the communication between the furnace and heat pump and no specialized thermostat is required. If pairing this with any other fossil fuel furnace you will need a dual fuel capable thermostat such as the Honeywell TH8321WF1001 or TH6320WF2003.

Please note that this heat pump equipment comes pre-charged with R-410A liquid refrigerant and by Federal law cannot be released to the atmosphere. Yes you can purchase this equipment without being EPA certified. If you are mechanically inclined you may perform about 90% of the equipment installation yourself. However we strongly recommend that a professional heating / cooling contractor do the final part of the installation, including the managing of refrigerant. An HVAC contractor has the tools and know-how to do this work. Also, having a contractor perform the final startup and inspection of this heat pump validates your warranty with Alpine.

Standard Features of this Heat Pump

  • Two-Stage Copeland® UltraTech scroll compressor
  • R-410A environmentally friendly refrigerant
  • Copeland® ComfortAlert diagnostics
  • Comfortbridge Communications System compatible
  • Two-Speed condenser fan motor
  • High-quality foam compressor sound blanket
  • Loss of charge switch
  • High-pressure switch
  • Factory-installed filter dryer
  • Copper tubing / enhanced aluminum fin coil
  • Sweat connection service valves with easy access to gauge ports
  • ARI Certified; ETL Listed

Cabinet Features

  • Wire fan discharge grille
  • Steel louver coil guard
  • Baked-on powder paint finish
  • Rust-resistant coated screws
  • Compact footprint
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When central air conditioner is properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds

Considering purchasing a furnace, air handler, or coil with this condenser? Visit our Central Heating & Cooling Systems page to find AHRI certified systems.

Also Consider
Specs
System Information
view information
Stages
Two Stage
view information
TXV Required
Yes
view information
Refrigerant
R-410A
Features
view information
Low Pressure Safety Switch
Yes
view information
High Pressure Safety Switch
Yes
Efficiency
view information
Energy Efficiency Ratio
12.2 - 13.0 EER
view information
SEER
15.0 - 16.0 SEER
view information
Heating Seasonal Performance Factor
8.5 - 9.5 HSPF
Performance
view information
Base Heating Capacity
36000 BTU
view information
Total Cooling Capacity
3 Ton(s)
view information
Maximum Heating Capacity
36000 BTU
view information
Base Cooling Capacity
36000 BTU
view information
Compressor Type
Scroll UltraTech™
view information
Noise Level
73 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Minimum Ampacity
19.5 Amps
view information
Maximum Overcurrent Protection (Breaker)
35 Amps
view information
Voltage
208 - 230 Volts
Line Set Information
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
7/8 Inches
Product Dimensions
view information
Width
35 1/2 Inches
view information
Depth
35 1/2 Inches
view information
Height
38 1/4 Inches
view information
Pad Size
36x36 Inches
Product Weight
240 lbs
Shipping Weight
266 lbs
Warranty
view information
Compressor Warranty
Lifetime With Online Registration
view information
Unit Replacement Warranty
With online registration 10 Years
view information
Parts Warranty
With Online Registration 10 Years
Certifications
view information
Qualifies for Govt. Money
No
view information
Approved for US Region(s)
North / Southeast / Southwest
view information
ENERGY STAR® Certified
No
