New 36,000 BTU 18.2 SEER2 Ultra Efficient Ducted Air Handler Unit & SND 36,000 BTU 18.2 SEER2 Ultra Efficient Ducted Outdoor Condenser
New 36,000 BTU 18.2 SEER2 Ultra Efficient Ducted Air Handler Unit & SND 36,000 BTU 18.2 SEER2 Ultra Efficient Ducted Outdoor Condenser
New Item!
Model: Blueridge BNG3Z36UCN-BNGFZ36DH0 SND-KIT
Model: Blueridge BNG3Z36UCN-BNGFZ36DH0 SND-KIT
Inverter-driven: lower bills, steadier temps
Works with your existing ductwork
Heat pump and AC-only options, 1.5 to 5 tons
5-year parts warranty
$3,450.00
In stock
Or as low as
Qty:
In Stock and Ready to Ship
Add On
Cielo Smart Thermostat Eco (White) - Smart Wi-Fi Air Conditioner Controller (Works with Alexa and Google Assistant)
$119.99
Lyric T6 Pro Wi-Fi Programmable Thermostat with stages up to 3 Heat/2 Cool Heat Pump or 2 Heat/2 Cool (compatible with Alexa and Google Assistant)
$229.99
Wi-Fi VisionPRO 8000, 3 Stage Heat / 2 Stage Cool, Digital Thermostat (Compatible with Alexa and Google Assistant)
$274.99
Includes
Services
- Contractor Referral Assistance (Not Installation Service) (Learn More)

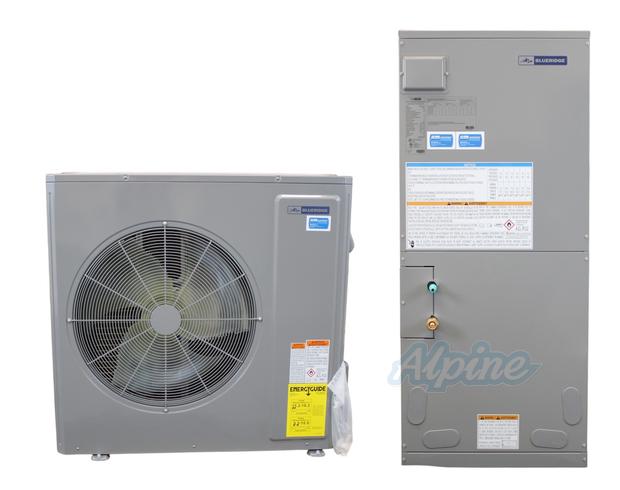

Save money with this Blueridge Scratch 'N Dent Kit! This AHRI-matched bundle includes a Blueridge BNG3Z36UCN 36,000 BTU 18.2SEER2 Next Gen Ducted Outdoor Condenser, along with a Blueridge BNGFZ36DH0 36,000 BTU Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-32, 220V, NG3 Series. Because both items have sustained cosmetic shipping / warehouse damage, we have greatly discounted this package, resulting in substantial SAVINGS for you!

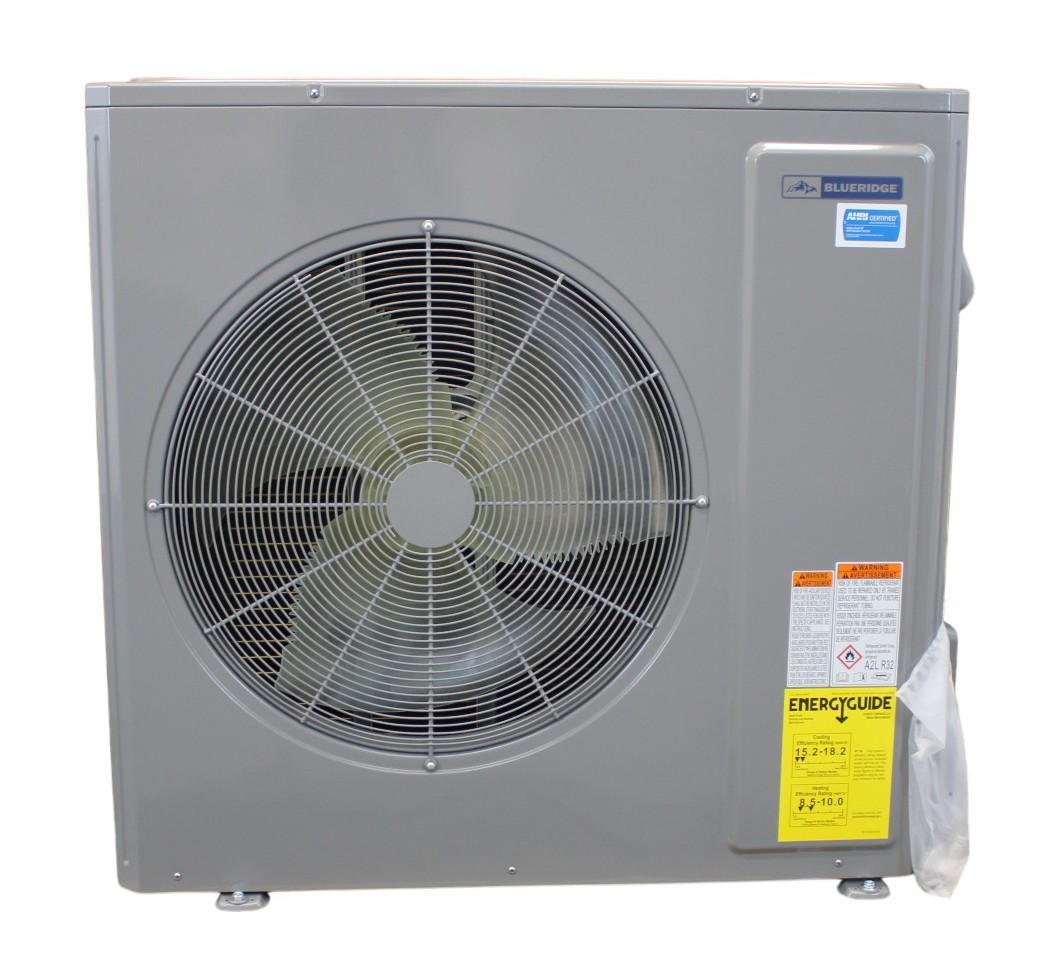

SND (BNG3Z36UCN) 36,000 BTU 18.2 SEER2 Next Gen Ducted Outdoor Condenser
Damage to the coil and chassis on the backside bottom left.

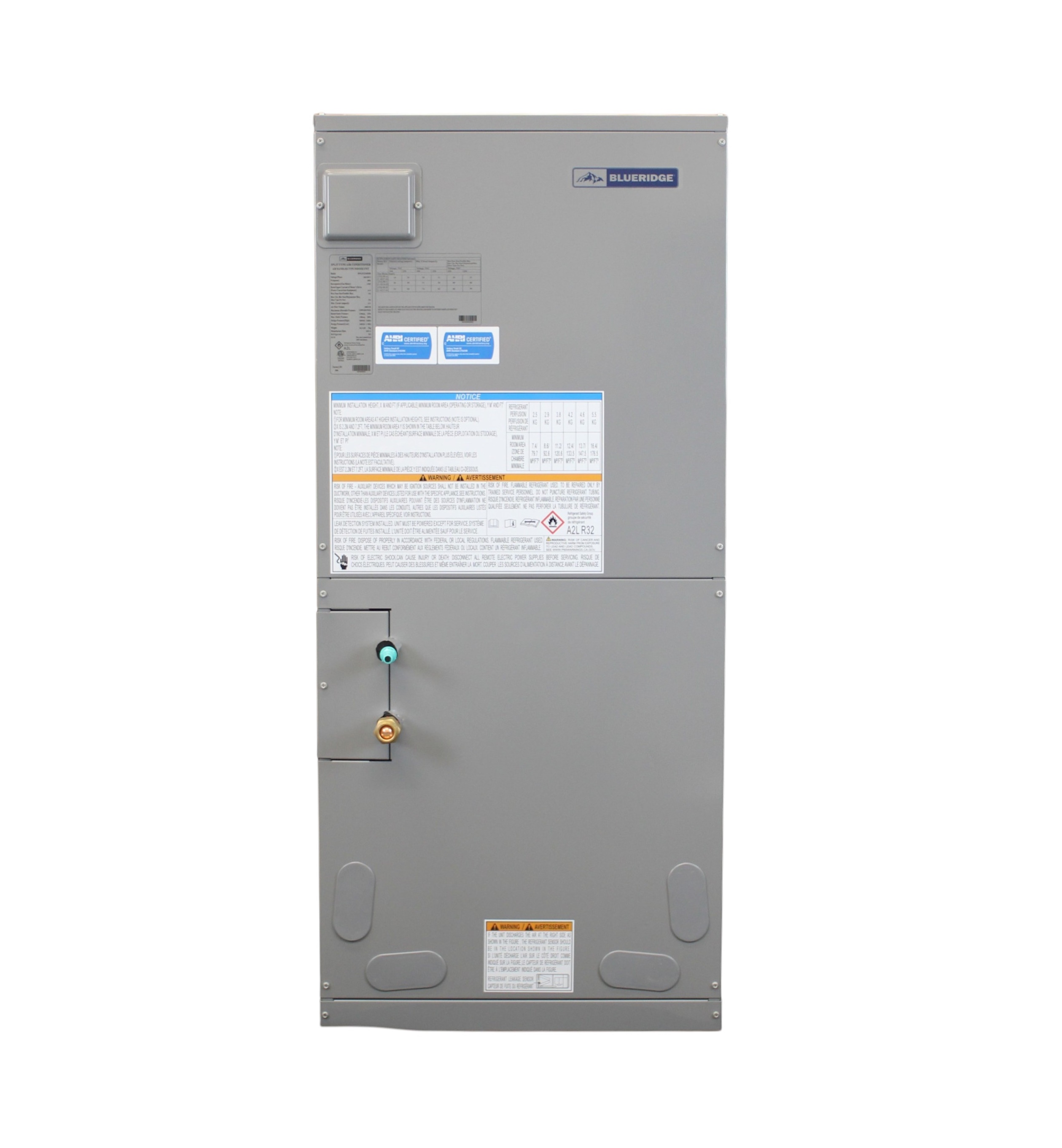

New (BNGFZ36DH0) 36,000 BTU Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-32, 220V, NG3 Series
Brand New
For new construction, or if you are replacing your entire old split system, take a look at our Accessories page to add the appropriate length line sets, electrical connections, and other parts to make your installation a breeze.
Click the links below to check each components' specifications and documentation.
This system includes:
|
|
| SND BNG3Z36UCN |
| 36,000 BTU 18.2 SEER2 Next Gen Ducted Outdoor Condenser |
|
|
| NEW BNGFZ36DH0 |
| 36,000 BTU Ducted Air Handler (24V AHU) for Ductless Mini Split Heat Pump Systems, R-32, 220V, NG3 Series |
System Information
Configuration
Downflow / Horizontal / Upflow
Mini-Split System Type
Heating / Cooling
Next Gen Series
NG3: All Climate
Indoor Air Handler Type(s)
Air Handler
Zones
1
Connection Type
Flare
Fuel Type
Electricity
System Type
Heat Pump and Air Handler
Product Type
Split-System Bundle
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
Yes (With Wifi Capable Thermostat)
Efficiency
SEER2
18.2 SEER2
EER2
11.5 EER2
HSPF2
10 HSPF2
Coefficient of Performance at 5° F
2
Coefficient of Performance (at 47 F)
3.2 COP
Refrigerant Readiness
Primary Refrigerant
R-32
Factory Precharge
25 Feet
Mobile Home Compatible
No
Performance
Tonnage
3 Ton(s)
Low Output Cool
18000 BTU
Low Output Heat
18000 BTU
High Output Cool
34000 BTU
High Output Heat
34000 BTU
Electric Heat Capabilities (Optional)
10 / 15 / 5 / 8 Kilowatts
Stages of Heat
Inverter
Stages of Cool
Inverter
Compressor Type
Inverter
Sound Rating, Indoor
51 Decibels
Sound Rating, Outdoor
61 Decibels
Ambient Temperature Range (Cooling)
129 / 5 °F
Ambient Temperature Range (Heating)
-22 / 75 °F
Low Ambient Cooling
Yes
Lowest Ambient Temperature (Heating)
-22 °F
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
27.7 Amps
Maximum Fuse/Breaker
30 Amps
Air Handler Breaker Size
15 Amps
Line Set Information
Lineset Compatibility Code
L05
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Maximum Line Length per Zone
98.4 Feet
Maximum Height Difference
49.2 Feet
Product Dimensions
Cabinet/Chassis Size
C
Indoor Air Handler Size, W x H x D
21.26 x 48.19 x 21.26 Inches
Outdoor Condenser Size, W x H x D
39.0 x 37.8 x 14.6 Inches
Footprint Mounting Holes (W x D)
29.75 x 15.56 Inches
Outdoor Condenser Weight
187.4 Lbs
Indoor Air Handler Weight
163.1 Lbs
Pad Size
18x38 Inches
Important Measurements
Return Air Opening Size
21.25 x 21.25 inches
Supply Air Opening Size
20 x 11.63 Inches
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
AHRI#
218043775
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
No
Qualified Manufacturer ID (QMID)
R4M0
Enjoy free shipping on any accessories purchased with the Blueridge BNG3Z36UCN-BNGFZ36DH0 SND-KIT.
