SND 9,000 BTU 18.8 SEER2 Single Zone Ductless Mini Split ODU & SND 9,000 BTU Single Zone Wall Mounted Ductless Air Handler
SND 9,000 BTU 18.8 SEER2 Single Zone Ductless Mini Split ODU & SND 9,000 BTU Single Zone Wall Mounted Ductless Air Handler
Rated 4.8 out of 5. (137 Reviews)
Model: Blueridge BXS1Z09SC0-BXS1Z09WM0 SND-KIT
Rated 4.8 out of 5. (137 Reviews)
Model: Blueridge BXS1Z09SC0-BXS1Z09WM0 SND-KIT
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$620.00
In stock
Or as low as
Qty:
In Stock and Ready to Ship
Includes
Services

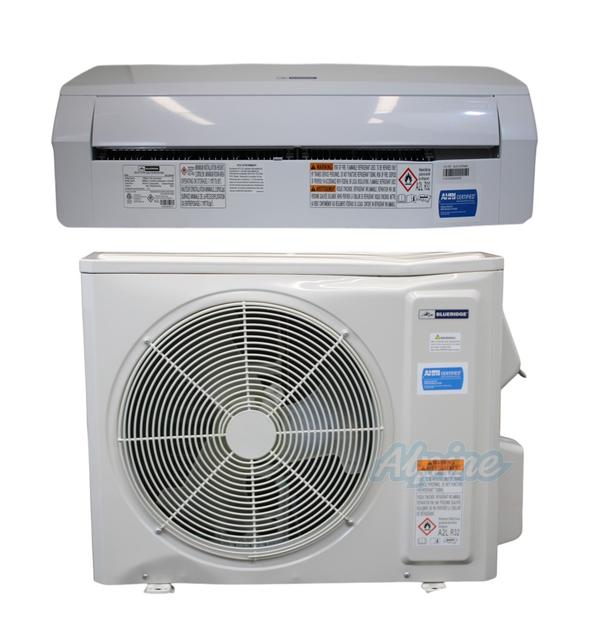

Save money with this Blueridge Scratch 'N Dent Kit! This bundle includes a Blueridge BXS1Z09SC0 9,000 BTU 18.8 SEER2 Single Zone Ductless Mini Split Outdoor Condenser, along with a Blueridge BXS1Z09WM0 9,000 BTU Wall Mounted Ductless Air Handler (1/4 LL 3/8 SL). Because these items are functionally compatible we have greatly discounted this package, resulting in substantial SAVINGS for you!

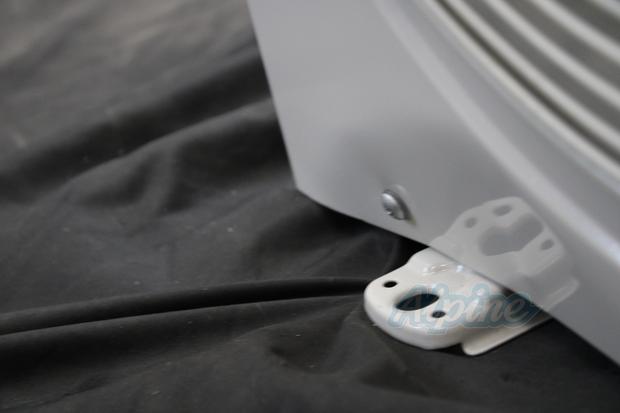

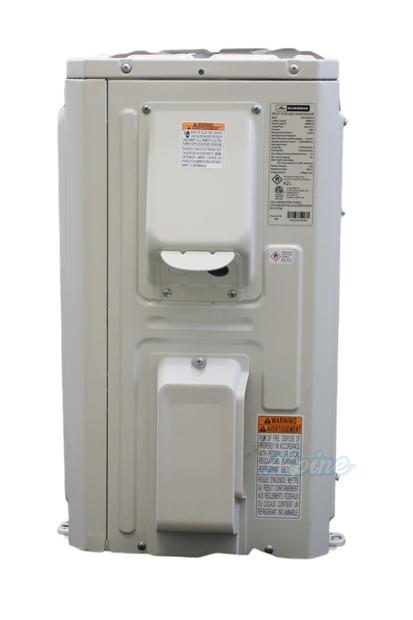

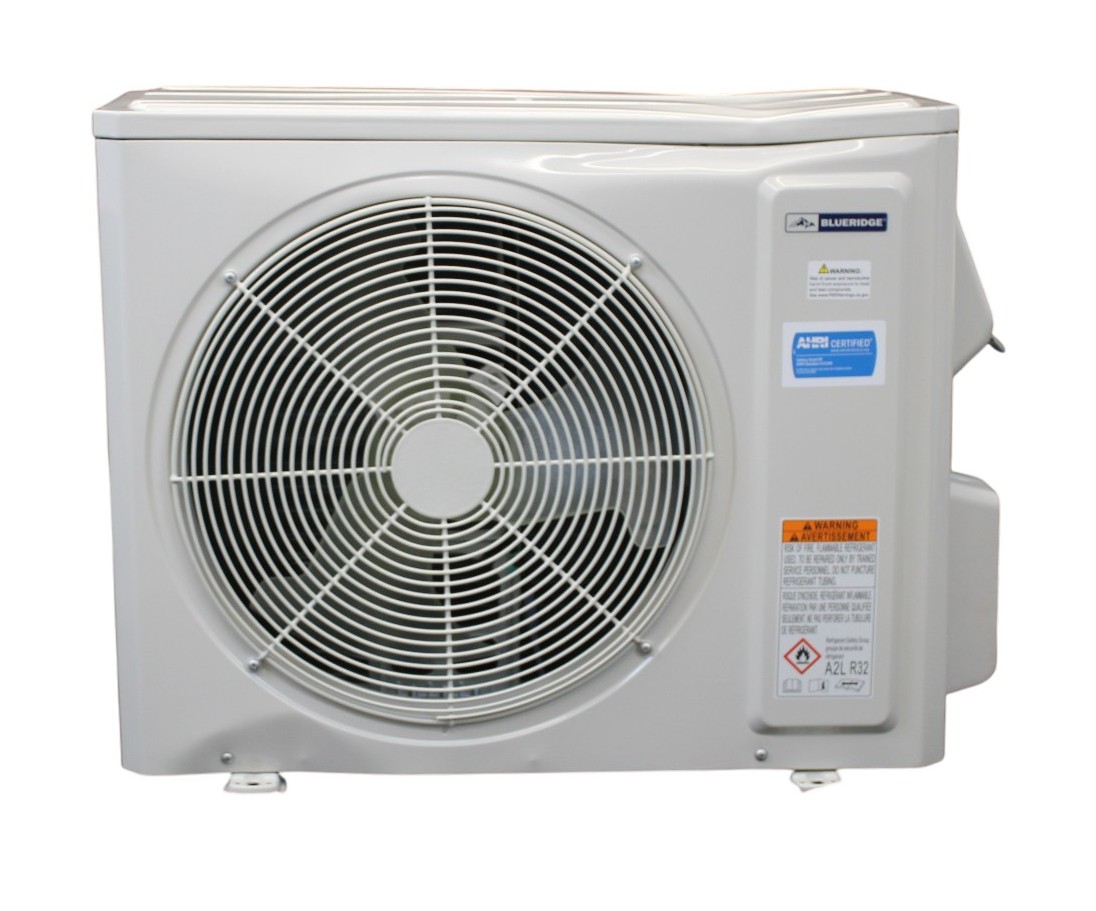

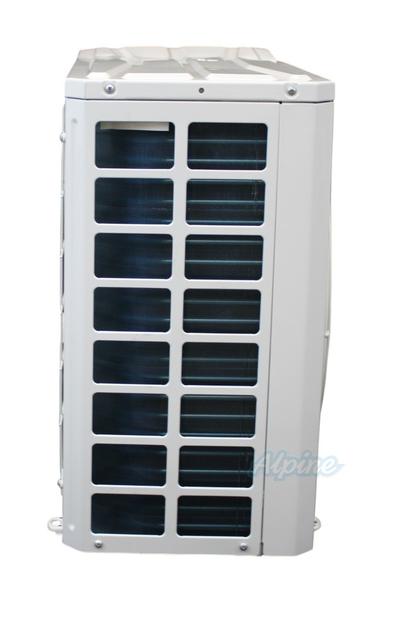

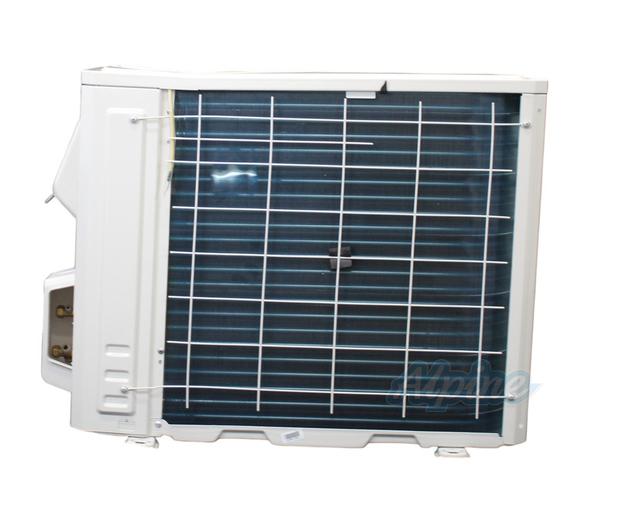

SND (BXS1Z09SC0) 9,000 BTU 18.8 SEER2 Single Zone Ductless Mini Split Outdoor Condenser

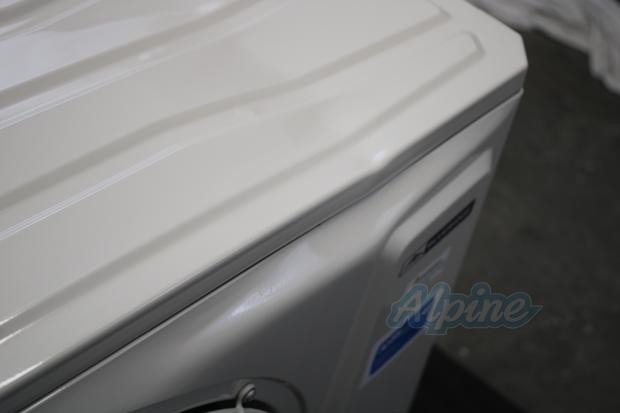

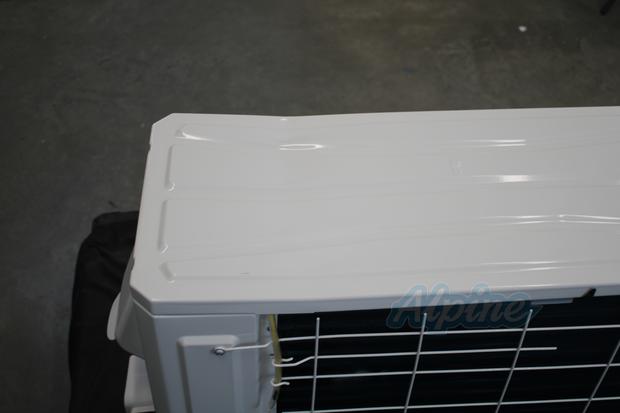

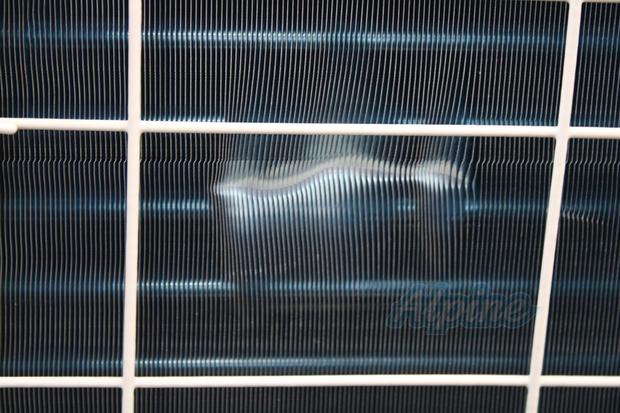

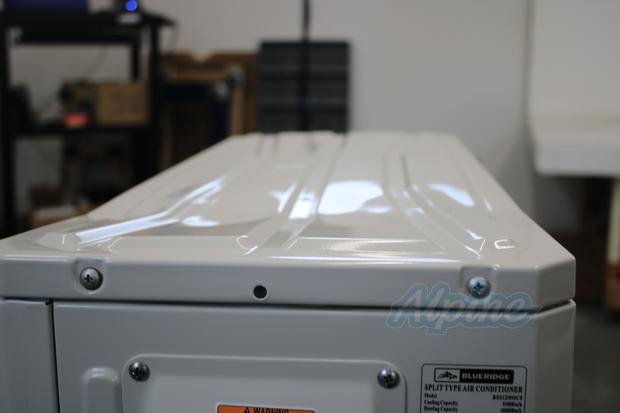

Dents to top cover and front panel. A little bit of coil damage.

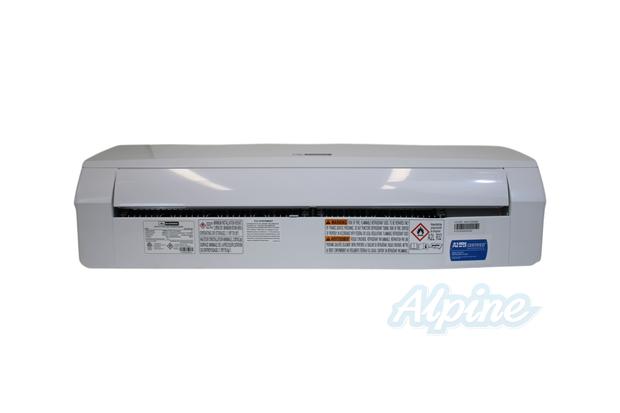

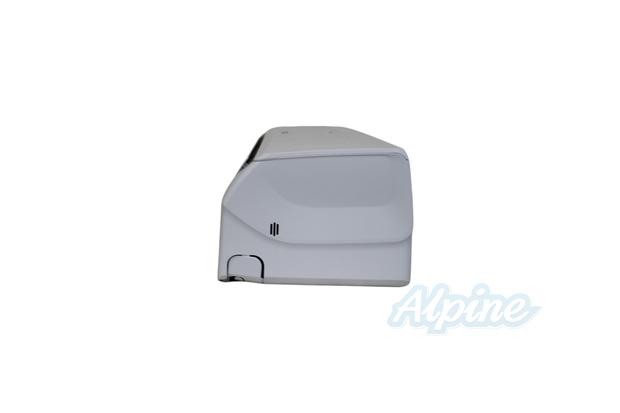

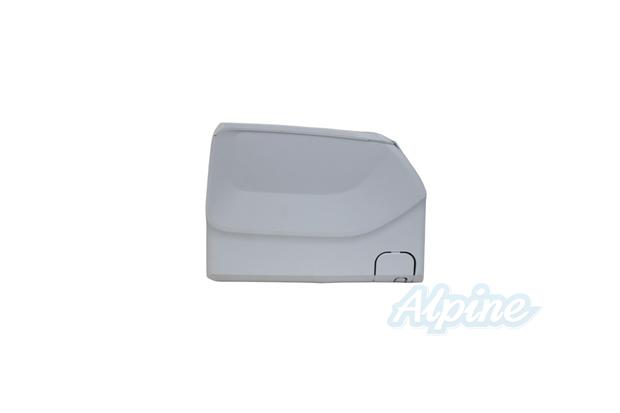

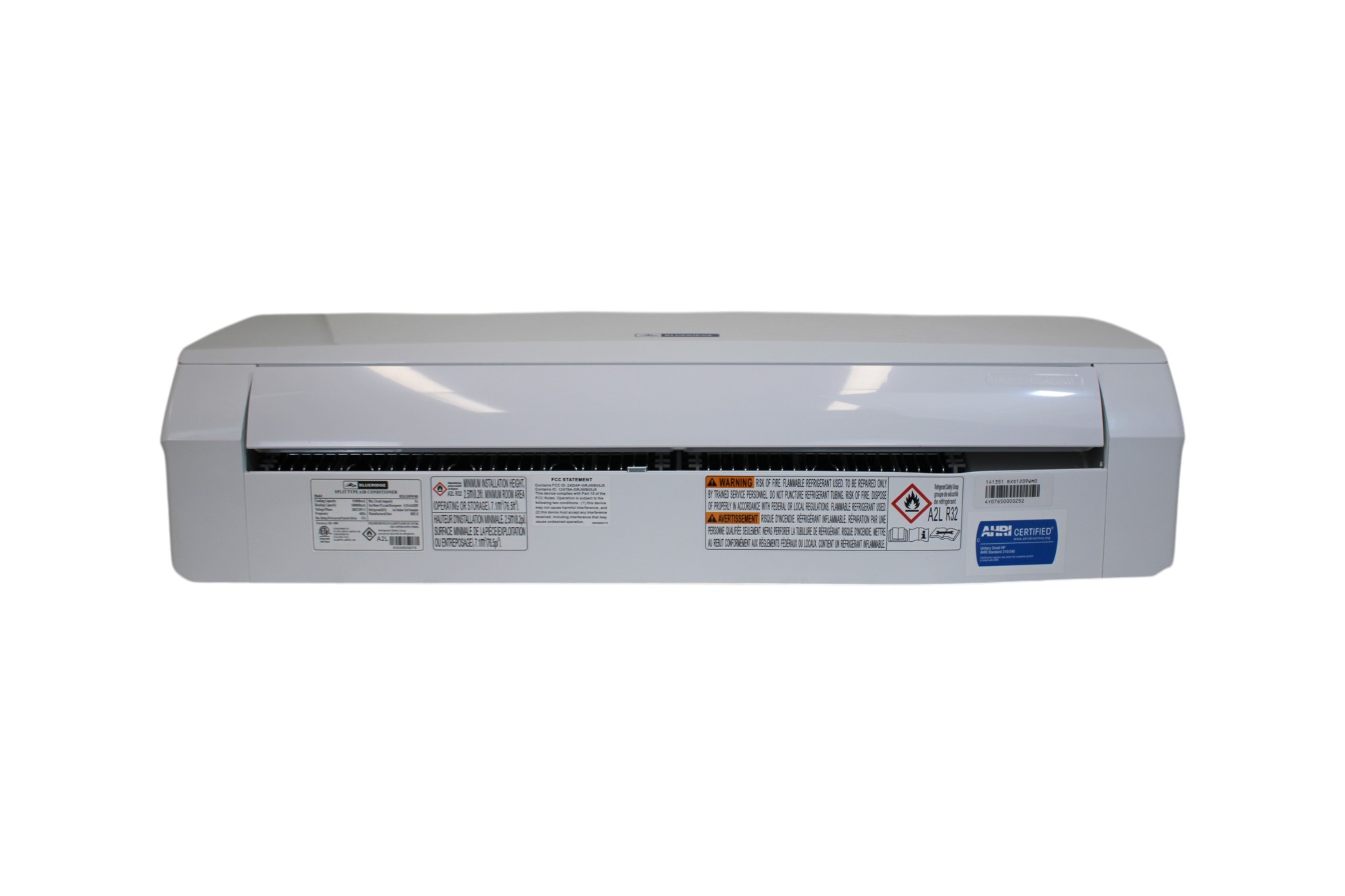

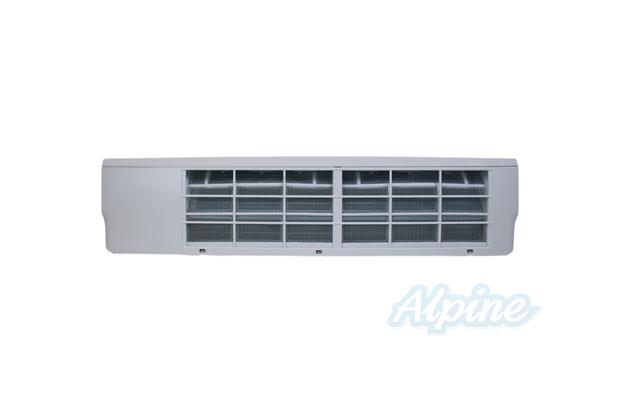

SND (BXS1Z09WM0) 9,000 BTU Wall Mounted Ductless Air Handler (1/4 LL 3/8 SL)

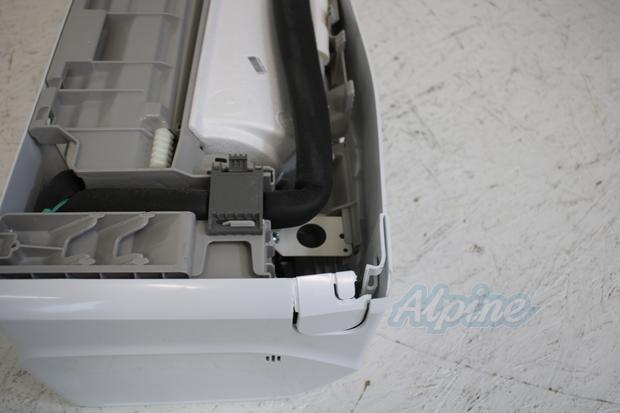

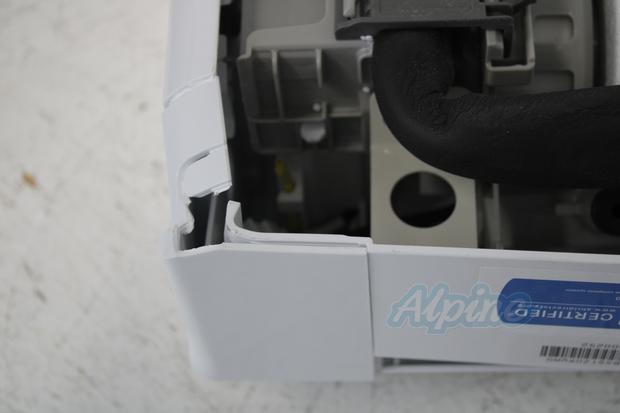

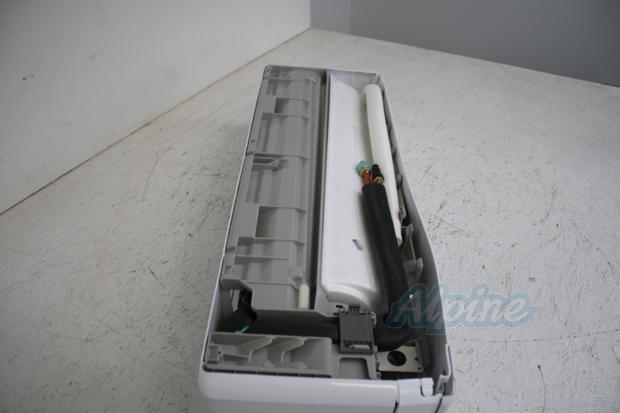

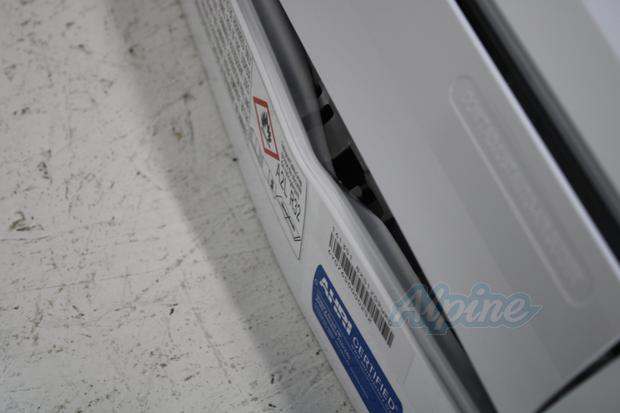

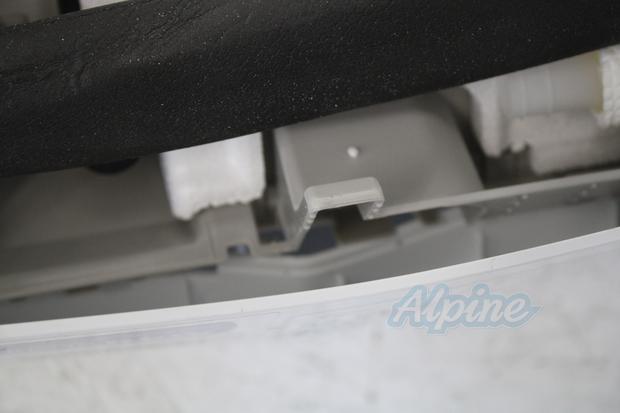

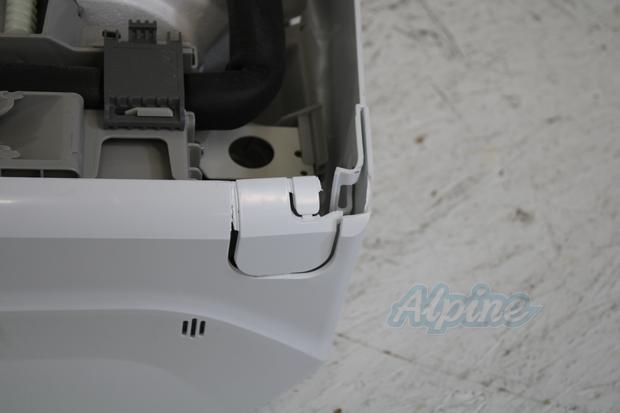

A little bit of damage to the front case and no mounting plate.
Click the links below to check each component's specifications and documentation.
This system includes:
|
|
|
|
|
SND BXS1Z09SC0
|
|
|
System Information
Mini-Split System Type
Heating / Cooling
Single Zone Mini-Split Series
XS1: Basic
Indoor Air Handler Type(s)
Wall Mount
Zones
1
Product Type
Split-System Bundle
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
Yes (Built In)
Efficiency
SEER2
18.8 SEER2
EER2
12.3 EER2
HSPF2
8.6 HSPF2
Coefficient of Performance at 5° F
1.85
Coefficient of Performance (at 47 F)
3.6 COP
Refrigerant Readiness
Primary Refrigerant
R-32
Factory Precharge
25 Feet
Mobile Home Compatible
Yes
Performance
Tonnage
0.75 Ton(s)
Low Output Cool
3070.8 BTU
Low Output Heat
2217 BTU
High Output Cool
9100 BTU
High Output Heat
10000 BTU
Stages of Heat
Inverter
Stages of Cool
Inverter
Compressor Type
Inverter
Airflow Capacity
1148 CFM
Sound Rating, Indoor
22 / 24 / 28 / 32 / 33 / 36 / 38 Decibels
Sound Rating, Outdoor
51 Decibels
Ambient Temperature Range (Cooling)
0 / 118 °F
Ambient Temperature Range (Heating)
-13 / 75 °F
Low Ambient Cooling
Yes
Lowest Ambient Temperature (Heating)
-13 °F
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
10 Amps
Maximum Fuse/Breaker
15 Amps
Line Set Information
Lineset Compatibility Code
L01
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
3/8 Inches
Line Set Connection Type
Flare
Maximum Line Length per Zone
65.6 Feet
Maximum Height Difference
49.2 Feet
Product Dimensions
Indoor Air Handler Size, W x H x D
32.80 x 10.23 x 7.56 Inches
Outdoor Condenser Size, W x H x D
28.81 x 21.84 x 12.98 Inches
Footprint Mounting Holes (W x D)
12.20 x 17.91 Inches
Outdoor Condenser Weight
55.1 Lbs
Indoor Air Handler Weight
17.6 Lbs
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
AHRI#
218003221
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
No
Qualified Manufacturer ID (QMID)
R4M0
Enjoy free shipping on any accessories purchased with the Blueridge BXS1Z09SC0-BXS1Z09WM0 SND-KIT.
