New 18,000 BTU 20.2 SEER2 Single Zone Ductless Mini Split ODU & SND 18,000 BTU Single Zone Wall Mounted Ductless Air Handler

Name: New 18,000 BTU 20.2 SEER2 Single Zone Ductless Mini Split ODU & SND 18,000 BTU Single Zone Wall Mounted Ductless Air Handler
Brand: Blueridge
SKU: 453139698
Price: 1020 USD
Availability: InStock
Rating: 4.8 (137 reviews)

(137 Reviews)

Model: Blueridge BXS2A18WM0-BXS2A18SC0 SND-KIT

(137 Reviews)

Model: Blueridge BXS2A18WM0-BXS2A18SC0 SND-KIT

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

Or as low as

Qty:

In Stock and Ready to Ship

Includes

Services

highlights
specs
accessories
reviews
free expert help
Back To Top

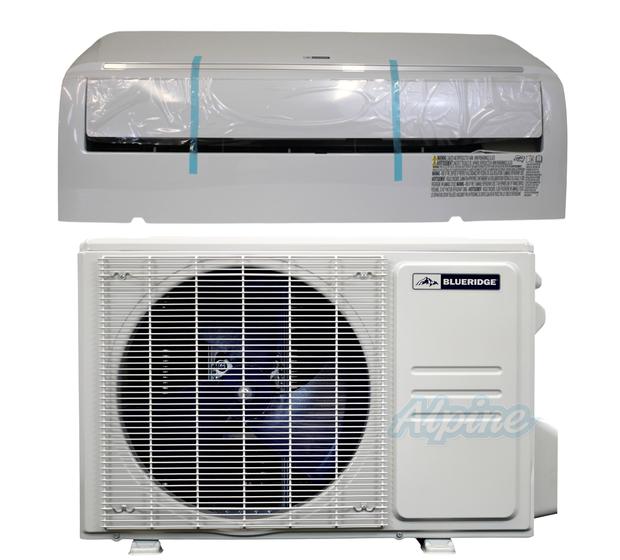

Save money with this Blueridge Scratch 'N Dent Kit! This bundle includes a Blueridge BXS2A18SC0 18,000 BTU 20.2 SEER2 Single Zone Ductless Mini Split Heat Pump Outdoor Condenser, R-454B, 220V, XS2 Series, along with a Blueridge BXS2A18WM0 18,000 BTU - R-454B - Single Zone Wall Mounted Ductless Air Handler (1/4 LL 1/2 SL). Because these items are functionally compatible we have greatly discounted this package, resulting in substantial SAVINGS for you!

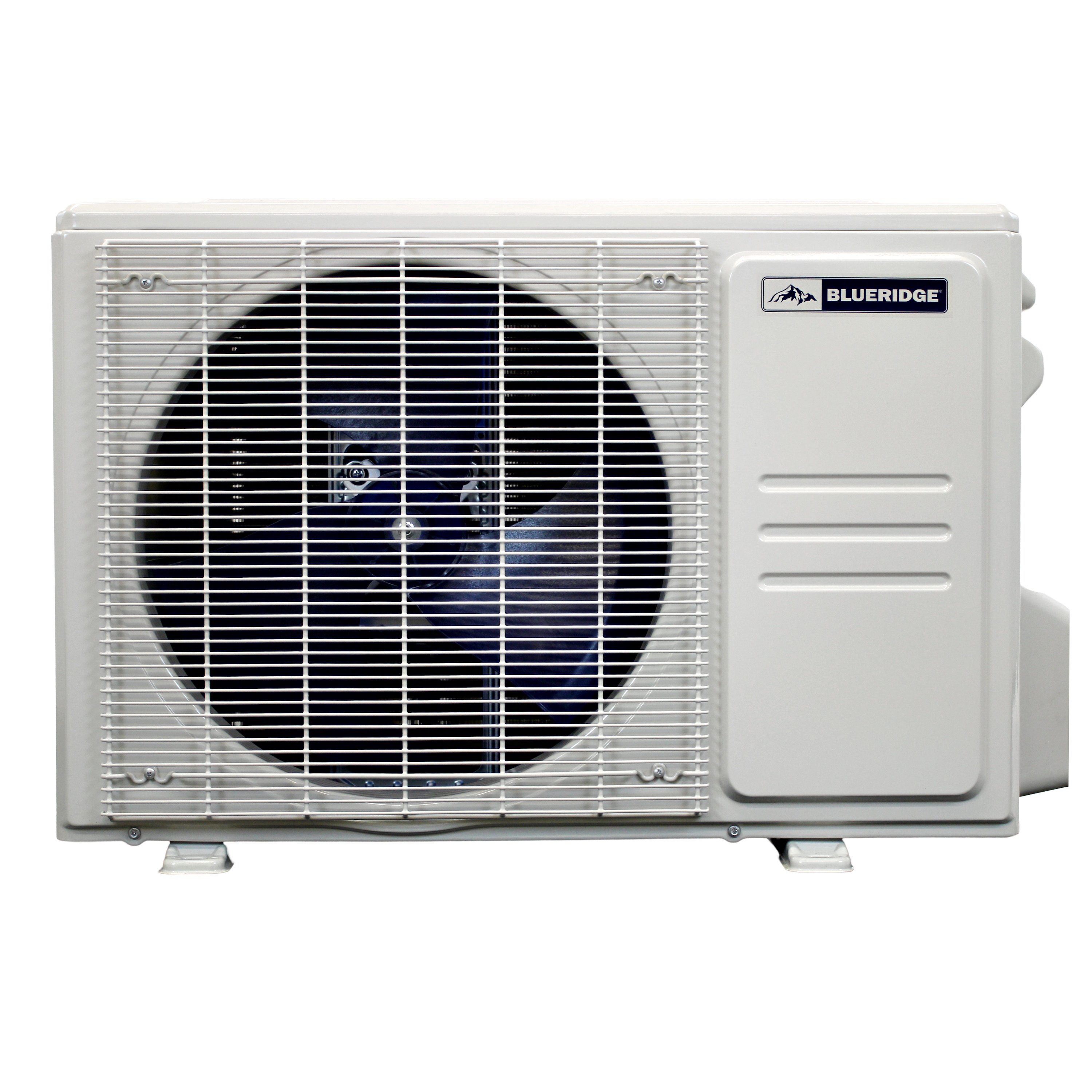

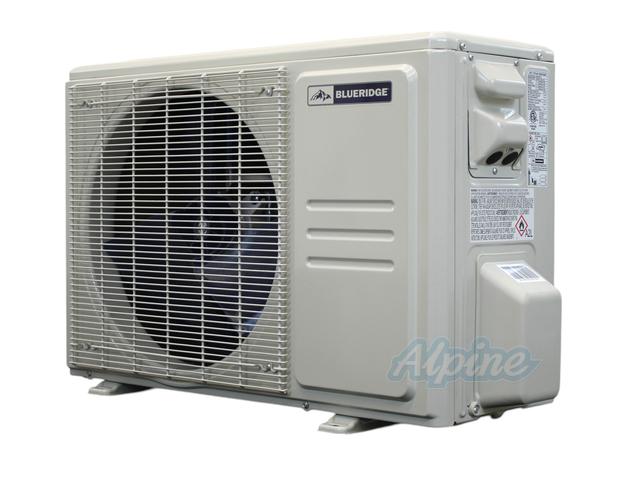

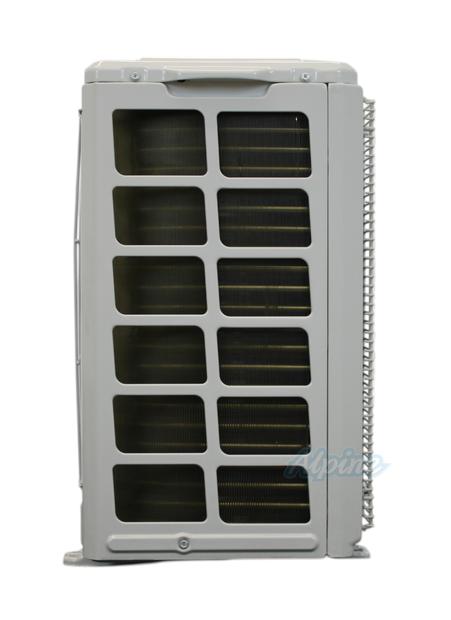

New (BXS2A18SC0) 18,000 BTU 20.2 SEER2 Single Zone Ductless Mini Split Heat Pump Outdoor Condenser, R-454B, 220V, XS2 Series

Brand New

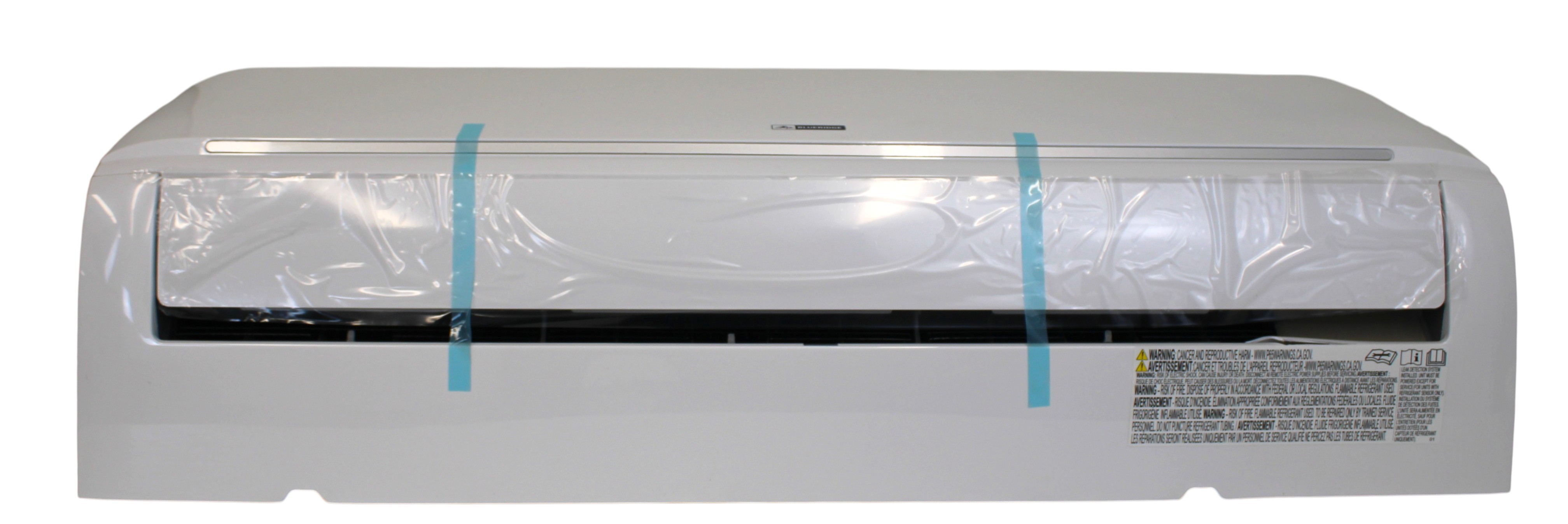

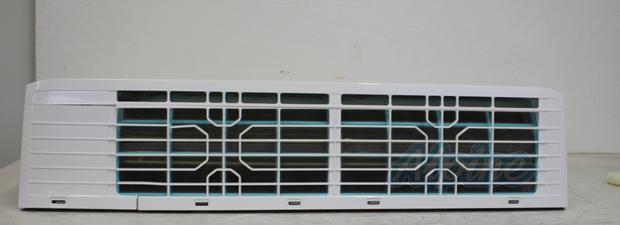

SND (BXS2A18WM0) 18,000 BTU - R-454B - Single Zone Wall Mounted Ductless Air Handler (1/4 LL 1/2 SL)

has some cosmetic damage incurred during shipping. Wall mount has damage to the chassis. Front case has broken pieces and cracks. One screw cover missing on the front frame.

Click the links below to check each component's specifications and documentation.

This system includes:

SND BXS2A18WM0

18,000 BTU - R-454B - Single Zone Wall Mounted Ductless Air Handler (1/4 LL 1/2 SL)

NEW BXS2A18SC0

18,000 BTU 20.2 SEER2 Single Zone Ductless Mini Split Heat Pump Outdoor Condenser, R-454B, 220V, XS2 Series

System Information

Mini-Split System Type

Heating / Cooling

Single Zone Mini-Split Series

XS5: All Climate +

Indoor Air Handler Type(s)

Wall Mount

Zones

Product Type

Mini Split Only

Features

WIFI (2.4GHz)

Yes (With Adapter)

Efficiency

SEER

20.2 SEER

Refrigerant Readiness

Primary Refrigerant

R-454B

Factory Precharge

25 Feet

Performance

Tonnage

1 Ton(s)

High Output Cool

12000 BTU

High Output Heat

18000 BTU

Compressor Type

Inverter

Sound Rating, Indoor

23.5 / 33.5 / 38 Decibels

Sound Rating, Outdoor

56 Decibels

Ambient Temperature Range (Cooling)

-22 / 122 °F

Ambient Temperature Range (Heating)

-22 / 75 °F

Low Ambient Cooling

Yes

Lowest Ambient Temperature (Heating)

-22 °F

Electrical Information

Voltage

208 - 230 Volts

Frequency

60 Hz

Voltage Phase

Line Set Information

Liquid Line Size (OD)

1/4 Inches

Suction Line Size (OD)

1/2 Inches

Line Set Connection Type

Flare

Maximum Line Length per Zone

82.02 Feet

Maximum Height Difference

32.81 Feet

Product Dimensions

Indoor Air Handler Size, W x H x D

31.30 x 11.61 x 8.86 Inches

Outdoor Condenser Size, W x H x D

31.5 x 21.81 x 13.11 Inches

Footprint Mounting Holes (W x D)

20.24 x 13.39 Inches

Outdoor Condenser Weight

88.2 Lbs

Indoor Air Handler Weight

22.93 Lbs

Warranty

Parts Warranty

5 Years

Compressor Warranty

7 Years

Certifications

AHRI#

No Certification

Approved for US Region(s)

North / Southeast / Southwest

ENERGY STAR® Certified
