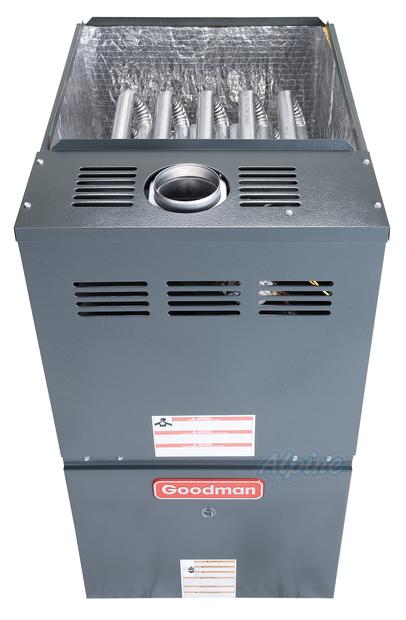

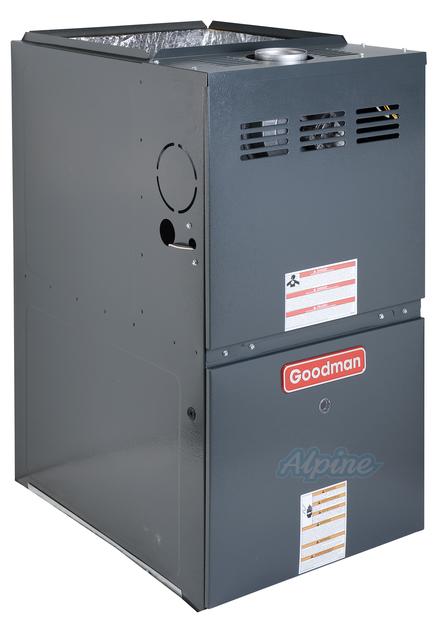

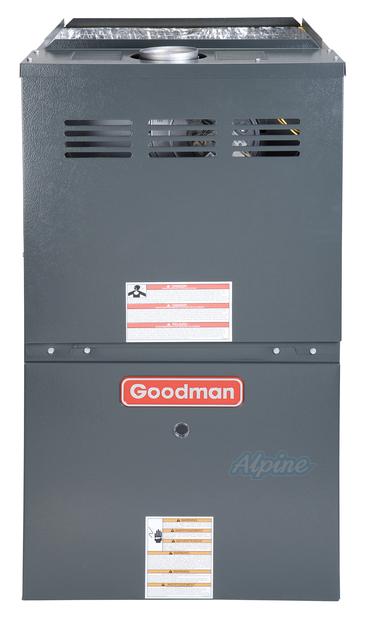

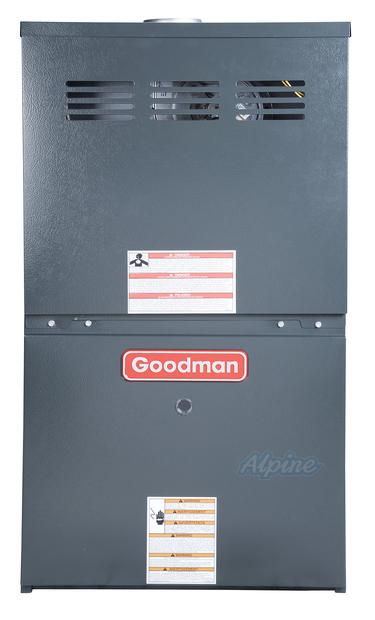

80,000 BTU Furnace, 80% Efficiency, 2 Stage Burner, 2000 CFM, Multi-Speed Upflow/Horizontal Flow Application

80,000 BTU Furnace, 80% Efficiency, 2 Stage Burner, 2000 CFM, Multi-Speed Upflow/Horizontal Flow Application

Model: Goodman GMEC800805CN

Actual product may vary from photos.

Model: Goodman GMEC800805CN

Delivers consistent reliable warmth year after year

Sturdy design for long term durability

Built for simple installation and easy maintenance

Peace of mind with 10 year warranty (with registration)

$1,170.00
Or as low as

Add to Cart for Discount

Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights
view information

This is a Horizontal / Upflow unit.

view information

To use LP fuel, this unit requires an LP Conversion Kit. See Accessories

The Goodman® GMEC8 80% AFUE Two-Stage (Convertible), Multi-Speed, Multi-Position Gas Furnace features a super-efficient X13 blower motor that saves electricity during the heating and cooling months. This new direct current motor uses less electricity than the standard multi-speed furnace blower. For example, in constant-fan mode, the X13 runs on an average of 110 watts, whereas a standard furnace multi-speed blower uses an average of 360 watts. This efficiency furnace also includes a patented aluminized-steel tubular heat exchanger and durable Silicon Nitride Hot Surface Ignition system. This Goodman gas furnace is run-tested for heating or combination heating/cooling applications. With a heavy-gauge, reinforced, insulated steel cabinet and durable baked enamel finish, this unit can be installed in a variety of locations.

Please read this Important Safety Notice

Standard Furnace Features

  • Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit (see Accessories tab).
  • X13 blower motor with brushless DC design and a permanent-magnet rotor which allows much more efficient operation furnace in both heating and cooling months
  • Patented TuffTube™ dual-diameter tubular furnace heat exchanger with lifetime limited warranty plus 10-year furnace replacement limited warranty (with online registration)

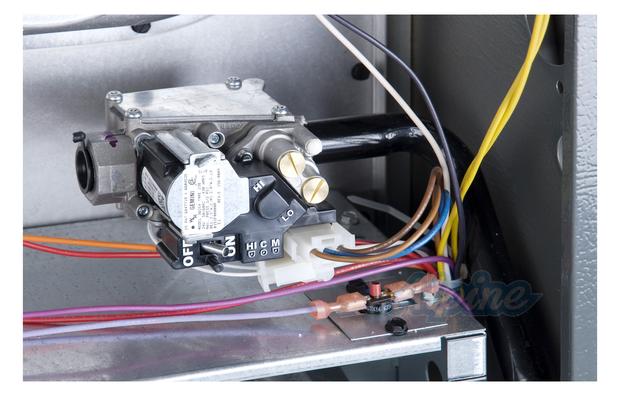

  • Heater's Two-stage gas valve with revolutionary new Dual$aver control technology allows installer to turn on two-stage operation with the flip of a dipswitch
  • Goodman Silicon Nitride igniter with patented adaptive learning routine for maximum igniter life

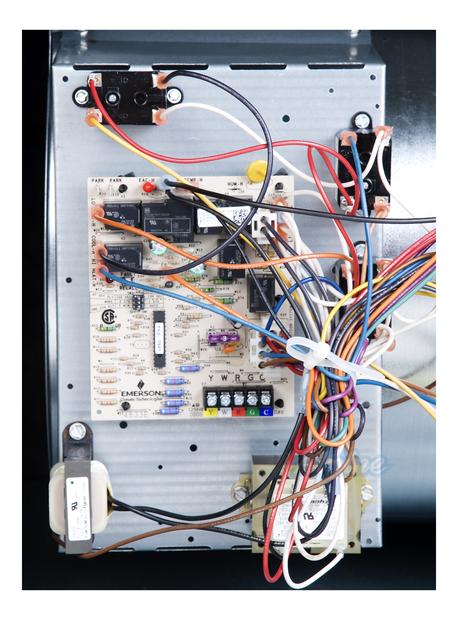

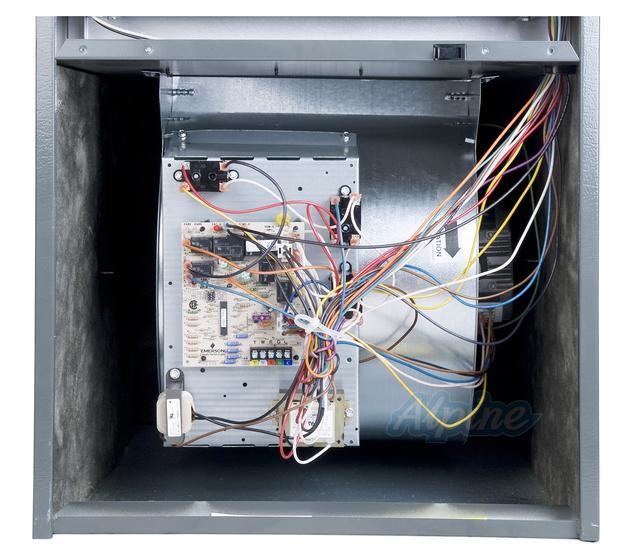

  • Integrated furnace electronic furnace control board with self-diagnostics, low-voltage terminal block, and separate terminals for electronic air cleaner and 24-volt humidifiers
  • Goodman has furnace control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan mode allows the homeowner to activate the lowest available heating speed to circulate air quietly and efficiently throughout the home during the off cycle
  • Furnaces' self-adjusting feature automatically adjusts furnace to high or low stage based on outsidetemperature without outdoor temperature sensor

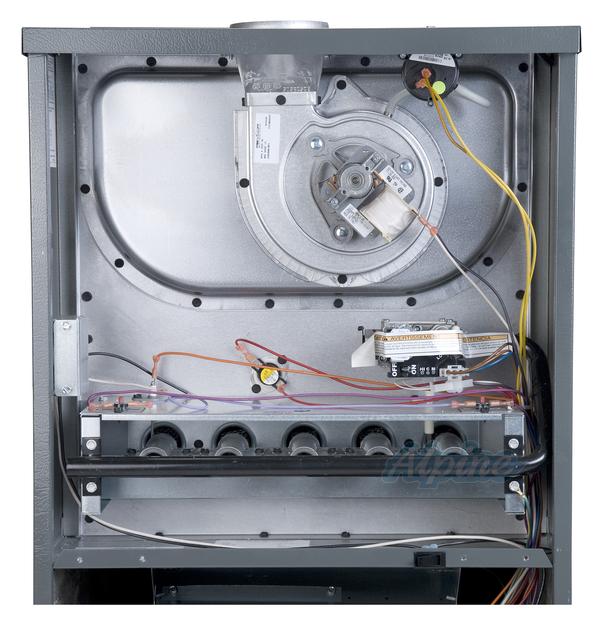

  • Quiet single-speed, induced-draft blower

Cabinet Features

  • Fully insulated, heavy-gauge steel furnace cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the furnaces' heat exchanger compartment
  • Designed for multi-position installation: upflow, horizontal left or right
  • Removable bottom for side- or bottom-return applications
  • Furnaces' convenient left or right connection versitility for gas and electric service
  • Coil and furnace fit flush for most installations
Specs
System Information
view information
Base Altitude Range
0-7000 ft.
view information
Configuration
Horizontal / Upflow
view information
Fuel Type
LP Capable (Kit Required) / Natural Gas
Efficiency
view information
Efficiency (% AFUE)
80 %
Performance
view information
Maximum Input BTU
80000 BTU
view information
Maximum Heating Capacity
64000 BTU
view information
Minimum Input BTU
56000 BTU
view information
Minimum Output BTU
44800 BTU
view information
Maximum CFM
2020 @ 0.5
view information
Blower Cooling Capacity
3 / 3.5 / 4 / 5 Tons
view information
Blower Type
High Efficiency Multi-Speed
view information
Burner Stages
Two
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Minimum Ampacity
15.32 Amps
view information
Maximum Overcurrent Protection (Breaker)
15 Amps
view information
Voltage
120 Volts
Product Dimensions
view information
Width
21.000000000 Inches
view information
Depth
28.000000000 Inches
view information
Height
33 3/8 Inches
view information
Cabinet/Chassis Size
C
Product Weight
129 lbs
Shipping Weight
129 lbs
Important Measurements
view information
Vent Connection
4 Inches
view information
Supply Air Opening Size
21 x 19 5/8 Inches
view information
Return Air Opening Size
15 x 23 inches
view information
Flue Pipe Diameter
4
Warranty
view information
Heat Exchanger Warranty
Lifetime w/ online registration
view information
Unit Replacement Warranty
10 years with online registration Years
view information
Parts Warranty
With Online Registration 10 Years
Certifications
California Only
No
view information
California Approved Furnace
No
view information
Ultra-Low NOx
No
view information
Qualifies for Govt. Money
No
view information
Emission Standard
Standard
view information
ENERGY STAR® Certified
No
