36,000 BTU 15.2 SEER2 Inverter Heat Pump/Modular Blower System
36,000 BTU 15.2 SEER2 Inverter Heat Pump/Modular Blower System

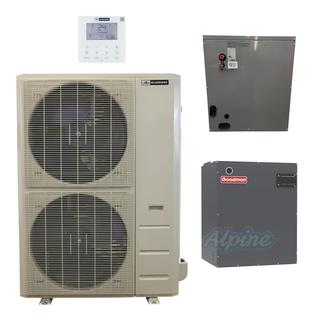

Model: Blueridge BMAH3618C-MBVB16CP1X00-BMAHC36C
Actual product may vary from photos.
Model: Blueridge BMAH3618C-MBVB16CP1X00-BMAHC36C
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$4,56900
Or as low as
Qty:
Express Pay Available
Includes
Services
- Pro Installation (Learn More)
highlights
The Blueridge Hyper Heat 36,000 BTU 15.2 SEER2 Inverter Heat Pump/Modular Blower System is a high performing, versatile, and simple heating and cooling product. This is a heat pump that can cool better than most air conditioners, heat better than virtually any other heat pump, compete with traditional furnaces in cold weather, and reduce energy consumption thanks to its sophisticated internal controls.
Versatile installation options include upflow, downflow, horizontal left, and horizontal right configurations to adapt to various home layouts.
Operating at low output levels, the system maintains consistent airflow while enhancing efficiency and optimizing air filtration when paired with media or electronic cleaners.
System Features
Inverter Compressor
Designed to run only as hard as needed to maintain optimal temperatures in your space while minimizing electrical consumption.
Energy Efficient
Experience the right airflow volume in each space with a unit that automatically adjusts based on the ducting length.
Hyper Heat Technology
Heat pump designed to operate at outdoor temperatures as low as -22 ºF, out performing most convential systems.
Third-Party Thermostat Compatibility
Experience seamless integration — without extra kits — with a built-in 24V interface that’s compatible with third-party thermostats.
Programmable Wall Controller Included
This System Includes*
 |
|---|
| Blueridge BMAH3618C x1 |
| 36,000 BTU 18 SEER2 Hyper Heat Inverter Outdoor Condenser |
 |
| Goodman MBVB16CP1X00 x1 |
| 3.5 to 4 Ton, 21" Wide, Variable Speed Modular Blower |
|
|
 |
| Blueridge BMAHC36C x1 |
| Up to 36,000 BTU Hyper Heat A-Coil |
|
|
 |
| Blueridge 17223000012024 x1 |
| Coil Kit - 24V |
 |
| Blueridge 17317100010596 x1 |
|
Wired Controller |
Also Consider
36,000 BTU 15.5 SEER2 Inverter Heat Pump/Modular Blower System
Blueridge BMAH3618C-MBVB12BP1X00-BMAHC36B
In Stock
$
5,079
00
Specs
System Information
Zones
1
System Type
Heat Pump Coil and Blower
Configuration
Downflow / Horizontal / Upflow
Factory Precharge
25 Feet
Fuel Type
Electricity
Refrigerant Compatibility
R-410A
Efficiency
Coefficient of Performance at 5° F
2.00
Energy Efficiency Ratio
10.2 EER
Energy Efficiency Ratio 2
10.0 EER2
SEER
14.8 SEER
SEER2
15.2 SEER2
Heating Seasonal Performance Factor
9.6 HSPF
Heating Seasonal Performance Factor 2
10.0 HSPF2
Performance
Ambient Temperature Range (Cooling)
122 / 5 °F
Ambient Temperature Range (Heating)
-22 / 75 °F
Base Heating Capacity
39000 BTU
Total Cooling Capacity
3 Ton(s)
Base Cooling Capacity (95F)
35000 BTU
Electric Heat Capabilities (Optional)
10 / 15 / 5 / 8 Kilowatts
Compressor Type
Inverter
Sound Rating, Outdoor
64 Decibels
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Line Set Information
Maximum Line Length per Zone
213 Feet
Maximum Height Difference
98 Feet
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Product Dimensions
Cabinet/Chassis Size
C
Pad Size
18x38 Inches
Footprint Mounting Holes (W x D)
25 x 15.9 Inches
Warranty
Compressor Warranty
7 Years
Certifications
AHRI#
215359204
Qualifies for Govt. Money
North US: Up to $2,000 / South US: Up to $2,000
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® ID
3619623
ENERGY STAR® Certified
Yes
Accessories
Enjoy free shipping on any accessories purchased with the Blueridge BMAH3618C-MBVB16CP1X00-BMAHC36C.
Required Components for Installation
Alpine Home Air Products KIT016
Basic AC Supplies Package With 8 Conductor Wire for 3/4 Inch Suction Line Systems
$7999
Alpine AG-DCT
Safety Non-Fused Electrical Disconnect
$2199
Alpine AG-WHP8
3/4 x 48 Inches, #8 Gauge Electrical Whip
$2999
Alpine MW2/035
35 Foot 18/2 Stranded Ductless Mini-Split Wire - Shielded (300 Volt)
$1999
Alpine AHMSA1
Adapter 5/16" x 1/4" for Ductless Mini-Split Systems
$1999
Refrigeration Technologies RT201B
Nylog Blue Gasket, Flare and Thread Sealant
$1199
Alpine 61280251
25 Foot 3/8 LL 3/4 SL Line Set
$16999
AC Installation Supplies
Alpine Home Air Products CW8/50
50 Feet of 8 Conductor, 18 Gauge Thermostat Wire
$2999
Alpine Home Air Products CW8/25
25 Feet of 8 Conductor, 18 Gauge Control Wire
$1999
Alpine EPS FM (2-Pack)
Noise Reducing Styrofoam Risers for Horizontal Configurations 4" x 6" x 48" (2-Pack)
$1999
Air Exchangers & Accessories
Aprilaire 8126A
Digital Control Fresh Air Ventilation System
$23999
Condensation Control
AquaGuard AG-G30x66
30" x 66" Secondary Drain Pan
$15999
DiversiTech 6-3060L
31.5" x 61.5" Secondary Drain Pan
$7999
DiversiTech ULTRACP-22
ULTRACP-22 Condensate Pump, 22 ft. Lift, 120V
$7999
Rectorseal SS2
Safe-T-Switch® Secondary Drain Line Switch
$3499
Rectorseal SS1
Safe-T-Switch® Primary and Secondary Drain Line Switch
$4199
Dehumidifiers
Honeywell DR120A3000
TrueDRY 120-Pint Per Day Dehumidifier
$2,49999
Honeywell DR65A3000
TrueDRY 65-Pint Per Day Dehumidifier
$1,79999
Honeywell DR90A3000
90-Pint Per Day Dehumidifier
$2,17999
Duct Sealant
DiversiTech 800-008
Pro-Air Duct Sealant - 1/10 Gallon Tube - 10.5 oz.
$999
DiversiTech 800-009
Pro-Air Duct Sealant - 1 Gallon Pail
$4999
Hardcast CCWI-181
Duct Sealant - 1 Gallon (Gray)
$3999
Electronic Air Cleaners (Better)
Aprilaire 5000
Combination Media and Electrostatic Whole-House Air Cleaner, 12 W x 31 D x 17 3/4 H Inch
$83999
Honeywell F300E1035
Enviracaire Whole-House Electronic Air Cleaner, 6 3/4 W x 25 1/2 D x 20 3/16H Inch
$99999
Equipment Supports
DiversiTech MP-3E (4-Pack)
(4-Pack) Vibration Isolation Blocks
$1699
Heater Coils
Goodman HKTAD051
5 Kilowatt Heat Kit with Circuit Breaker, for Goodman Modular Blowers, 208/240 Volt
$9999
Goodman HKTAD081
8 Kilowatt Heat Kit with Circuit Breaker, for Goodman Modular Blowers, 208/240 Volt
$12999
Goodman HKTAD101
10 Kilowatt Heat Kit with Circuit Breaker, for Goodman Modular Blowers, 208/240 Volt
$13999
Goodman HKTAD151
15 Kilowatt Heat Kit with Circuit Breaker, for Goodman Modular Blowers, 208/240 Volt
$24999
Media Air Cleaners (Good)
Honeywell F100F2025
Media Air Cleaner, 6 3/4W x 25 1/2D x 20 3/16H inch, MERV 11
$19999
Honeywell F100F2051
Media Air Cleaner, 6 3/4W x 22 1/2D x 25 1/8 H Inch, MERV 11
$20999
Mini-Split System Accessories
Alpine MW2/125
125 Foot 18/2 Stranded Ductless Mini-Split Wire - Shielded (300 Volt)
$5999
Alpine MW2/025
25 Foot 18/2 Stranded Ductless Mini-Split Wire - Shielded (300 Volt)
$1499
Alpine MW2/050
50 Foot 18/2 Stranded Ductless Mini-Split Wire - Shielded (300 Volt)
$2499
Alpine MW2/065
65 Foot 18/2 Stranded Ductless Mini-Split Wire - Shielded (300 Volt)
$2999
Blueridge BY-30
Adjustable Steel Wall Bracket for w/ 30 inch long arms Ductless Mini Splits, 660 lbs Capacity
$7999
Blueridge BY650
Blueridge Adjustable Wall Bracket w/ 25.5 inch long arms for Ductless Mini Splits, 440 lbs Capacity
$5999
Blueridge BGF-620
Slab Stand for Ductless Mini-Split Condensers, 660 lbs Weight Capacity
$13999
Blueridge BR1838
Blueridge BR1838 18x38x3 in. Air Conditioning Condenser Pad
$4999
DiversiTech 230-MB17CW
(2-Pack) 17" Mounting Blocks with End Caps for Ductless Mini-Split Air Conditioner and Heat Pump Condensers
$4400
DiversiTech EL2436-3
E-Lite 24" x 36" x 3" Mini-Split Condenser Pad
$7999
Mersen STXH240S05
STXH240S05 Type 1 50kA 240/120V Split Phase Surge Protector
$9999
Return Air Plenums
Alpine SBFD36
36 Inch Wide Return Air Support Box With Filter Slot
$34999
Sheet Metal Transition Kits
Alpine Home Air Products KIT081T
Sheet Metal Transition Kit With Sheet Metal Bender
$9998
Standard Split System Line Sets
Alpine 61280351
35 Foot 3/8 LL 3/4 SL Line Set
$23999
Alpine 61280501
50 Foot 3/8 LL 3/4 SL Line Set
$30999
Steam Humidifiers
Aprilaire 800
Up to 34.6 GPD, Aprilaire 800 Canister Steam Humidifier with Digital Humidifier Control, 120 / 208 / 240 Volt
$99999
Aprilaire 865
Up to 34.6 GPD, Aprilaire 865 Canister Steam Humidifier with Digital Humidifier Control, 120 / 208 / 240 Volt
$1,46999
GeneralAire 5500
Up to 28 GPD, GeneralAire 5500 Steam Humidifier with Digital Humidifier Control, 115 / 230 Volt
$95999
Supply Air Plenums
Alpine PLN122
Supply Plenum 20 x 20 x 30 Inches
$12499
Thermostats
Cielo Smart Thermostat Eco (White)
Cielo Smart Thermostat Eco (White) - Smart Wi-Fi Air Conditioner Controller (Works with Alexa and Google Assistant)
$11999
Cielo Smart Thermostat Eco (Black)
Cielo Smart Thermostat Eco (Black) - Smart Wi-Fi Air Conditioner Controller (Works with Alexa and Google Assistant)
$11999
Honeywell TH6320WF2003
Lyric T6 Pro Wi-Fi Programmable Thermostat with stages up to 3 Heat/2 Cool Heat Pump or 2 Heat/2 Cool (compatible with Alexa and Google Assistant)
$21499
Honeywell TH8321WF1001
Wi-Fi VisionPRO 8000, 3 Stage Heat / 2 Stage Cool, Digital Thermostat (Compatible with Alexa and Google Assistant)
$27499
Tools
DiversiTech 640-UL25
DiversiTech 640-UL25 Foil Tape
$3499
DiversiTech T-100
Multi-Head Fin Comb
$1499
Ultraviolet Purifiers & Replacement Parts
Honeywell UV100A1059
UV Surface or Air Treatment CoilPlus Irradiation System
$25999
Honeywell UV100E1043
Single Lamp UV Air Purifier - Mounts on Return Air Duct
$43999
Documents
Blueridge BMAH3618 Submittal Sheet(PDF, 1.30 MB)- Blueridge Ultra Efficient Heat Pump Warranty(PDF, 180 KB)
- Wire Gauge Sizes(PDF, 40.9 KB)
- Blueridge BMAH ODU Only Install Instructions(PDF, 9.94 MB)
- Blueridge BMAH Evap Coil Adpater Install Manual(PDF, 4.58 MB)
- Blueridge 17317100010596 120N Install Manual(PDF, 12.5 MB)
- Goodman Air Handler Warranty(PDF, 675 KB)
- MBVB Spec Sheet(PDF, 958 KB)
- Blueridge BMAH Evap Coil Install Manual 11/24(PDF, 2.16 MB)
- MBVB Install Manual(PDF, 1.86 MB)
